KNX radio wall-transmitter 2gang flat quicklink, K.5, al., matt, lacq. 85656277
EAN
4011334382232
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Cover frame for domestic switching devices 9 products available
Complete your system
-
13137003
Frame 1gang, K.5, al., al. anodised
-
13237003Frame 2gang vert., K.5, al., al. anodised
-
13637003Frame 2gang hor., K.5, al., al. anodised
-
13737003Frame 3gang hor., K.5, al., al. anodised
-
13837003Frame 4gang hor., K.5, al., al. anodised
-
13937003Frame 5gang hor., K.5, al., al. anodised
-
13337003Frame 3gang vert., K.5, al., al. anodised
-
13437003Frame 4gang vert., K.5, al., al. anodised
-
13537003Frame 5gang vert., K.5, al., al. anodised
Technical properties
Settings
-
Supported configuration modequicklink
Voltage
-
Operating voltage3 - 3 V
Equipment
-
Number of channels4
-
Transmitter duty cycle1 %
Connectivity
-
Radio protocolKNX Radio
-
Receiver category2
Use conditions
-
Operating temperature-5 - 45 °C
Dimensions
-
Assembling height14 mm
Materials
-
ColourAluminium
-
MaterialThermoplastic
Safety
-
Ingress Protection (IP) classIP20
Texts
-
FunctionEasy additional functions: +6 scenes, on/off operating mode, 1 up/down button control, Reset function (to factory setting)
-
ProtectionWith dismantling protection
-
Installation modeFor flat surface mounting and extension of combinations
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

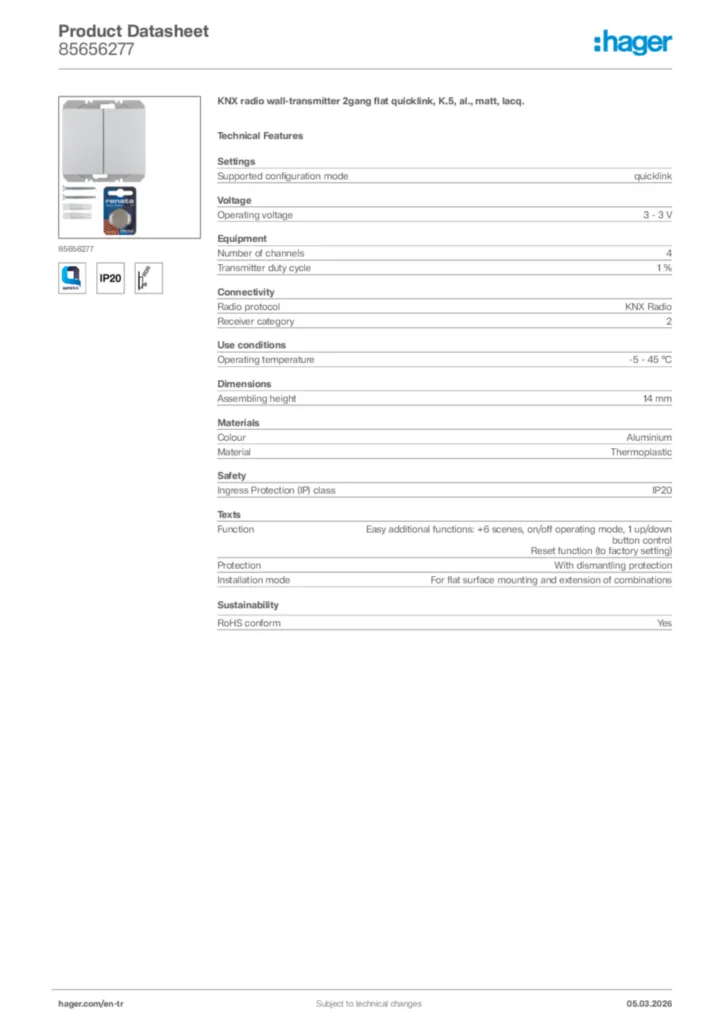

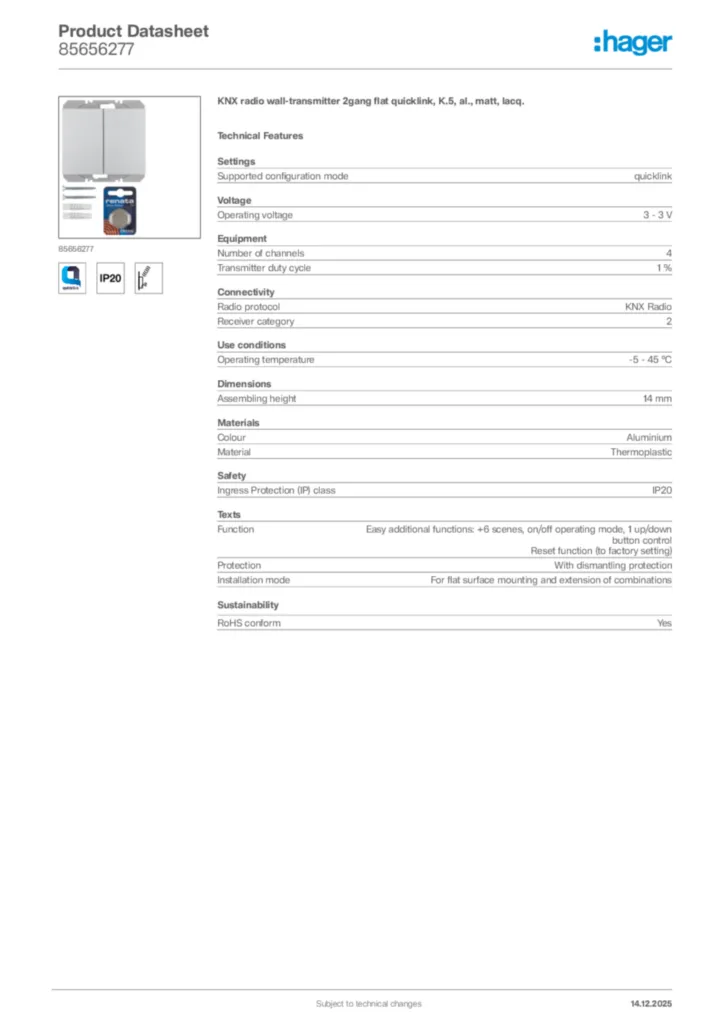

Product datasheet
Hager Product data sheet 85656277
KNX radio wall-transmitter 2gang flat quicklink, K.5, al., matt, lacq.
PDF -
Installation manual
Manual for 856552xx, 856562xx, 856551xx and 856561xx - KNX radio wall-transmitter 1-/2gang flat/solar quicklink (EN, 2012-08)
Installation manual en-GB, pl-PL 2012-03-19
PDF1,26 MB -
KNX product database
KNX Database (from ETS3) for 856561xx-856562xx - KNX radio wall-transmitter 2gang flat quicklink (V101)
KNX product database International 2020-01-01
VD514,65 MB
KNX Database (from ETS4) for 856561xx-856562xx - KNX radio wall-transmitter 2gang flat quicklink (V101)
KNX product database International 2020-01-01
KNXPROD12,25 MB -
Application Guide
Application description ETS for 856551xx-856552xx-856561xx-856562xx - KNX radio wall-transmitter flat quicklink (EN, vers. 6T8010-52A)
Application Guide en-GB, pl-PL 2013-01-16
PDF1,34 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-09-14
PDF306,69 kB
Declaration of Conformity
Declaration of conformity International 2021-09-14
PDF307,99 kB
