Rocker, lab. field, lens, K.5, al., al. anodised 14157103
EAN
4011334377849
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Optional accessories
-
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 45 products available
Referenced by
-
13437003Frame 4gang vert., K.5, al., al. anodised
-
13737004Frame 3gang hor., K.5, stainless steel, metal matt finish
-
13637004Frame 2gang hor., K.5, stainless steel, metal matt finish
-
13837004Frame 4gang hor., K.5, stainless steel, metal matt finish
-
13437004Frame 4gang vert., K.5, stainless steel, metal matt finish
-
13537004Frame 5gang vert., K.5, stainless steel, metal matt finish
-
5036Push-button change-over contact illuminated
-
10107100
Sealing set for switches/push-buttons, K.x/Q.x, trans.
-
3036Change-over switch 10AX 250V~, Light control
-
13337004Frame 3gang vert., K.5, stainless steel, metal matt finish
-
13537003Frame 5gang vert., K.5, al., al. anodised
-
13337003Frame 3gang vert., K.5, al., al. anodised
-
13937003Frame 5gang hor., K.5, al., al. anodised
-
13837003Frame 4gang hor., K.5, al., al. anodised
-
13737003Frame 3gang hor., K.5, al., al. anodised
-
13637003Frame 2gang hor., K.5, al., al. anodised
-
13537006Frame 5gang vert., K.1, ant. matt, lacq.
-
13437006Frame 4gang vert., K.1, ant. matt, lacq.
-
13337006Frame 3gang vert., K.1, ant. matt, lacq.
-
13937006Frame 5gang hor., K.1, ant. matt, lacq.

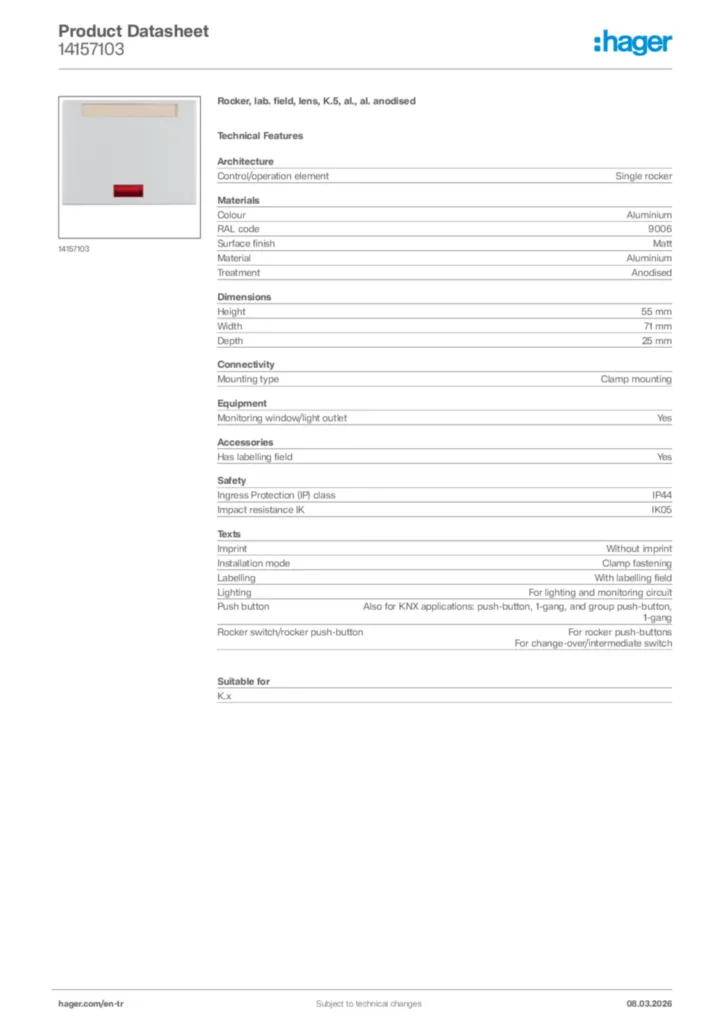

Technical properties
Architecture
-
Control/operation elementSingle rocker
Materials
-
ColourAluminium
-
RAL code9006
-
Surface finishMatt
-
MaterialAluminium
-
TreatmentAnodised
Dimensions
-
Height55 mm
-
Width71 mm
-
Depth25 mm
Connectivity
-
Mounting typeClamp mounting
Equipment
-
Monitoring window/light outletYes
Accessories
-
Has labelling fieldYes
Safety
-
Ingress Protection (IP) classIP44
-
Impact resistance IKIK05
-
Related SystemsK.x
