Rocker push-button NO contact Module insert 5031
EAN
4011334030294
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See All (77)
Optional accessories
-
Illumination insert for domestic switching devices 1 products available
Compatible products
-
Referenced by 330 products available
Accessories mandatory
-
16968989Rocker , l.lab. field, lens, S.1/B.3/B.7, p. white glossy
-
16212049Rocker imprint "Heizung ", clearlens, R.1/R.3, p. white glossy
-
16261404Rocker, lab. field, B.7, al., matt, lacq.
-
16261606Rocker, lab. field, B.3/B.7, ant., matt
-
16261909Rocker, lab. field, S.1/B.3/B.7, p. white, matt, plastic
-
16268989Rocker, lab. field, S.1/B.3/B.7, p. white glossy
-
16216079Rocker imprinted symbol for light, lens, Q.1/Q.3, p. white velvety
-
16288982Rocker, lab. field, lens, S.1, white glossy
-
16961404Rocker , l.lab. field, lens, B.7, al., matt, lacq.
-
16961606Rocker , l.lab. field, lens, B.3/B.7, ant., matt
-
16961909Rocker , l.lab. field, lens, S.1/B.3/B.7, p. white, matt, plastic
-
16206089Rocker, Q.x, p. white velvety
-
16201909Rocker, S.1/B.3/B.7, p. white, matt, plastic
-
16208989Rocker, S.1/B.3/B.7, p. white glossy
-
16216089Rocker, lens, Q.x, p. white velvety
-
16281404Rocker, lab. field, lens, B.7, al., matt, lacq.
-
16281606Rocker, lab. field, lens, B.3/B.7, ant., matt
-
16281909Rocker, lab. field, lens, S.1/B.3/B.7, p. white, matt, plastic
-
16288989Rocker, lab. field, lens, S.1/B.3/B.7, p. white glossy
-
16206084Rocker, Q.x, aluminium velvet, lacquered
Referenced by
-
10128982Frame 2gang, S.1, white glossy
-
16216089
Rocker, lens, Q.x, p. white velvety
-
16288989
Rocker, lab. field, lens, S.1/B.3/B.7, p. white glossy
-
16206084
Rocker, Q.x, aluminium velvet, lacquered
-
16206086Rocker, Q.x, ant. velvety, lacq.
-
16206089
Rocker, Q.x, p. white velvety
-
13096089Frame l. cut-out, Q.1, p. white velvety
-
10158982Frame 5gang, S.1, white glossy
-
10158989Frame 5gang, S.1, p. white glossy
-
10159909Frame 5gang, S.1, p. white, matt, plastic
-
13098989Frame l. cut-out, S.1, p. white glossy
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10128989Frame 2gang, S.1, p. white glossy
-
10129909Frame 2gang, S.1, p. white, matt, plastic
-
10148982Frame 4gang, S.1, white glossy
-
10148989Frame 4gang, S.1, p. white glossy
-
10149909Frame 4gang, S.1, p. white, matt, plastic
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
-
10228919Frame 2gang hor., lab. field, S.1, p. white glossy
Technical properties
Electric current
-
Switching current10 A
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Frequency
-
Frequency50 - 60 Hz
Architecture
-
Control/operation elementRocker
-
Number of poles1
Materials
-
MaterialMetal, Plastic
-
TransparentNo
Dimensions
-
Height70.80 mm
-
Width70.80 mm
-
Depth41.60 mm
-
Built-in depth30 mm
-
Built-in depth flush-mounted boxes35 mm
Installation, mounting
-
Mounting onFlush mounting
Controls and indicators
-
Number of buttons1
-
Type of push buttonSingle push button
-
With feedback signal contactNo
Safety
-
Ingress Protection (IP) classIP20
-
Impact resistance IKIK07
Accessories
-
Has labelling fieldNo
-
Related SystemsK.x, Q.x, R.x, S.x/B.x
Downloads
-

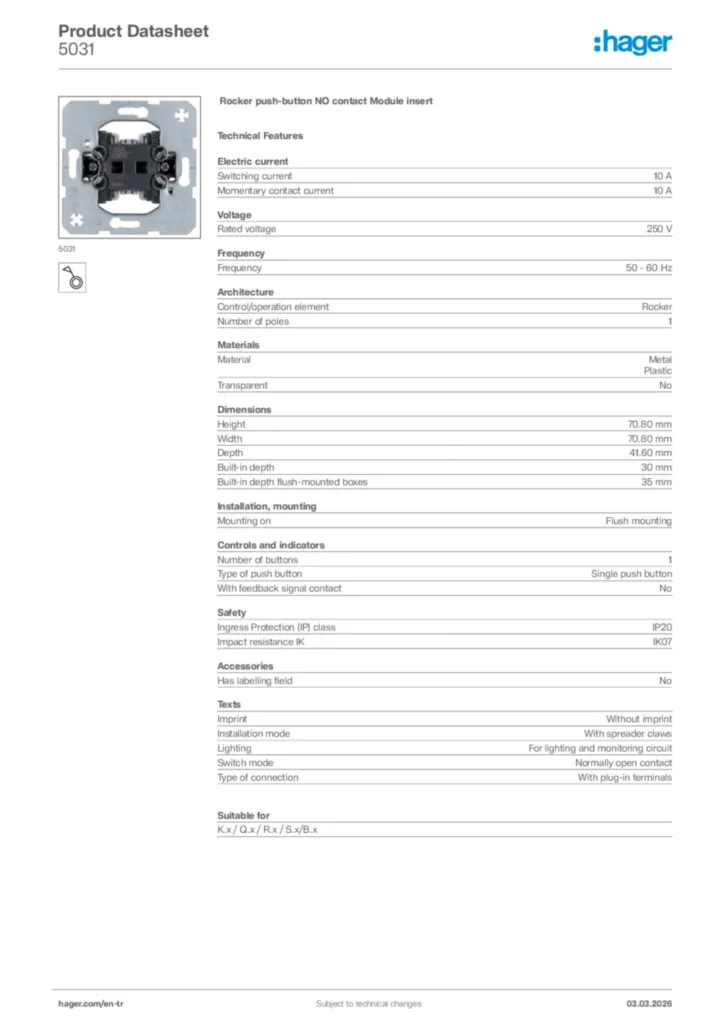

Product datasheet
Hager Product data sheet 5031
Rocker push-button NO contact Module insert
PDF -
Declaration of conformity
EU Declaration of Conformity
dc24-1015
PDF334,72 kB
More documentation
