    Change-over switch 10AX 250V~, Light control 3036

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Change-over switch 10AX 250V~, Light control

    3036

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Must-have accessories

    See All (73)
    Previous
    Previous
    16202069
    16202069
    Rocker imprinted symbol for bell, R.1/R.3, p. white glossy
    Add to a list
    Add to a list
    16211404
    16211404
    Rocker, lens, B.7, al., matt, lacq.
    Add to a list
    Add to a list
    16211606
    16211606
    Rocker, lens, B.3/B.7, ant., matt
    Add to a list
    Add to a list
    16211909
    16211909
    Rocker, lens, S.1/B.3/B.7, p. white, matt, plastic
    Add to a list
    Add to a list

    Optional accessories

    • Illu­min­a­tion insert for domestic switching devices 1 products available

    Compatible products

    • Referenced by 336 products available

    Accessories mandatory

    • 16202025

      Rocker imprinted symbol for bell, R.1/R.3, black glossy
      0.00 €  / *
    • 14157003

      Rocker, lens, K.5, al., al. anodised
      0.00 €  / *
    • 16211404

      Rocker, lens, B.7, al., matt, lacq.
      0.00 €  / *
    • 16211606

      Rocker, lens, B.3/B.7, ant., matt
      0.00 €  / *
    • 16211909

      Rocker, lens, S.1/B.3/B.7, p. white, matt, plastic
      0.00 €  / *
    • 16218982

      Rocker, lens, S.1, white glossy
      0.00 €  / *
    • 16218989

      Rocker, lens, S.1/B.3/B.7, p. white glossy
      0.00 €  / *
    • 14267004

      Rocker, lab. field, K.5, stainless steel, metal matt finish
      0.00 €  / *
    • 14267003

      Rocker, lab. field, K.5, al., al. anodised
      0.00 €  / *
    • 14267009

      Rocker, lab. field, K.1, p. white glossy
      0.00 €  / *
    • 16206049

      Rocker imprinted symbol for light, Q.x, p. white velvety
      0.00 €  / *
    • 16202069

      Rocker imprinted symbol for bell, R.1/R.3, p. white glossy
      0.00 €  / *
    • 16202045

      Rocker, R.1/R.3, black glossy
      0.00 €  / *
    • 16202089

      Rocker, R.1/R.3, p. white glossy
      0.00 €  / *
    • 16208982

      Rocker, S.1/B.3/B.7, white glossy
      0.00 €  / *
    • 16201404

      Rocker, S.1/B.3/B.7, al., matt, lacq.
      0.00 €  / *
    • 16201606

      Rocker, S.1/B.3/B.7, ant., matt
      0.00 €  / *
    • 14967004

      Rocker , l.lab. field, lens, K.5, stainless steel matt, lacq.
      0.00 €  / *
    • 14967003

      Rocker , l.lab. field, lens, K.5, al., matt, lacq.
      0.00 €  / *
    • 14967006

      Rocker , l.lab. field, lens, K.1, ant. matt, lacq.
      0.00 €  / *

    Complete your system

    • Illu­min­a­tion insert for domestic switching devices
    • 1675

      Neon lamp unit N terminal, light control, grey
      0.00 €  / *

    Referenced by

    • 10128982

      Frame 2gang, S.1, white glossy
      0.00 €  / *
    • 10136096

      Frame 3gang, Q.3, ant. velvety, lacq.
      0.00 €  / *
    • 16288989

      Rocker, lab. field, lens, S.1/B.3/B.7, p. white glossy
      0.00 €  / *
    • 16206084

      Rocker, Q.x, aluminium velvet, lacquered
      0.00 €  / *
    • 16206086

      Rocker, Q.x, ant. velvety, lacq.
      0.00 €  / *
    • 16206089

      Rocker, Q.x, p. white velvety
      0.00 €  / *
    • 13096089

      Frame l. cut-out, Q.1, p. white velvety
      0.00 €  / *
    • 10158982

      Frame 5gang, S.1, white glossy
      0.00 €  / *
    • 10158989

      Frame 5gang, S.1, p. white glossy
      0.00 €  / *
    • 10159909

      Frame 5gang, S.1, p. white, matt, plastic
      0.00 €  / *
    • 13098989

      Frame l. cut-out, S.1, p. white glossy
      0.00 €  / *
    • 10238919

      Frame 3gang hor., lab. field, S.1, p. white glossy
      0.00 €  / *
    • 10128989

      Frame 2gang, S.1, p. white glossy
      0.00 €  / *
    • 10129909

      Frame 2gang, S.1, p. white, matt, plastic
      0.00 €  / *
    • 10139909

      Frame 3gang, S.1, p. white, matt, plastic
      0.00 €  / *
    • 10148982

      Frame 4gang, S.1, white glossy
      0.00 €  / *
    • 10148989

      Frame 4gang, S.1, p. white glossy
      0.00 €  / *
    • 10149909

      Frame 4gang, S.1, p. white, matt, plastic
      0.00 €  / *
    • 10128919

      Frame 2gang vert., lab. field, S.1, p. white glossy
      0.00 €  / *
    • 10138919

      Frame 3gang vert., lab. field, S.1, p. white glossy
      0.00 €  / *

    Technical properties

    Elec­tric current
    • Switching current
      10 AX (100W LED (SBL))
    • Rated current
      10 A
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    Voltage
    • Rated voltage
      250 V
    Frequency
    • Frequency
      50 - 60 Hz
    Mater­ials
    • Surface finish
      Matt
    • Material
      Metal, Plastic
    Iden­ti­fic­a­tion
    • Assembly arrange­ment
      Basic element
    Connectivity
    • Mounting type
      Claw mounting
    Controls and indic­ators
    • Number of buttons
      1
    Dimen­sions
    • Built-in depth
      31 mm
    • Built-in depth flush-­mounted boxes
      35 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    • Impact resist­ance IK
      IK07
    Archi­tec­ture
    • Control/­op­er­a­tion element
      Single rocker
    Texts
    • Install­a­tion mode
      With spreader claws, For screw fastening
    • Type of connec­tion
      With plug-in terminals
    • Lighting
      For lighting and monit­oring circuit
    • Switch mode
      Off/change-over

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    Halogen free Yes

    Certifications and documents

    2 way switch gallery InterBP with neutral 2 modules
    PDF
    28,95 MB
    Hager REACH declaration 3036
    PDF
    Hager RoHS report 3036
    PDF

    Downloads

    • Image 3036 | Hager

      Product Image 3036

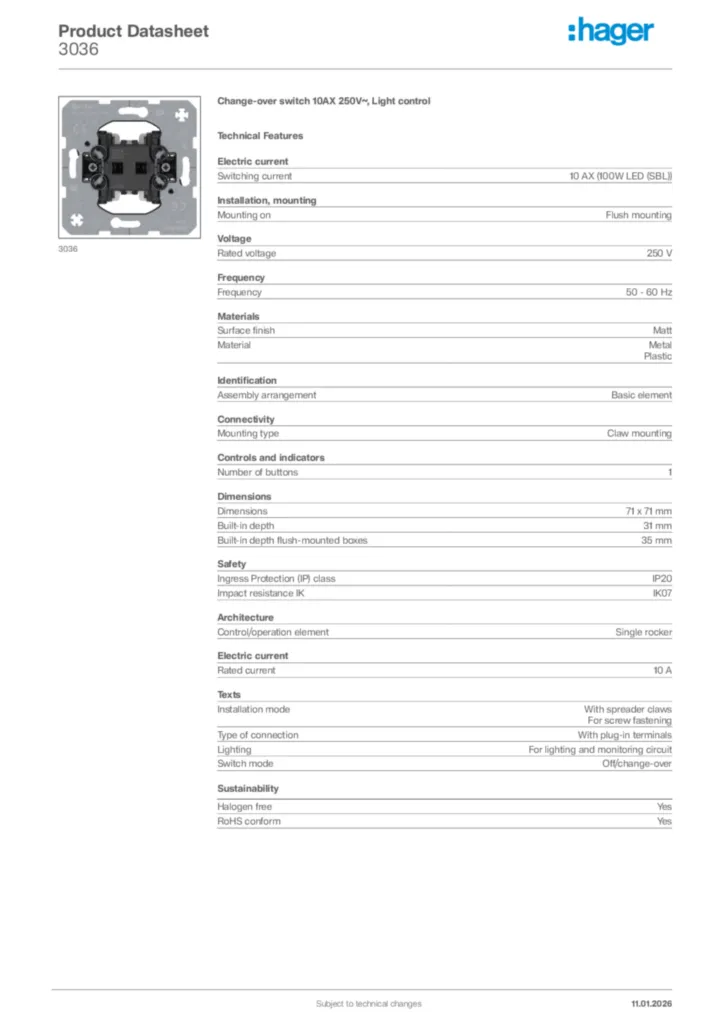

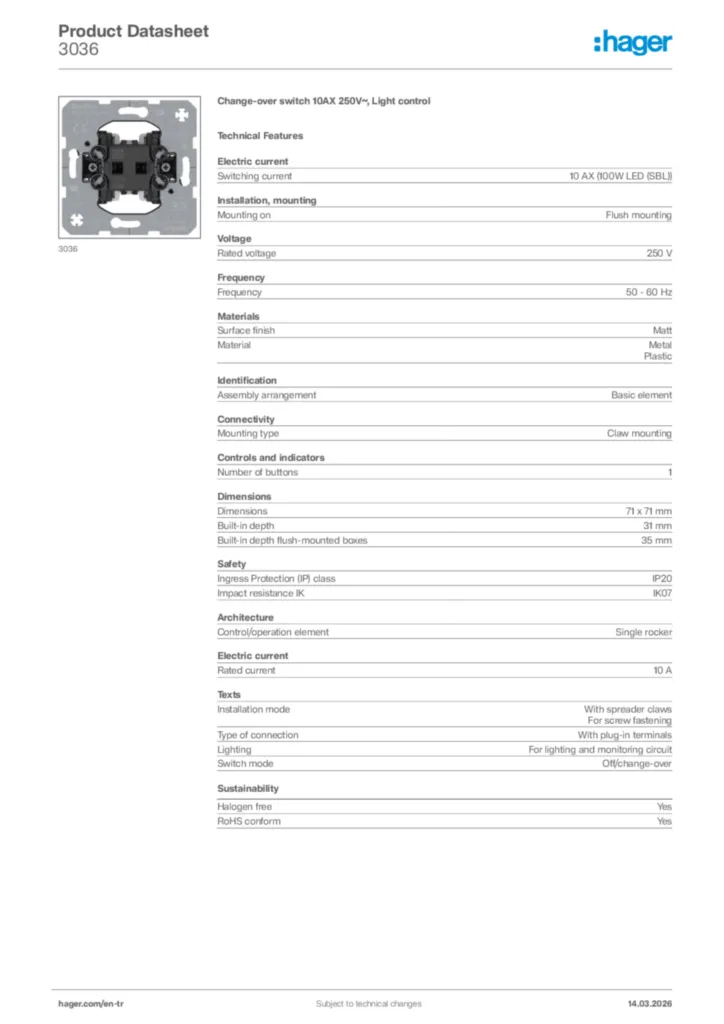

    • Product datasheet

      Image Hager Product data sheet 3036 | Hager

      Hager Product data sheet 3036

      Change-over switch 10AX 250V~, Light control

      PDF

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      dc24-1015

      PDF
      334,72 kB
    More documentation

    Discover more of this product range

      5
    • 1
      5036 - Push-button change-over contact illuminated
      5036
      Push-button change-over contact illuminated
    • 2
      3037 - Intermediate switch, light control
      3037
      Intermediate switch, light control
    • 3
      1675 - Neon lamp unit N terminal, light control, grey
      1675
      Neon lamp unit N terminal, light control, grey
    • 4
      5031 - Rocker push-button NO contact Module insert
      5031
      Rocker push-button NO contact Module insert
    • 5
      16517209 - Rocker f. accessible const., tactile symbol f. bell, redlens , K.1, p.white gl.
      16517209
      Rocker f. accessible const., tactile symbol f. bell, redlens , K.1, p.white gl.
