Intermediate switch, light control 3037
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See All (70)
Optional accessories
-
Illumination insert for domestic switching devices 1 products available
Compatible products
-
Referenced by 333 products available
Accessories mandatory
-
14267003Rocker, lab. field, K.5, al., al. anodised
-
16212089Rocker, clearlens, R.1/R.3, p. white glossy
-
14157003Rocker, lens, K.5, al., al. anodised
-
16206049Rocker imprinted symbol for light, Q.x, p. white velvety
-
16211404Rocker, lens, B.7, al., matt, lacq.
-
16211606Rocker, lens, B.3/B.7, ant., matt
-
16211909Rocker, lens, S.1/B.3/B.7, p. white, matt, plastic
-
16218982Rocker, lens, S.1, white glossy
-
16218989Rocker, lens, S.1/B.3/B.7, p. white glossy
-
14267004Rocker, lab. field, K.5, stainless steel, metal matt finish
-
16206059Rocker imprinted symbol for bell, Q.x, p. white velvety
-
14267009Rocker, lab. field, K.1, p. white glossy
-
16202025Rocker imprinted symbol for bell, R.1/R.3, black glossy
-
16202069Rocker imprinted symbol for bell, R.1/R.3, p. white glossy
-
16202045Rocker, R.1/R.3, black glossy
-
16202089Rocker, R.1/R.3, p. white glossy
-
16208982Rocker, S.1/B.3/B.7, white glossy
-
16201404Rocker, S.1/B.3/B.7, al., matt, lacq.
-
16201606Rocker, S.1/B.3/B.7, ant., matt
-
14967004Rocker , l.lab. field, lens, K.5, stainless steel matt, lacq.
Referenced by
-
10128982Frame 2gang, S.1, white glossy
-
10136096Frame 3gang, Q.3, ant. velvety, lacq.
-
16288989Rocker, lab. field, lens, S.1/B.3/B.7, p. white glossy
-
16206084Rocker, Q.x, aluminium velvet, lacquered
-
16206086Rocker, Q.x, ant. velvety, lacq.
-
16206089Rocker, Q.x, p. white velvety
-
13096089Frame l. cut-out, Q.1, p. white velvety
-
10158982Frame 5gang, S.1, white glossy
-
10158989Frame 5gang, S.1, p. white glossy
-
10159909Frame 5gang, S.1, p. white, matt, plastic
-
13098989Frame l. cut-out, S.1, p. white glossy
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10128989Frame 2gang, S.1, p. white glossy
-
10129909Frame 2gang, S.1, p. white, matt, plastic
-
10139909Frame 3gang, S.1, p. white, matt, plastic
-
10148982Frame 4gang, S.1, white glossy
-
10148989Frame 4gang, S.1, p. white glossy
-
10149909Frame 4gang, S.1, p. white, matt, plastic
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
Technical properties
Electric current
-
Switching current10 AX (100W LED (SBL))
-
Rated current10 A
Installation, mounting
-
Mounting onFlush mounting
Voltage
-
Rated voltage250 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
Surface finishMatt
-
MaterialMetal, Plastic
Identification
-
Assembly arrangementBasic element
Connectivity
-
Mounting typeClaw mounting
Controls and indicators
-
Number of buttons1
Dimensions
-
Built-in depth32 mm
-
Built-in depth flush-mounted boxes35 mm
Safety
-
Ingress Protection (IP) classIP20
-
Impact resistance IKIK07
Architecture
-
Control/operation elementSingle rocker
Texts
-
Installation modeWith spreader claws
-
Type of connectionWith plug-in terminals
-
LightingFor lighting and monitoring circuit
-
Switch modeIntermediate
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

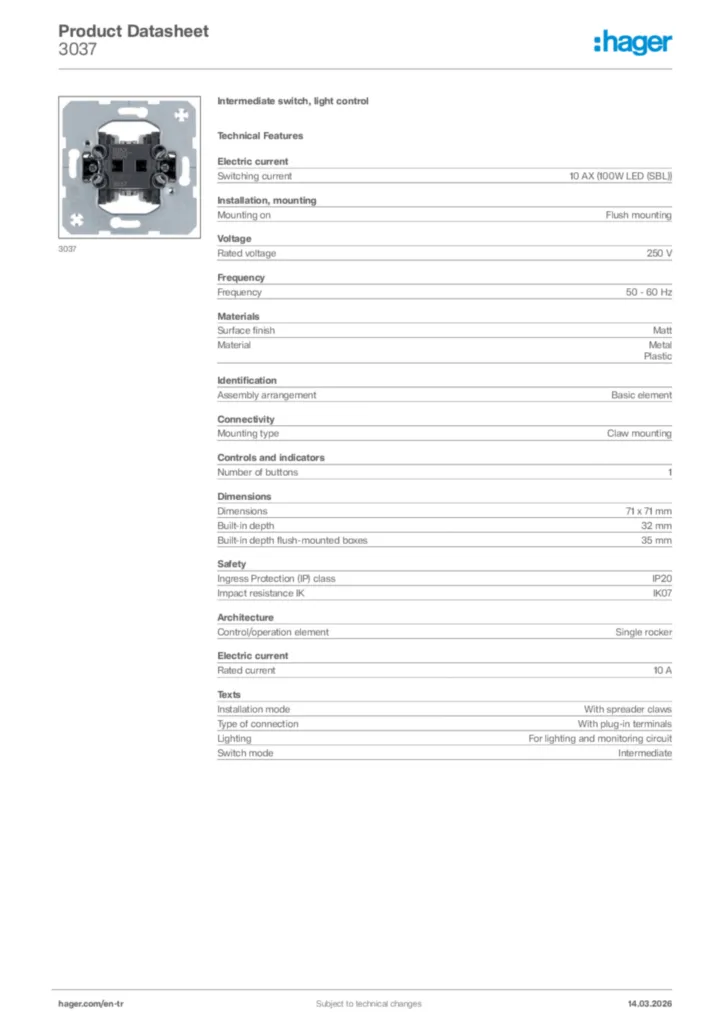

Product datasheet
Hager Product data sheet 3037
Intermediate switch, light control
PDF -
Declaration of conformity
EU Declaration of Conformity
dc24-1015
PDF334,72 kB
