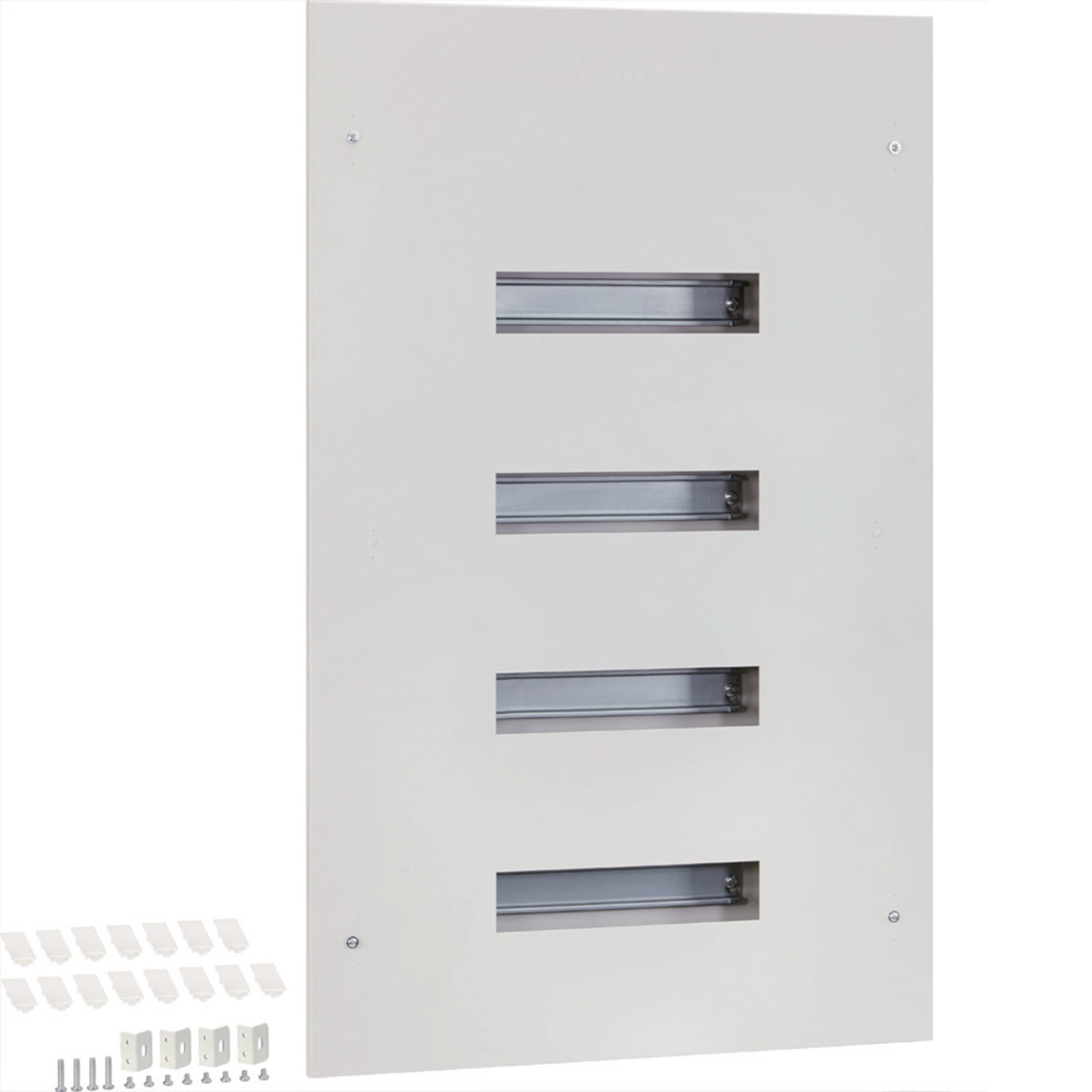

    Hager The Hager 48M 4-row DIN flush metal box (no door) is a robust enclosure for residential and light commercial distribution. It accommodates 48 modules across 4 DIN rails, supports 230-415 V systems, and offers 16 conduit inlets. Steel construction, IK05, Class I, RAL 9002. Indoor, screw-mounted, with compact built-in dimensions (460 mm width, 60 mm depth) for neat, space-saving panel integration.
    EAN
    9329659005749
    Packaging
    1 Piece
    • VT

    Flush Mount DIN Metal Enclosure 4 Rows 48 Modules IK05, No Door VT48F

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Flush Mount DIN Metal Enclosure 4 Rows 48 Modules IK05, No Door

    VT48F

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Connec­tion
    • Number of conduit inlets
      16
    Voltage
    • Nominal voltage
      230 - 415 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    Equip­ment
    • Number of rails
      4
    • Number of rows
      4
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      48
    Dimen­sions
    • Height
      795 mm
    • Width
      510 mm
    • Depth
      10 mm
    • Built-in width
      460 mm
    • Built-in depth
      60 mm
    • Number of width units
      16
    Cover, door
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    Connectivity
    • Mounting type
      Screw mounting
    Mater­ials
    • Material
      Steel
    • RAL code
      9002
    • Colour
      Grey white
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK05

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration VT48F
    PDF
    RoHS report VT48F
    PDF

    Downloads

    • Product image

      Image VT48F | Hager Australia

      Product Image VT48F

    • Product datasheet

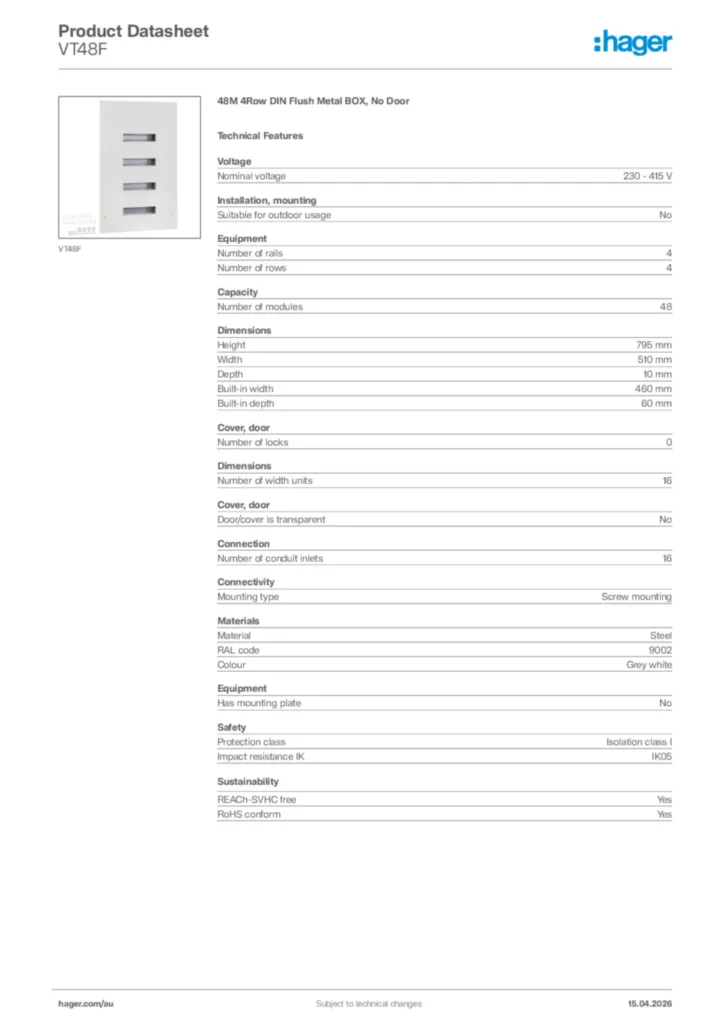

      Image Hager Product data sheet VT48F | Hager Australia

      Hager Product data sheet VT48F

      48M 4Row DIN Flush Metal BOX, No Door

      PDF

    • Product data sheet

      Image Hager VT Metal Enclosure | Hager Australia

      Hager VT Metal Enclosure

      PDF
      393,83 kB
