The Hager golf small distributor is a surface‑mounted 4‑row (48‑module) board for indoor residential or light commercial use. Rated 400 V, 80 A, it offers IP40, Class II insulation and IK07 impact resistance. Supplied with N and PE terminal blocks and conduit inlets for neat, fast wiring. Pure white RAL9010 opaque door with snap‑on closure. Dimensions 647×282×99 mm. Not suitable for outdoor use. Designed for installation in residential and commercial switchboards,suitable for DIN rail mounting.
EAN
3250616595750
Packaging
1 Piece
Hager Small distributor Golf surface 4-row 48M IP40 Class II N+PE white door 80A VS412PT
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Cover/infill panel/identification strip 1 products available -
Vertical busbar system 2 products available -
Door/operating panel 1 products available -
Cover strip 1 products available -
Coax connector 1 products available -
Quick-release fastener for housing covers 1 products available
Complete your system
Technical properties
Voltage
-
Nominal voltage400 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current80 A
Equipment
-
Number of rails4
-
Number of rows4
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules48
Functions
-
With conduit inletsYes
Dimensions
-
Height647 mm
-
Width282 mm
-
Depth99 mm
-
Number of width units12
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentNo
-
Cabinet door typeSingle door
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
-
Ultraviolet-resistantNo
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP40
-
Locking typeSnap on lock, Without lock
-
Glow wire test650 °C
-
Protection class with doorIP40
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

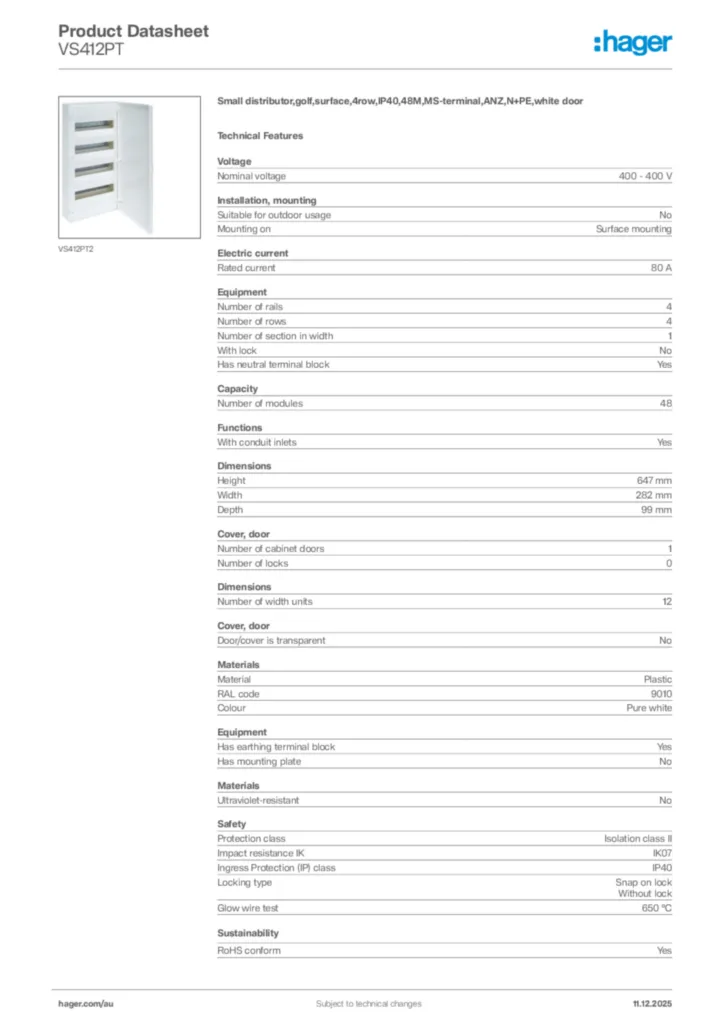

Hager Product data sheet VS412PT
Small distributor,golf,surface,4row,IP40,48M,MS-terminal,ANZ,N+PE,white door
PDF -
Installation manual
Installation manual en-GB 2021-05-17
PDF5,13 MB
