    • VF212PT
    The Hager apex single chassis, 96‑pole, 250 A rated fixed‑load busbar chassis delivers safe isolation and distribution. Surface‑mounted steel enclosure (1600×600×200 mm, RAL 7035) with IP43, IK05, Class I. 16‑module capacity and secure 3‑point key‑lock door. Ideal for high‑density circuits and dependable upstream isolation. For reliable installation in residential and commercial switchboards; suitable for DIN rail mounting and compliant electrical distribution applications.
    EAN
    3250616464865
    Packaging
    1 Piece
    • golf enclos­ures

    Hager Golf flush small distributor 2-row 24M IP40 N+PE/MS terminals white door VF212PT

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Hager Golf flush small distributor 2-row 24M IP40 N+PE/MS terminals white door

    VF212PT

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Cover­/in­fill panel/iden­ti­fic­a­tion strip 1 products available
    • Vertical busbar system 2 products available
    • Mounting accessories 2 products available
    • Door/­op­er­ating panel 1 products available
    • Busbar system for distri­bu­tion boards 1 products available
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy 1 products available

    Complete your system

    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • Vertical busbar system
    • Mounting accessories
    • Door/­op­er­ating panel
    • Busbar system for distri­bu­tion boards
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy
    • VZ788N

      Labeling strips, golf, adhesive, 396mm, surface, flush m. distributor, accessory, 10pcs
      EUR 0.00  / *
    • KCL363L

      Busbar MCB 3P 2R 125mm left
      EUR 0.00  / *
    • KCL368L

      Busbar MCB 3P 3R 125mm left
      EUR 0.00  / *
    • VZ696N

      Cavity wall anker, golf, for cavity wall ditributor, accessory, 4 pieces
      EUR 0.00  / *
    • VZ790N

      Srew, golf, 90°, for flush mounting distributor, for chassis and cover, accessory
      EUR 0.00  / *
    • VZ604N

      Door, golf, white, accessory, for VF/VS212
      EUR 0.00  / *
    • KM035

      EUR 0.00  / *

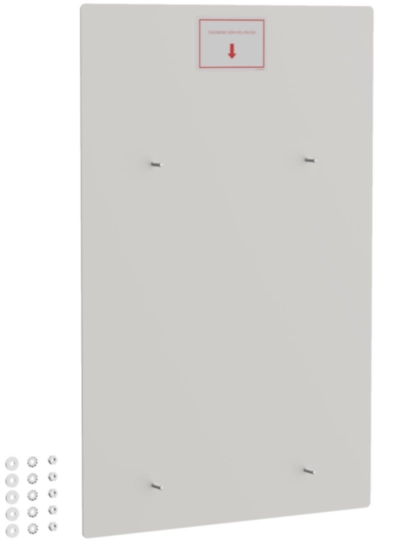

    • VF212BP

      EUR 0.00  / *

    Technical properties

    Voltage
    • Nominal voltage
      400 - 400 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting
    Elec­tric current
    • Rated current
      80 A
    Equip­ment
    • Number of rails
      2
    • Number of rows
      2
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      24
    Func­tions
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      418 mm
    • Width
      382 mm
    • Depth
      97,50 mm
    • Built-in height
      382 mm
    • Built-in width
      318 mm
    • Built-in depth
      72 mm
    • Number of width units
      12
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    • Cabinet door type
      Single door
    Mater­ials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    • Ultra­vi­olet-res­istant
      No
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP40
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      850 °C
    • Protec­tion class with door
      IP40

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
    PDF
    25,39 MB
    REACH declaration VF212PT
    PDF
    RoHS report VF212PT
    PDF

    Downloads

    • Product image

      Image VF212PT | Hager Australia

      Product Image VF212PT

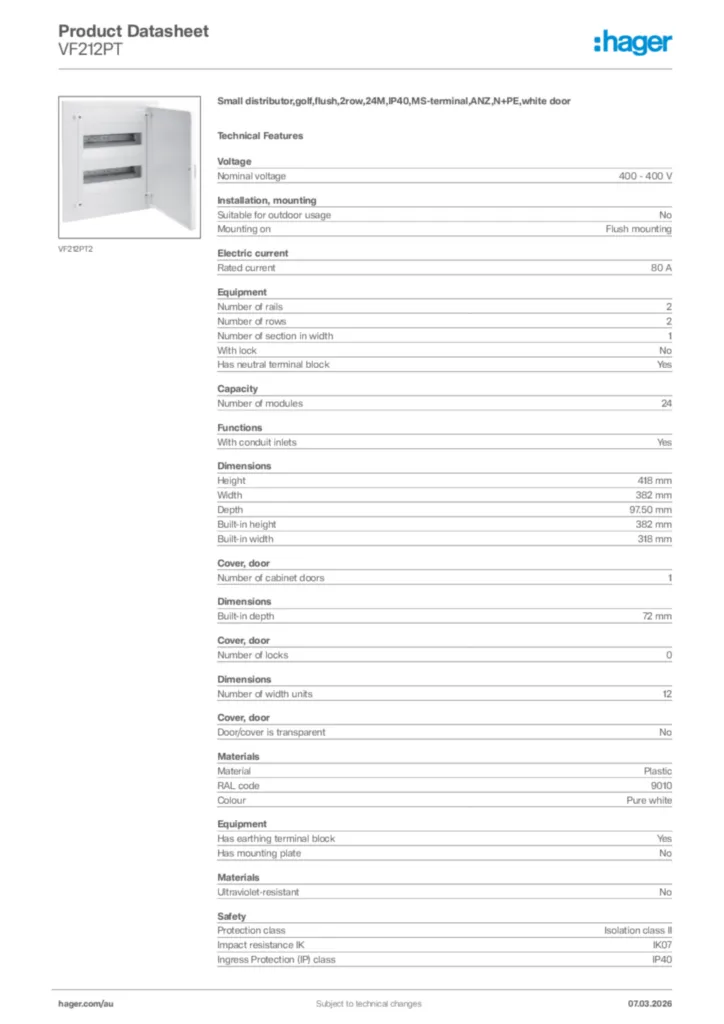

    • Product datasheet

      Image Hager Product data sheet VF212PT | Hager Australia

      Hager Product data sheet VF212PT

      Small distributor,golf,flush,2row,24M,IP40,MS-terminal,ANZ,N+PE,white door

      PDF

    • Installation manual

      Image Installation manual en-GB 2020-01-01 | Hager Australia

      Installation manual en-GB 2020-01-01

      PDF
      2,01 MB
      Image Installation manual en-GB 2021-05-17 | Hager Australia

      Installation manual en-GB 2021-05-17

      PDF
      5,37 MB
