MCB 1P 10kA C-32A 1M NT132C
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Under voltage coil 1 products available -
Shunt release 2 products available -
Auxiliaries contact block 2 products available
Technical properties
Electric current
-
Rated current32 A
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-110 kA
Architecture
-
Type of pole1P
Capacity
-
Number of modules1
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
Installation, mounting
-
Nominal tightening torque top terminal2,80 - 2,80 Nm
-
Nominal tightening torque down terminal2,80 - 2,80 Nm
-
Nominal tightening torque2,80 - 2,80 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
-
360° mounting position possibleYes
Voltage
-
Rated operational voltage Ue240 - 415 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 60 Hz
Safety
-
Ingress Protection (IP) classIP20
-
Grid distance35 mm
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Class of energy limitation I²t3
-
Air humidity protectionFor all climates
-
Operating temperature-25 - 70 °C
Power
-
Total power loss under IN4,40 W
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height83 mm
-
Width17,50 mm
-
Depth70 mm
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 35 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for massive conductors1 - 35 mm²
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

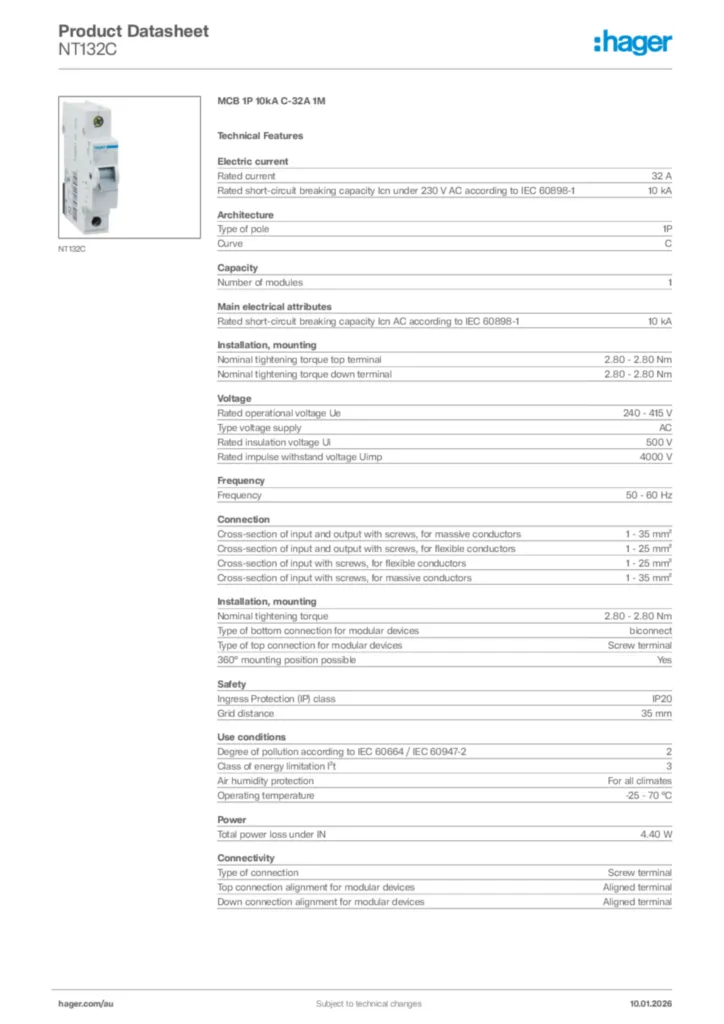

Product datasheet
