MCB 3P 10kA/15kA D-25A 3M NDN325A

EAN
3250614619267
Packaging
4

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

MCB 3P 10kA/15kA D-25A 3M

NDN325A

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (10)
    • Locking inter­locking func­tions 1 products available
    • Phase separ­a­tion func­tions 1 products available
    • Terminal cover 1 products available
    • Under voltage coil 1 products available
    • Shunt release 2 products available
    • Auxil­i­aries contact block 2 products available

    Complete your system

    • Locking inter­locking func­tions
    • Phase separ­a­tion func­tions
    • Terminal cover
    • Under voltage coil
    • Shunt release
    • Auxil­i­aries contact block
    • Protective cap/strip for phase busbar
    • Modular phase busbar
    • MZN175

      Padlockable locking kit for MCB, RCCB and RCBO
      EUR 0.00  / *
    • MZN121

      1 set of 3 inter-pole barriers for MCB
      EUR 0.00  / *
    • MZN120

      Terminal shield / screw shield for MCB
      EUR 0.00  / *
    • MZ206

      Under voltage release 230V AC
      EUR 0.00  / *
    • MZ204

      Shunt trip 24-48V AC 12-48V DC
      EUR 0.00  / *
    • MZ203

      Shunt trip 230-415V AC 110-130V DC
      EUR 0.00  / *
    • MZ202

      Alarm contact 1C+1O 6A 240V AC
      EUR 0.00  / *
    • MZ201

      Auxiliary contact 1C+1O 6A 240V AC
      EUR 0.00  / *
    • KZN023

      Endcap for busbars 2P and 3P
      EUR 0.00  / *
    • KDN380A

      Insulated busbar 3P 80A fork 16mm² 12M
      EUR 0.00  / *

    Technical properties

    Elec­tric current
    • Rated current
      25 A
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
      15 kA
    • Rated current 30°C
      25 A
    Archi­tec­ture
    • Type of pole
      3P
    • Curve
      D
    Capa­city
    • Number of modules
      3
    Install­a­tion, mounting
    • Nominal tight­ening torque top terminal
      2,80 - 2,80 Nm
    • Nominal tight­ening torque down terminal
      2,80 - 2,80 Nm
    • Nominal tight­ening torque
      2,80 - 2,80 Nm
    • Type of bottom connec­tion for modular devices
      bicon­nect
    • Type of top connec­tion for modular devices
      Screw terminal
    • 360° mounting posi­tion possible
      Yes
    Main elec­trical attrib­utes
    • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
      10 kA
    Voltage
    • Rated oper­a­tional voltage Ue
      400 - 400 V
    • Type voltage supply
      AC
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      6000 V
    Frequency
    • Frequency
      50 - 60 Hz
    Connec­tion
    • Cross-sec­tion of input and output with screws, for massive conductors
      1 - 35 mm²
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      1 - 25 mm²
    • Cross-sec­tion of input with screws, for flex­ible conductors
      1 - 25 mm²
    • Cross-sec­tion of input with screws, for massive conductors
      1 - 35 mm²
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    • Grid distance
      60 mm
    Use condi­tions
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Oper­ating temper­ature
      -25 - 70 °C
    Power
    • Total power loss under IN
      11 W
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      4000
    • Number of mech­an­ical oper­a­tions
      20000
    Connectivity
    • Type of connec­tion
      Screw terminal
    • Top connec­tion align­ment for modular devices
      Aligned terminal
    • Down connec­tion align­ment for modular devices
      Aligned terminal
    Dimen­sions
    • Height
      83 mm
    • Width
      52,50 mm
    • Depth
      70 mm

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - MCB 1P 6kA B-16A, 1 module (english)
    PDF
    39,21 MB
    Hager REACH declaration NDN325A
    PDF
    Hager RoHS report NDN325A
    PDF

    Downloads

    • Product image

      Image NDN325A | Hager Australia

      Product Image NDN325A

    • Product datasheet

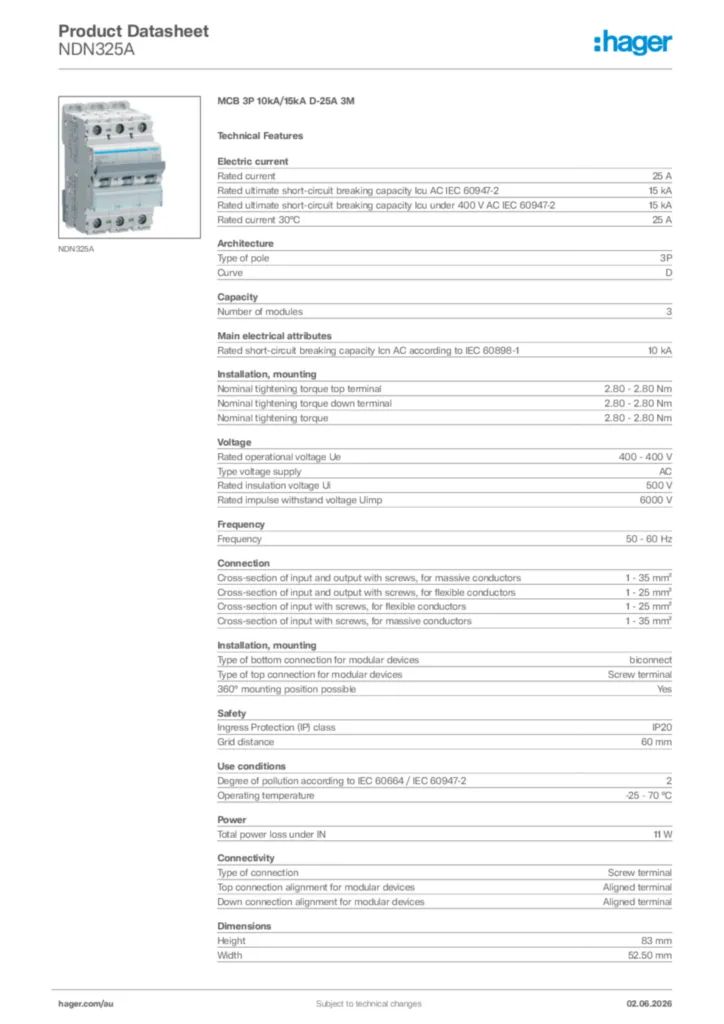

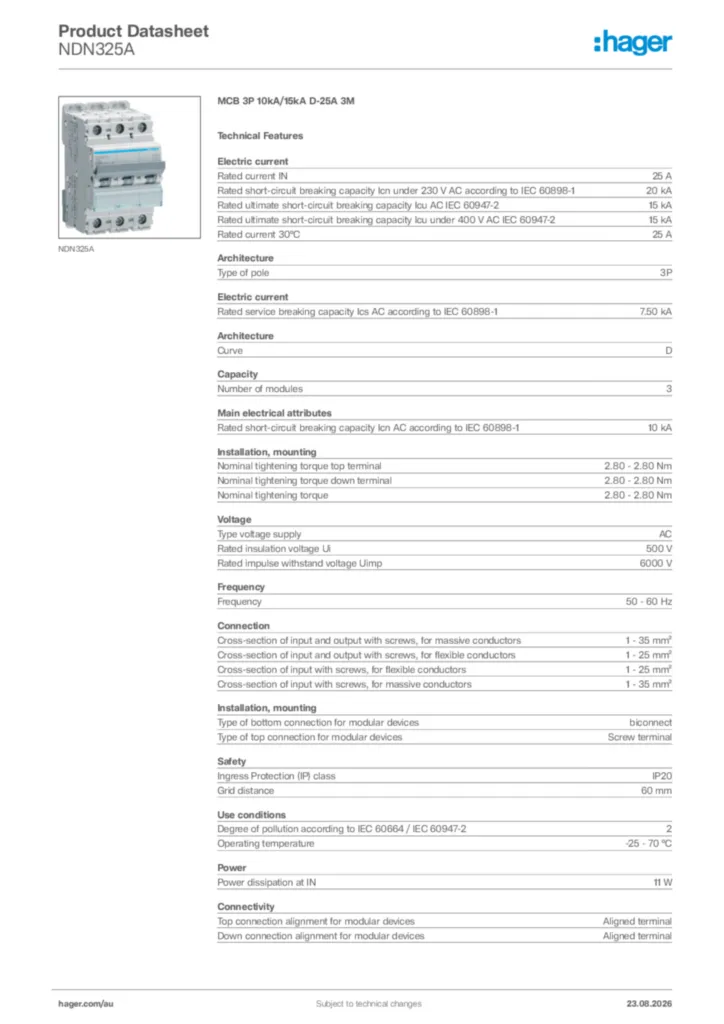

      Image Hager Product data sheet NDN325A | Hager Australia

      Hager Product data sheet NDN325A

      MCB 3P 10kA/15kA D-25A 3M

      PDF

    • Product data sheet

      Image NDNxxxC Product Data and Technical Specification | Hager Australia

      NDNxxxC Product Data and Technical Specification

      Product data sheet en-GB 2015-07-06

      PDF
      92,06 kB
      Image UK_PD_TDS_TransformerMotorprotection.pdf | Hager Australia

      UK_PD_TDS_TransformerMotorprotection.pdf

      Technical data sheet recommending MCB's for single phase and three phase transformers.

      PDF
      204,90 kB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager Australia

      EU Declaration of Conformity

      Declaration of conformity en-GB 2024-10-02

      PDF
      650,27 kB
      Image UKCA Declaration of Conformity | Hager Australia

      UKCA Declaration of Conformity

      Declaration of conformity en-GB 2024-10-02

      PDF
      653,93 kB
