Hager The Hager HRC LV NH000 gG 100A 500V AC/DC fuse delivers general‑purpose protection for cables and equipment against overloads and short circuits, with a high breaking capacity up to 120 kA. Its compact NH000 size features a double indicator for rapid blown‑link identification and live gripping lugs for easy extraction and voltage checking. Ideal for LV distribution boards and industrial feeders. Power loss: 7.5 W.
EAN
3250614120756
Packaging
3
HRC LV Fuse NH000 gG 100A 500V AC/DC double indicator live gripping lugs 120kA LNH0100M
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
CurvegG
Fuse
-
Fuse sizeNH000
-
Fuse characteristicsgG
Voltage
-
Type voltage supplyAC/DC
-
Rated operational voltage Ue500 - 500 V
-
Rated voltage at AC 50 Hz500 - 500 V
Electric current
-
Rated current100 A
Use conditions
-
InsulatedNo
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-1120 kA
Power
-
Total power loss under IN7,50 W
Dimensions
-
Height58,50 mm
-
Width21 mm
-
Depth79 mm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

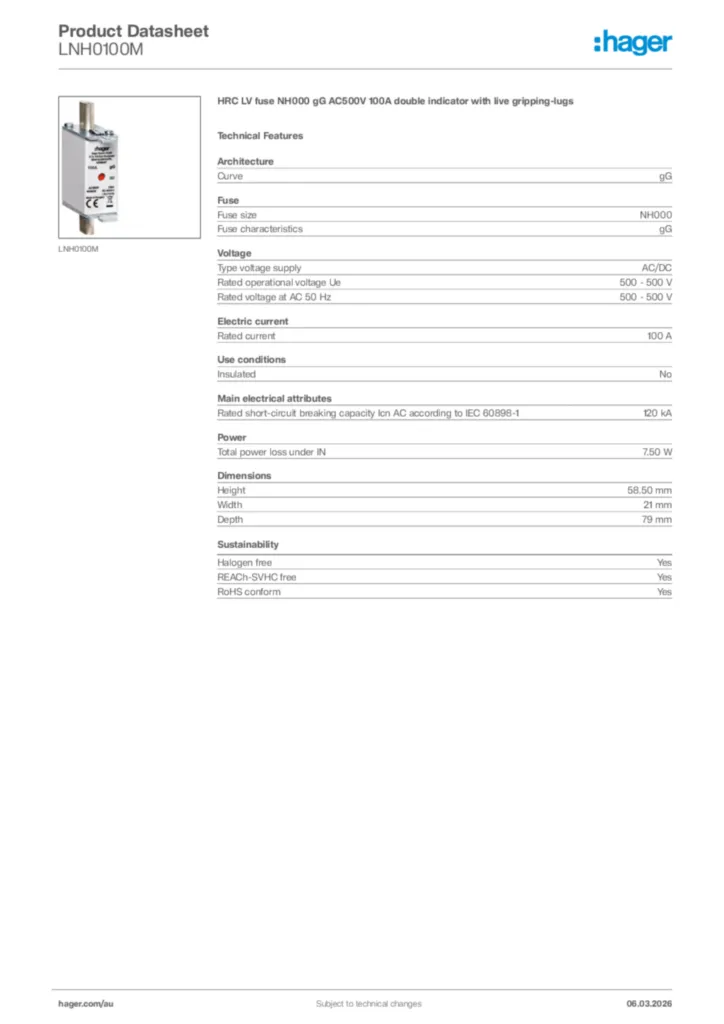

Product datasheet
Hager Product data sheet LNH0100M
HRC LV fuse NH000 gG AC500V 100A double indicator with live gripping-lugs
PDF -
Declaration of conformity
Declaration of conformity en-GB 2024-11-14
PDF232,48 kB
