Hager The Hager HRC low-voltage NH2 gG 315A 500V AC fuse protects circuits and equipment from overloads and short circuits. Its gG full-range characteristic ensures comprehensive protection, while double indicators provide instant blown-fuse identification. NH2 format with live gripping lugs enables safer handling and quick replacement. Ideal for industrial and commercial distribution boards and switchgear.
EAN
3250614121029
Packaging
3
HRC NH2 gG Fuse 315A AC500V double indicator live gripping lugs LNH2315M
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
CurvegG
Fuse
-
Fuse sizeNH2
-
Fuse characteristicsgG
Voltage
-
Type voltage supplyAC
-
Rated operational voltage Ue500 - 500 V
-
Rated voltage at AC 50 Hz500 - 500 V
Electric current
-
Rated current315 A
Use conditions
-
InsulatedNo
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-1120 kA
Power
-
Total power loss under IN31 W
Dimensions
-
Height72 mm
-
Width49 mm
-
Depth150 mm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

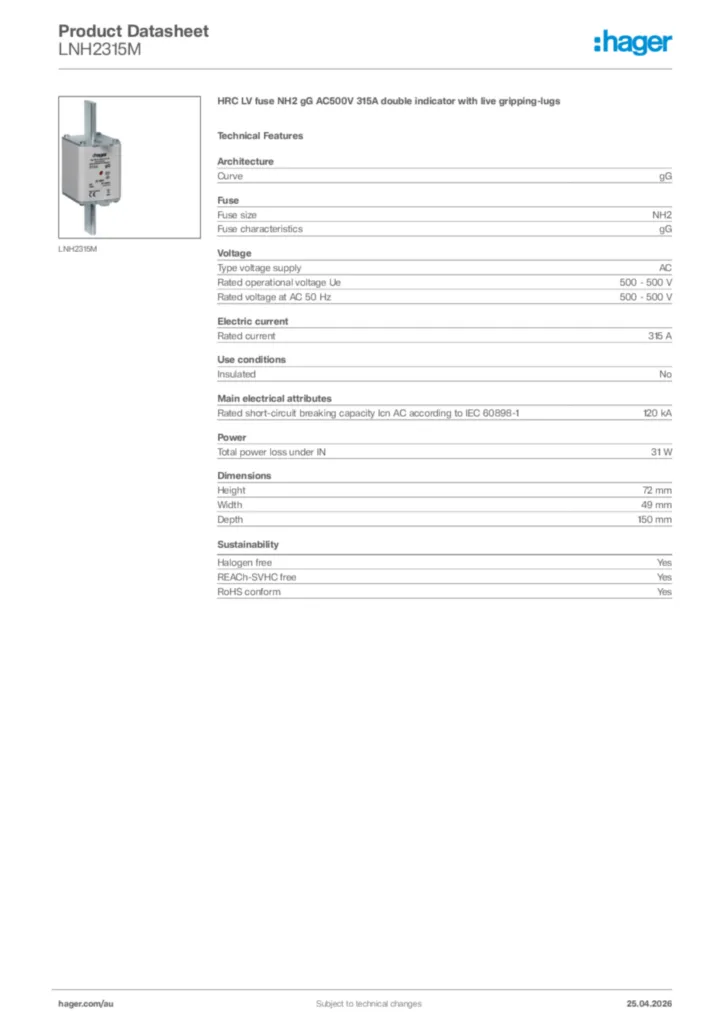

Hager Product data sheet LNH2315M
HRC LV fuse NH2 gG AC500V 315A double indicator with live gripping-lugs
PDF -
Declaration of conformity
Declaration of conformity en-GB 2024-11-14
PDF232,48 kB
