Hager The Hager HRC LV fuse NH1C gG 100A 500V AC with double indicator and live gripping lugs provides reliable all‑purpose circuit protection against overloads and short circuits. Its NH1C size and gG characteristic suit distribution and industrial panels, while a 120 kA breaking capacity secures high fault levels. Dual indicators give quick status, and gripping lugs simplify safe insertion and removal.
EAN
3250614120831
Packaging
3
NH1C gG HRC LV Fuse 100A 500V AC, double indicator, live gripping lugs LNH1100M
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
CurvegG
Fuse
-
Fuse sizeNH1C
-
Fuse characteristicsgG
Voltage
-
Type voltage supplyAC
-
Rated operational voltage Ue500 - 500 V
-
Rated voltage at AC 50 Hz500 - 500 V
Electric current
-
Rated current100 A
Use conditions
-
InsulatedNo
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-1120 kA
Power
-
Total power loss under IN9,40 W
Dimensions
-
Height64,50 mm
-
Width135 mm
-
Depth135 mm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

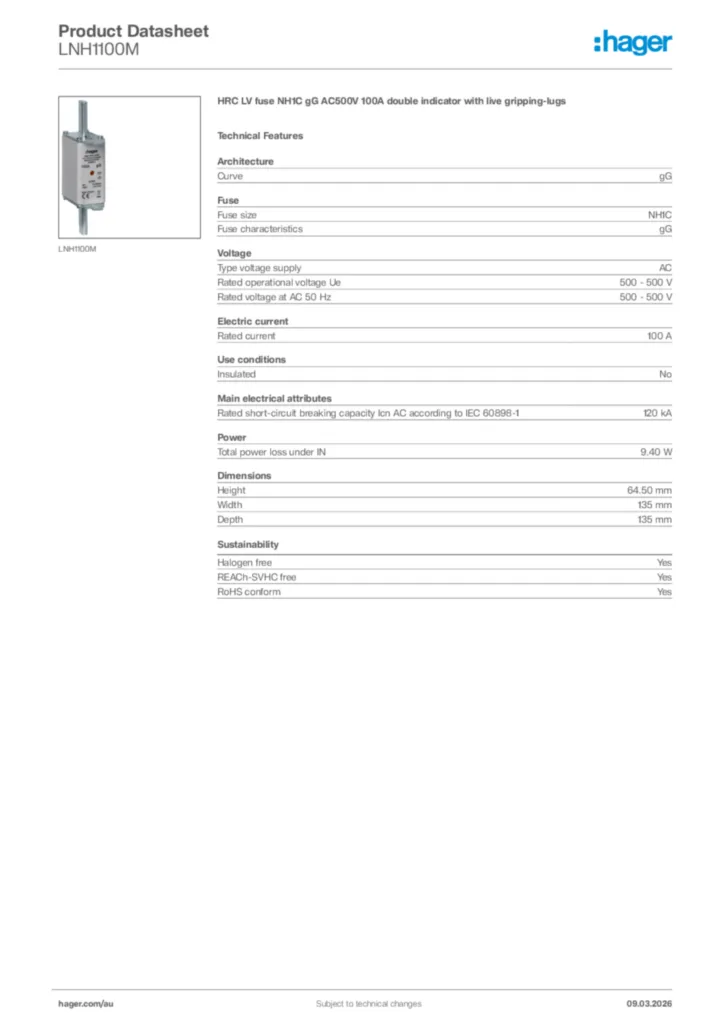

Hager Product data sheet LNH1100M
HRC LV fuse NH1C gG AC500V 100A double indicator with live gripping-lugs
PDF -
Declaration of conformity
Declaration of conformity en-GB 2024-11-14
PDF232,48 kB
