Hager The Hager HRC LV NH00 gG 125A 500 V AC/DC fuse with double indicator and live gripping lugs delivers dependable overload and short-circuit protection for LV distribution. With 120 kA breaking capacity and low 10 W losses, it suits demanding installations. Compact (58.5×21×79 mm) NH00 format for easy retrofit. Dual indicators speed status checks; gripping lugs enable safer live handling and replacement.
EAN
3250614120763
Packaging
3
NH00 gG HRC Fuse 125A 500V AC 120kA double indicator live gripping lugs LNH0125M
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
CurvegG
Fuse
-
Fuse sizeNH00
-
Fuse characteristicsgG
Voltage
-
Type voltage supplyAC/DC
-
Rated operational voltage Ue500 - 500 V
-
Rated voltage at AC 50 Hz500 - 500 V
Electric current
-
Rated current125 A
Use conditions
-
InsulatedNo
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-1120 kA
Power
-
Total power loss under IN10 W
Dimensions
-
Height58,50 mm
-
Width21 mm
-
Depth79 mm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

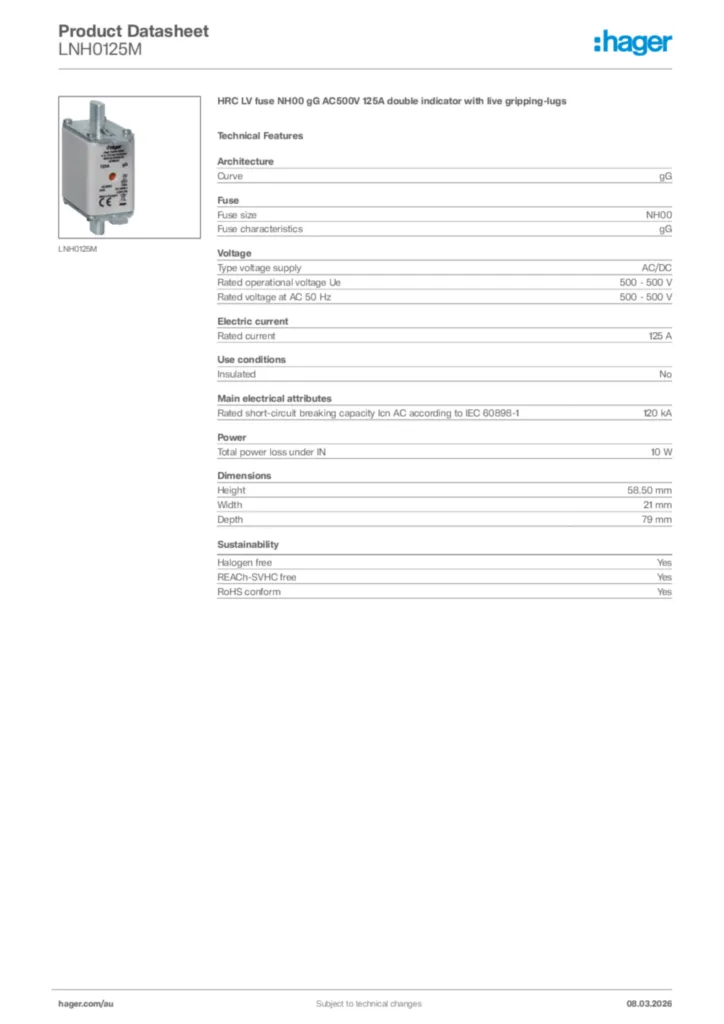

Product datasheet
Hager Product data sheet LNH0125M
HRC LV fuse NH00 gG AC500V 125A double indicator with live gripping-lugs
PDF -
Declaration of conformity
Declaration of conformity en-GB 2024-11-14
PDF232,48 kB
