Hager The Hager HRC LV NH2C gG 250A fuse protects low-voltage circuits and cables against overloads and short circuits. Rated up to 500 V AC/DC and 250 A with a high 120 kA breaking capacity, it suits demanding industrial and commercial distribution. Double indicator gives clear blown status, while gripping lugs ease safe handling. NH2C size, low losses (20.6 W), compact 39×150×72.5 mm.
EAN
3250614121005
Packaging
3
NH2C gG HRC Fuse 250A 500V AC/DC 120kA, Double Indicator, Live Gripping Lugs LNH2250M
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
CurvegG
Fuse
-
Fuse sizeNH2C
-
Fuse characteristicsgG
Voltage
-
Type voltage supplyAC/DC
-
Rated operational voltage Ue500 - 500 V
-
Rated voltage at AC 50 Hz500 - 500 V
Electric current
-
Rated current250 A
Use conditions
-
InsulatedNo
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-1120 kA
Power
-
Total power loss under IN20,60 W
Dimensions
-
Height150 mm
-
Width39 mm
-
Depth72,5 mm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

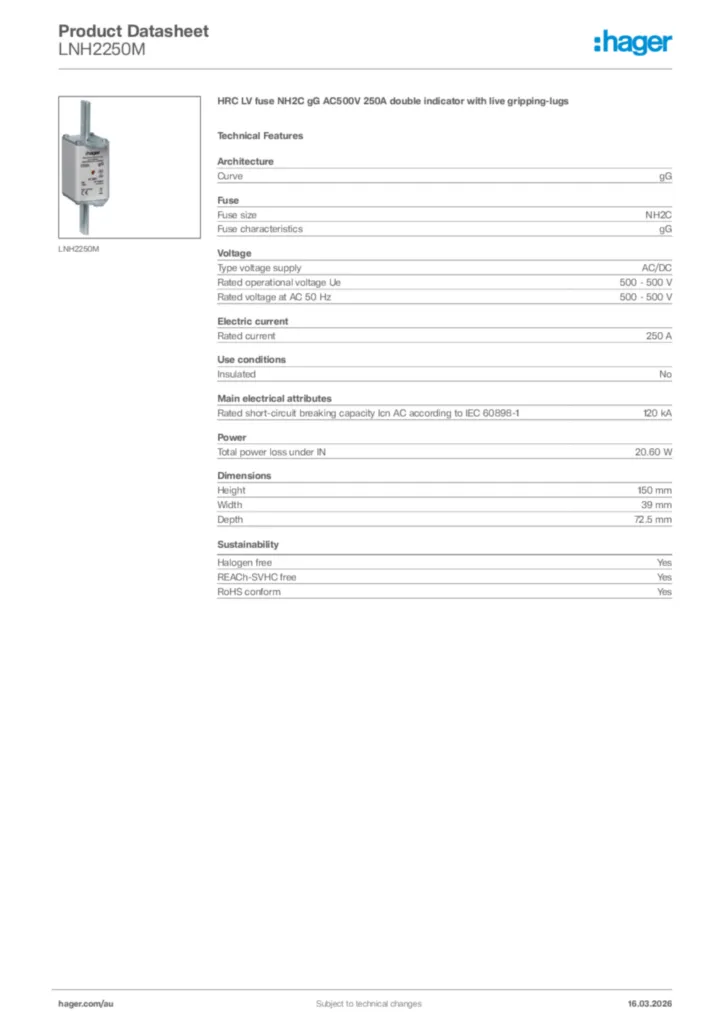

Hager Product data sheet LNH2250M
HRC LV fuse NH2C gG AC500V 250A double indicator with live gripping-lugs
PDF -
Declaration of conformity
Declaration of conformity en-GB 2024-11-14
PDF232,48 kB
