HRC LV fuse NH1C gG AC500V 125A double indicator with live gripping-lugs LNH1125M
EAN
3250614120848
Packaging
3
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
CurvegG
Fuse
-
Fuse sizeNH1C
-
Fuse characteristicsgG
Voltage
-
Type voltage supplyAC/DC
-
Rated operational voltage Ue500 - 500 V
-
Rated voltage at AC 50 Hz0 - 500 V
Electric current
-
Rated current125 A
Use conditions
-
InsulatedNo
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-1120 kA
Power
-
Total power loss under IN11,80 W
Dimensions
-
Height64,50 mm
-
Width135 mm
-
Depth135 mm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

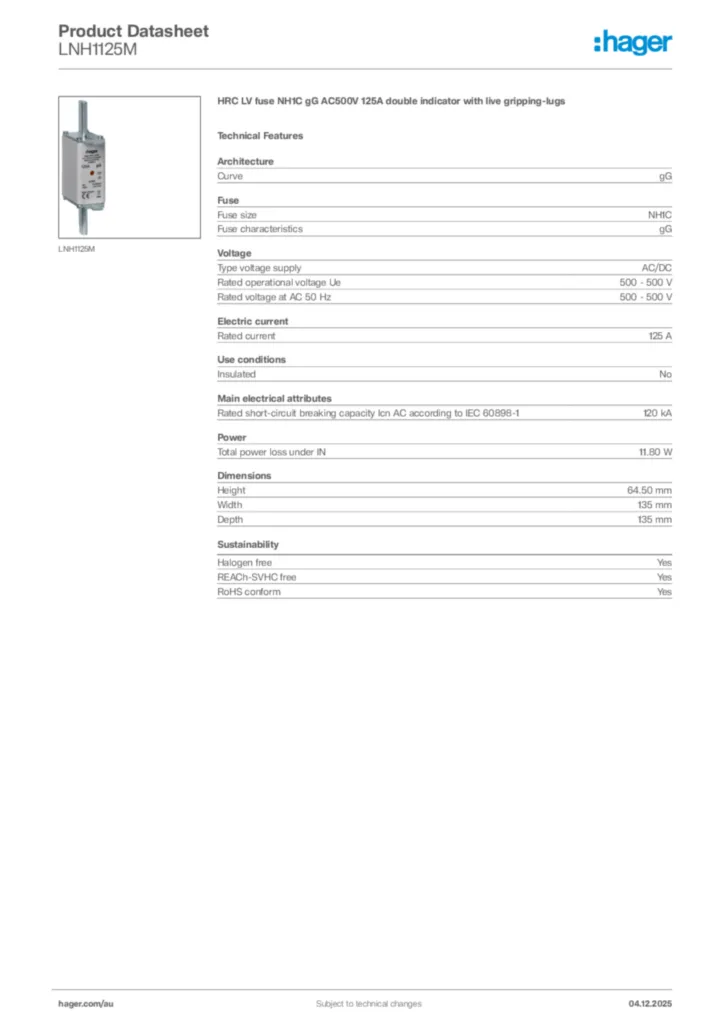

Hager Product data sheet LNH1125M
HRC LV fuse NH1C gG AC500V 125A double indicator with live gripping-lugs
PDF -
Declaration of conformity
Declaration of conformity en-GB 2024-11-14
PDF232,48 kB
