HRC LV fuse NH000 gG AC500V 80A double indicator with live gripping-lugs LNH0080M
EAN
3250614120749
Packaging
3 PCEs
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
CurvegG
Main electrical features
-
Rated short circuit breaking capacity Icn AC according IEC60898-1120 kA
-
Rated operational voltage Ue500 V
-
Type of supply voltageAC/DC
Voltage
-
Rated voltage DC250 V
Electric current
-
Cut off current120 kA
-
Rated current80 A
Fuse
-
CharactFusegG
-
Fuse SizeNH000
Dimensions
-
Depth of installed product79 mm
-
Height of installed product58.5 mm
-
Width of installed product21 mm
Power
-
Total power loss under IN6.5 W
Standards
-
ApprovalsVDE, EAC
Safety
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeYes
Use conditions
-
Altitude2000 m
-
InsulatedNo
Identification
-
Device familyLNH
Downloads
-

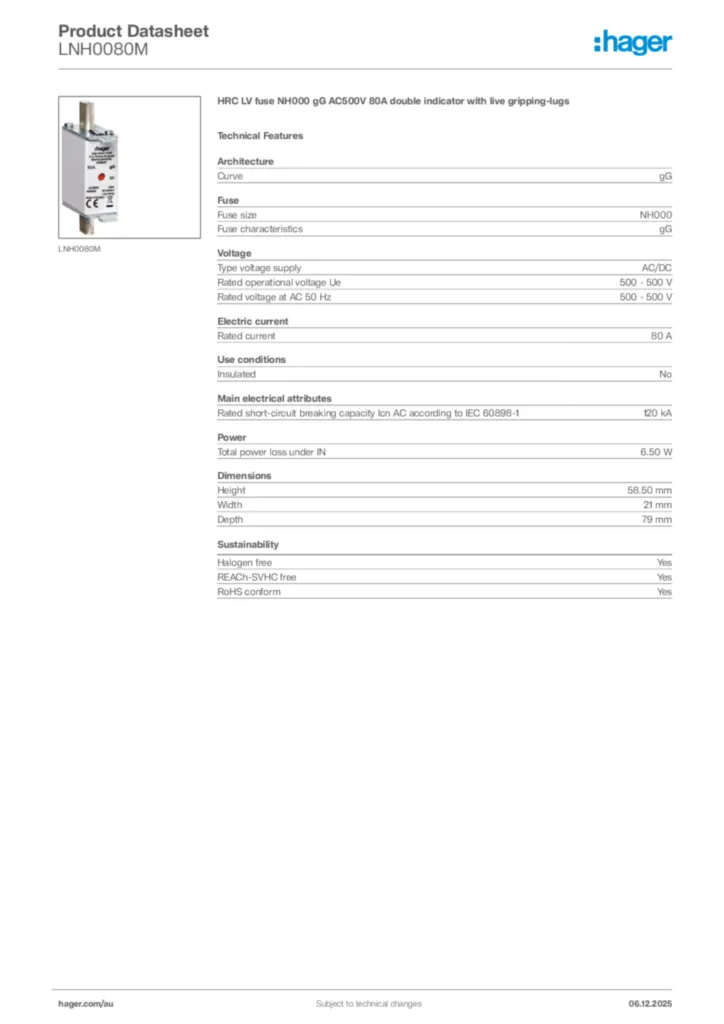

Product image
-
