Multi-function time switch 2 channels bluetooth EGN200AU
EAN
3250618502466
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Functions
-
With GPSNo
-
hour programYes
Configuration
-
Number of modules2
Controls and indicators
-
Function of the pushbutton1 way
Connectivity
-
Connection modeBluetooth
Main electrical features
-
Rated operational voltage Ue230 V
-
Nominal voltage230 V
-
Type of supply voltageAC
-
Frequency50/60 Hz
Voltage
-
Operating voltage230 V DC
Electric current
-
Switching current at 250 V~per channel 16 A
Dimensions
-
Depth of installed product61.6 mm
-
Height of installed product90 mm
-
Width of installed product35.8 mm
Frequency
-
Frequency range50…60 Hz
Power
-
Power consumption (operation)350 mW
-
Power consumption (standby)max. 300 mW
Battery
-
Power reserve [years]≈ 10 a
-
Lithium cell power reserve [years]≈ 10
Lighting control
-
Brightness measurement range1 / 2000 Lux
Fluorescent bulbs control
-
Fluorescent lampsmax. 1000 VA
-
Max. power with fluorescent parallel lamps400 W
-
Max. power fluo. duo lamp comp. series1000 W
-
Compact fluorescent lamps400 W
-
Fluorescent lamps parallel compensated400 W
-
Max. load fluorescent lamp400 W
Incandescent bulbs control
-
Max. power with incandescent lamps2300 W
-
230 V incandescent lamps and halogen lampsmax. 2300 W
Installation, mounting
-
Tightening torque0.5Nm
Connection
-
Connection cross-sect. flexible conductor0.2 / 2.5mm²
-
Connection cross-sect. rigid cable0,2 / 4mm²
-
Conductor cross-section (flexible)0.2…2.5 mm²
-
Conductor cross-section (rigid)0.2…4 mm²
-
Number of contacts2
-
Type of contacts1 changeover
-
Type of connectionwith screw terminal
-
Contactwith failsafe break contact (NC contact)
-
Type of connectionwith screw
Settings
-
Number of program steps200
-
Summer / Winter time changeautomatic
-
Shortest switching time1 mn
-
Annual programYes
-
Astro programYes
-
Daily programYes
-
Timewith automatic summer/winter time change-over
-
Weekly programYes
Scope of delivery
-
Memory card includedNo
Equipment
-
Pulse duration for inputsmin. 1 s
-
Type of programmable thermostatDigital
-
Number of channels2
-
Number of switching times for on/off200
-
Summer-/winter switchoverYes
-
With cyclic programYes
-
With holidays programNo
-
With Impulse programYes
-
With preset programmYes
-
With random programNo
Use
-
Local operation/hand operationYes
Safety
-
REACH conformNo
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature-5…45 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Working accuracy60
-
Storage/transport temperature-25…70 °C
-
Relative humidity95 %
Identification
-
Device familyEG

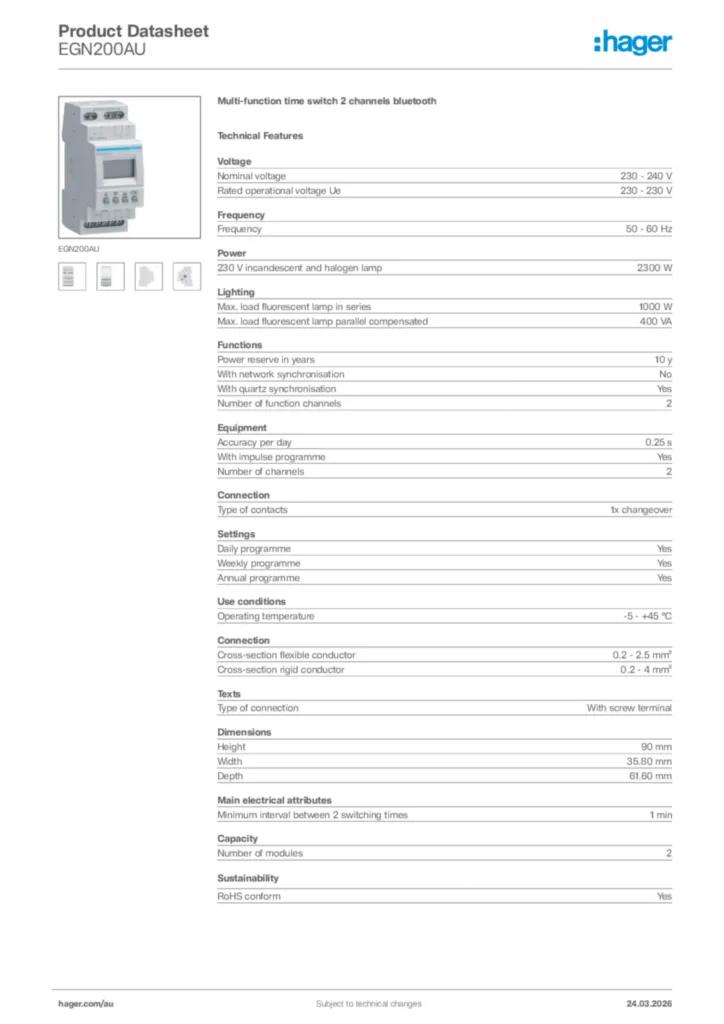

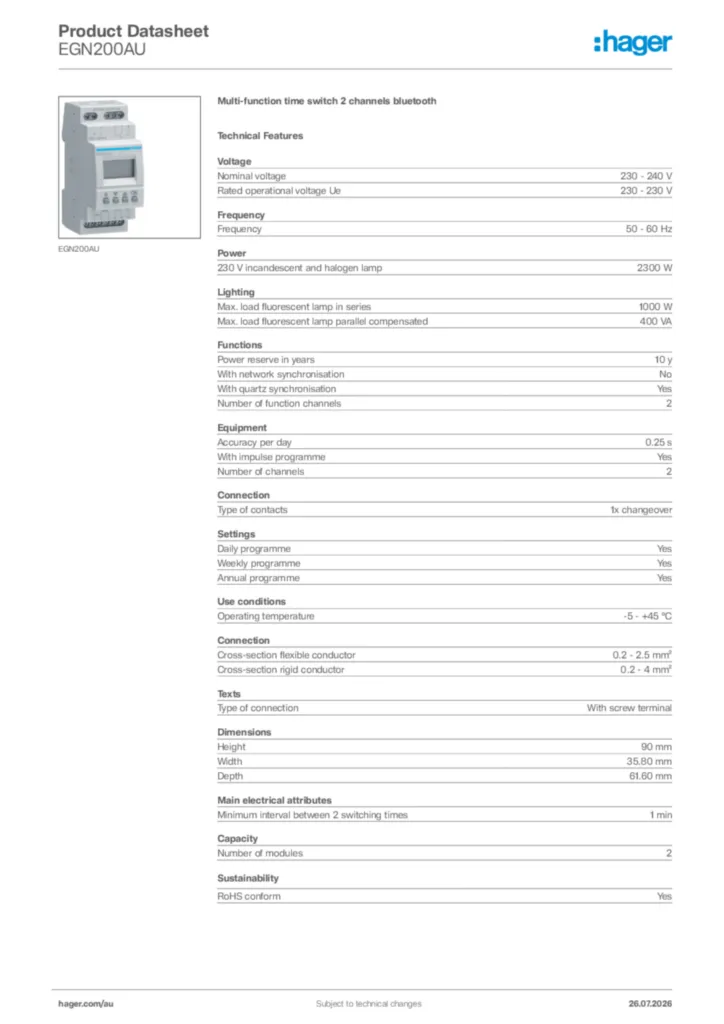

Downloads
-
