Hager The Hager flush-mounted cell for twilight switches automates lighting based on ambient light levels. Ideal for façade, pathway, and security lighting, it switches on at dusk and off at dawn to enhance safety and save energy. Its discreet flush fit, reliable light sensing, and compatibility with Hager Heat, Time & Light control systems ensure easy installation and dependable operation.
EAN
3250617579322
Packaging
1 Piece
Flush-mounted twilight photocell for automatic lighting control EEN002
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 4 products available
Technical properties
Use conditions
-
Operating temperature-10 - +45 °C
-
Air humidity protection90%/20°C
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
Connectivity
-
Mounting typeBuilt in installation
Dimensions
-
Maximum connection distance between receiver and transmitter100 m
-
Diameter blanking24 - 24 mm
Cable
-
Cable length1 m
Power supply
-
Supply voltage230 V +10%/-15%
Frequency
-
Frequency50 - 60 Hz
Equipment
-
Type of probeLight sensor
Detection
-
Type of sensorLight sensor integrated
Settings
-
Switch off delay time80 s
-
Switch on delay time60 s
Connection
-
Conductor cross-section0,75 - 0,75 mm²
Lighting
-
Brightness measuring range5 - 2000 lx
Safety
-
Ingress Protection (IP) classIP55
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

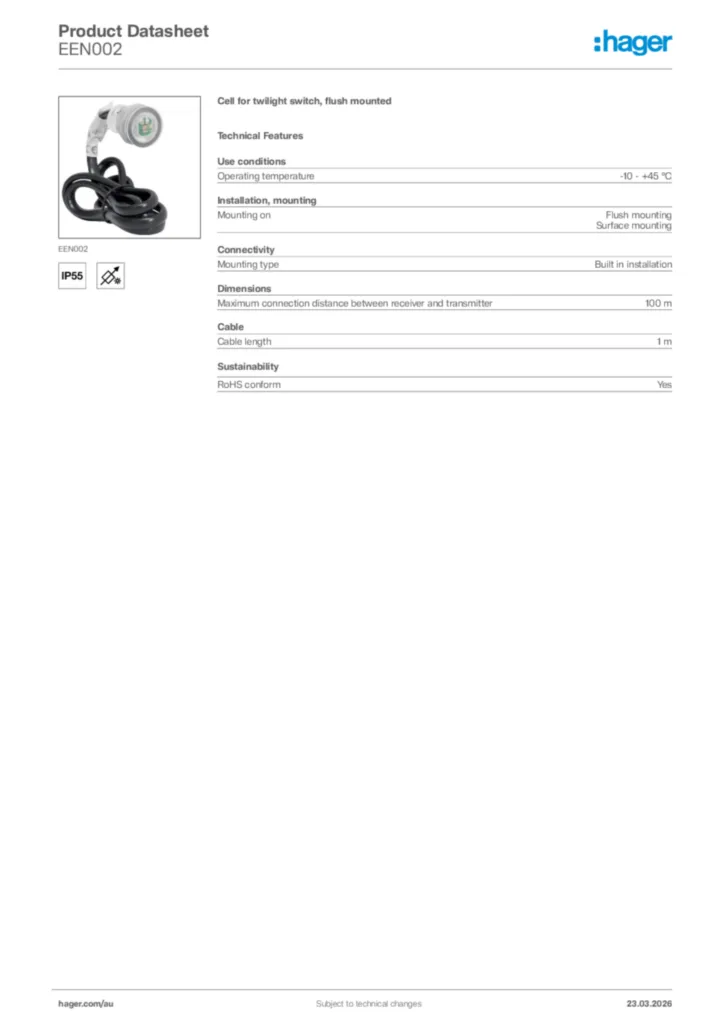

Hager Product data sheet EEN002
Cell for twilight switch, flush mounted
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, pt-PT 2017-09-29
PDF1,38 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-09-16
PDF127,59 kB
