3 mod Light Sensitive Switch

Twilight switch 1 channel, 1M, wall mounted cell EEN100

EAN

3250617579308

Packaging

1 Piece

Technical properties
Documentations
Accessories

Download the data sheet

Technical properties

Number of modules

1

Presence button

No

Rated operational voltage Ue

230 V
Frequency

50/60 Hz

Operating voltage

230 V~ +10%/-15%

Max. power with cos phi 0.6

10 A

Depth of installed product

65 mm
Height of installed product

83 mm
Width of installed product

17.8 mm

Frequency range

50…60 Hz

Maximum connection distance between receiver and transmitter

100m

Fluorescent lamps duo circuit

1000 W
Max. power with fluo uncompensated lamps

1000 VA
Power consumed

0.331 VA
Power consumption (operation)

300 mW
Incandescent bulb power

2300 W
Total power loss under IN

0.3 W
Power dissipation per coil

0.3 W
Max. Breaking capacity for parallel compensated fluorescent tubes

200 W
Max. Breaking capacity for row-compensated fluorescent tubes

1000 W

Electrical endurance cycles with incandescent lighting

7500
Electrical durability at nominal load in AC1 in operating cycles

50000
Electrical durability with parallel compensated fluorescent tubes

4000
Electrical durability with row-compensated fluorescent tubes

7500

Supply voltage

230 V

Brightness measurement range

5 / 2000 Lux

Max. power with fluorescent parallel lamps

1000 VA
Max. power fluo. duo lamp comp. series

1000 W
Fluorescent lamps parallel compensated

1000 W
Fluorescent lamps uncompensated

1000 W

Max. power with incandescent lamps

2300 W

Mounting type

din-Rail
Installation mode

for mounting on DIN rail ; Extension sensor for wall and ceiling mounting

Connection cross-sect. flexible conductor

1,5 / 6mm²
Connection cross-sect. rigid cable

1,5 / 6mm²
Number of contacts

1
Type of contacts

contact floating
Type of connection

with screw terminals

Delay ON

60 s
Delay OFF

80 s
Setting

Switch-on/switch-off delay continuously adjustable via potentiometer

Brightness

On/off brightness value individually adjustable
Potential-free

with potential-free normally-open contact

REACH conform

No
RoHS conform

Yes
Halogen free

No

Main design line

House electronics

Downloads

Product image

Product Image EEN100
Instruction manual

Instruction manuals for EEN100

PDF

1 MB

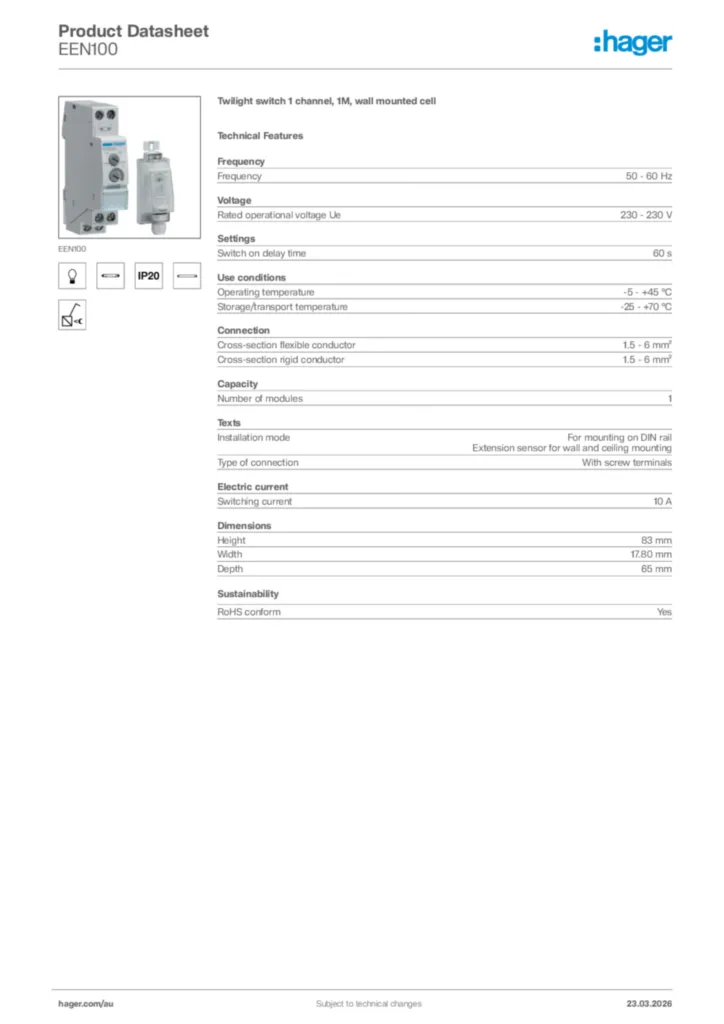

Product data sheet
