Hager The Hager wall-mounted twilight switch cell automates lighting by sensing ambient light, ideal for façades, pathways, and security lighting. Compatible with the Heat, Time & Light Control range, it provides accurate dusk/dawn detection for reliable switching and energy savings. Compact and easy to install, it ensures lights operate only when needed, enhancing comfort and reducing running costs.
EAN
3250617579339
Packaging
1 Piece
Wall-mounted photocell for twilight switch EEN003
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 4 products available
Technical properties
Use conditions
-
Operating temperature-10 - +45 °C
-
Air humidity protection90%/20°C
Installation, mounting
-
Mounting onSurface mounting
Connectivity
-
Mounting typeSurface mounting
Dimensions
-
Maximum connection distance between receiver and transmitter100 m
-
Height118 mm
-
Width48 mm
Cable
-
Cable length1 m
Power supply
-
Supply voltage230 V +10%/-15%
Frequency
-
Frequency50 - 60 Hz
Equipment
-
Type of probeLight sensor
Detection
-
Type of sensorLight sensor integrated
Settings
-
Switch off delay time80 s
-
Switch on delay time60 s
Connection
-
Conductor cross-section0,2 - 1,5 mm²
Lighting
-
Brightness measuring range5 - 2000 lx
Safety
-
Ingress Protection (IP) classIP55
Downloads
-
Product image
-
Product datasheet

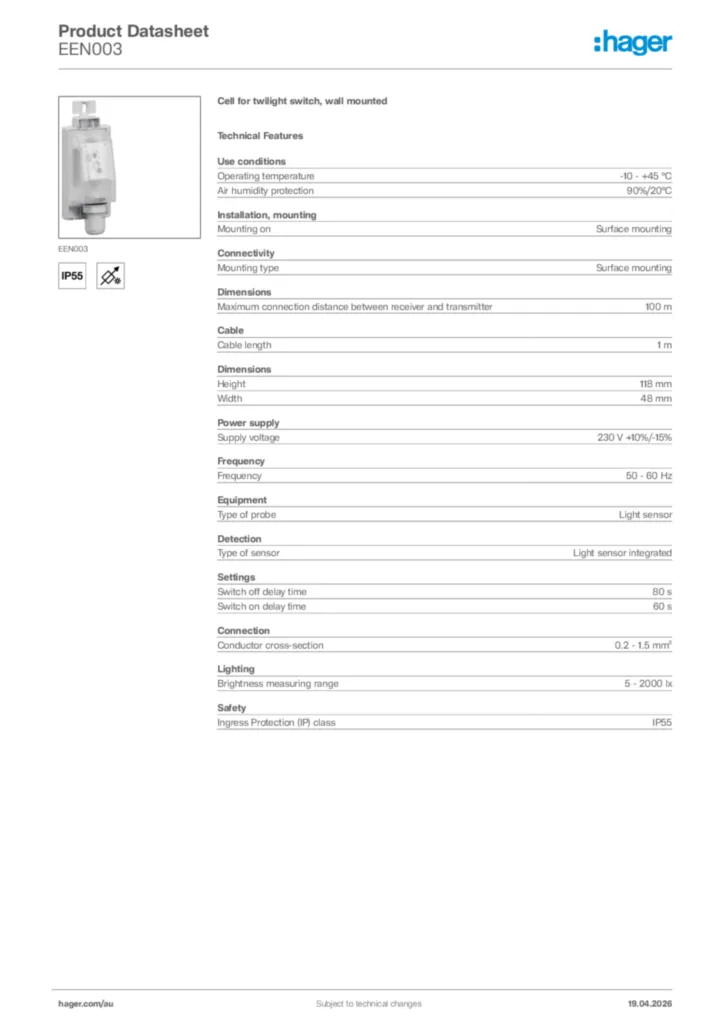

Hager Product data sheet EEN003
