Hager The Hager daily time switch, 1-channel 3-module, automates circuits on a 24-hour schedule with 15-minute steps. A change-over contact at 230-240 V/50 Hz controls up to 1100 W incandescent/halogen or 180 W LED (3 A cosφ 0.6). Durable 50,000 cycles, low 0.9 W consumption, −20 to +55 °C. DIN-rail mounting with screw terminals (0.5-6 mm²) for lighting, heating or ventilation control.
EAN
3250617201070
Packaging
1 Piece
Time switch 1 channel 230V 24h 15 min change-over 3 modules DIN rail EHN110
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Equipment
-
Number of channels1
Frequency
-
Frequency50 - 50 Hz
Power
-
Power consumption during operation0,9 W
-
230 V incandescent and halogen lamp1100 W
-
Power incandescent lamp900 - 900 W
-
Power loss at full load1 W
Functions
-
Number of function channels1
Connection
-
Number of contacts1
-
Cross-section flexible conductor0.5 - 6 mm²
-
Cross-section rigid conductor0.5 - 6 mm²
Use conditions
-
Operating temperature-20 - +55 °C
Capacity
-
Number of modules3
Dimensions
-
Height90 mm
-
Width54 mm
-
Depth60 mm
Texts
-
Switch modeChange-over contact
-
Installation modeFor mounting on DIN rail
-
Type of connectionWith screw terminals
Electric current
-
Max. power (cos phi 0,6)3 A
Endurance
-
Electrical durability at nominal load in AC1 in operating cycles50000
Voltage
-
Rated operational voltage Ue230 - 240 V
Settings
-
Programme cyclesProgramme cycle: 24 hours
-
Shortest switching time15 min
Lighting
-
LED lamp power180 W
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

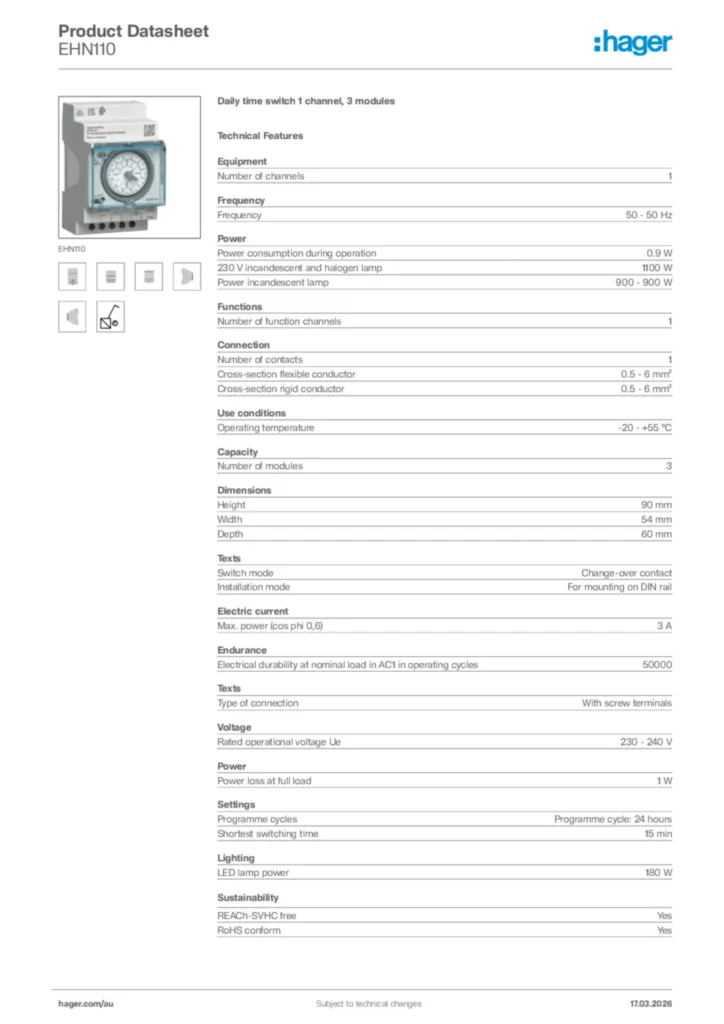

Hager Product data sheet EHN110
