The Hager KB 13A Twin Switched Socket with 2 USB provides safe, convenient power and charging for homes and offices. Two BS sockets (13A, 230 V, 50-60 Hz) plus dual USB-A delivering up to 2.4 A cut charger clutter. Flush, screw-mounted with screw terminals (0.08-4 mm²) for quick install. Knight Black matt polycarbonate, IP20, IK02, with just 0.15 W standby. Ideal for kitchens, bedrooms, and workspaces.
EAN
3250617272742
VPE
10 pieces
Twin Switched Socket 13A + 2x USB 2.4A 230V BS Flush Mount White WGMS213SUSBKB
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
catalog.product_page.variants.title
Product colour - Knight black
Technical characteristics
Voltage
-
Rated voltage230 V
-
Output voltage0-0 V
Electric current
-
Output current2400 mA
-
Rated current IN13 A
Frequency
-
Frequency50 - 60 Hz
Power
-
Output power0
-
Power consumption standby0.15 W
Materials
-
ColourKnight black
-
Surface finishMatt
-
MaterialPolycarbonate (PC)
-
TreatmentCoated
-
Contains recycled material (% of total plastic weight)0
Dimensions
-
Height20 mm
-
Width86 mm
-
Depth20 mm
-
Built-in depth flush-mounted boxes35 mm
-
Built-in depth20 mm
Cable
-
Cable length0 m
Connection
-
Connector/plug typeBritish Standard
-
Cross-section flexible conductor without wire end sleeve0.08 - 4 mm²
-
Number of conduit inlets0
Installation, mounting
-
Mounting onFlush mounting
-
Mounting-/Connection PositionBack
Connectivity
-
Type of connectionScrew terminal
-
With claw mountingNo
-
Mounting typeScrew mounting
-
Connector/plug type USBA+A
Equipment
-
Connector/plug type socket outletBritish Standard
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
-
Pre-equipped withNone
Capacity
-
Number of modules0
Safety
-
With enhanced contact protectionNo
-
Impact resistance IKIK02
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
Identification
-
With imprintNo
-
Related Systemsshark
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

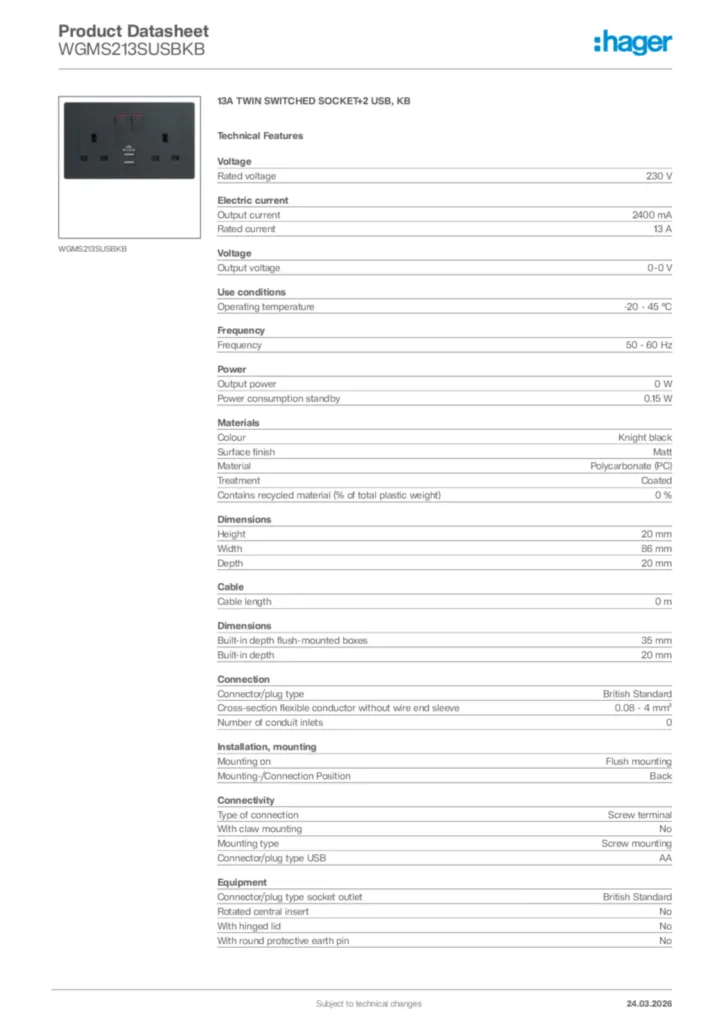

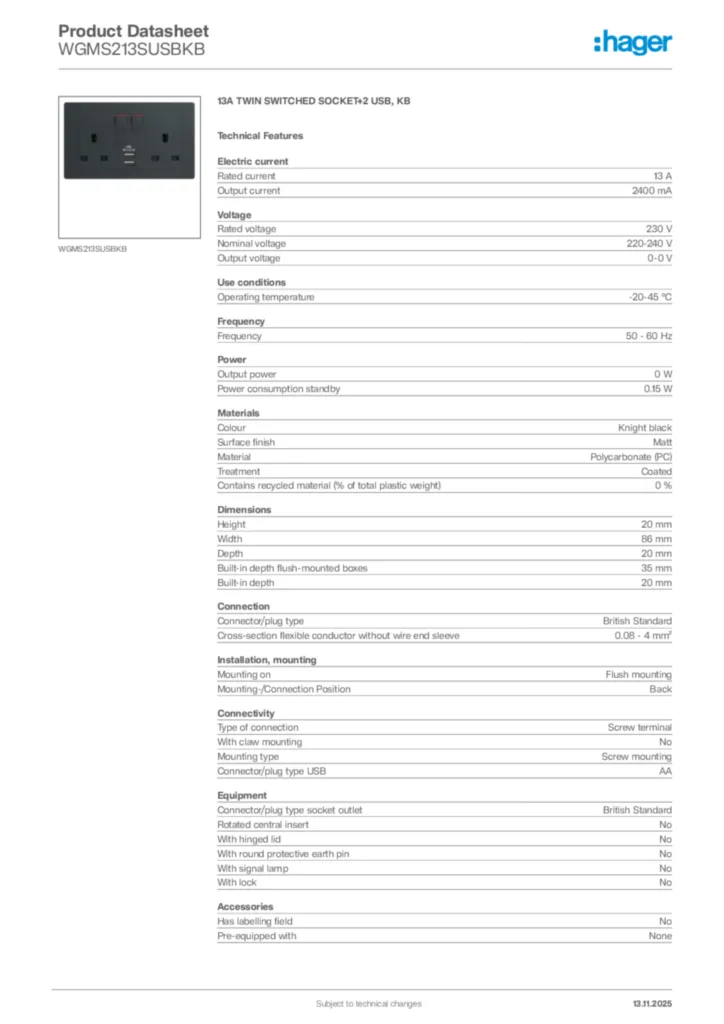

Hager Product data sheet WGMS213SUSBKB
13A TWIN SWITCHED SOCKET+2 USB, KB
PDF -
ProductECDeclaration
Declaration
Declaration of conformity en-GB 2022-12-29
PDF105,27 kB
More documentation
