The Hager 13A Twin Switched Socket with LED delivers dependable, BS-compliant power for indoor use. Rated 250 V, 13 A, 50-60 Hz, it offers independent switching with LED status indication. Durable glossy white polycarbonate faceplate, screw terminals for 0.08-4 mm² conductors, and flush screw mounting. IP20, IK02. Ideal for residential and light commercial applications.

EAN

3250617298391

Packaging

Muse - Socket outlets

Twin Switched Socket 13A 250V British Standard, Screw Terminal, Flush Mount WGMS213SN

Name: WGMS213SN
Brand: Hager
SKU: WGMS213SN

Also available in

On/off switch

No Yes

Technical properties
Environmental value
Documentations
More products

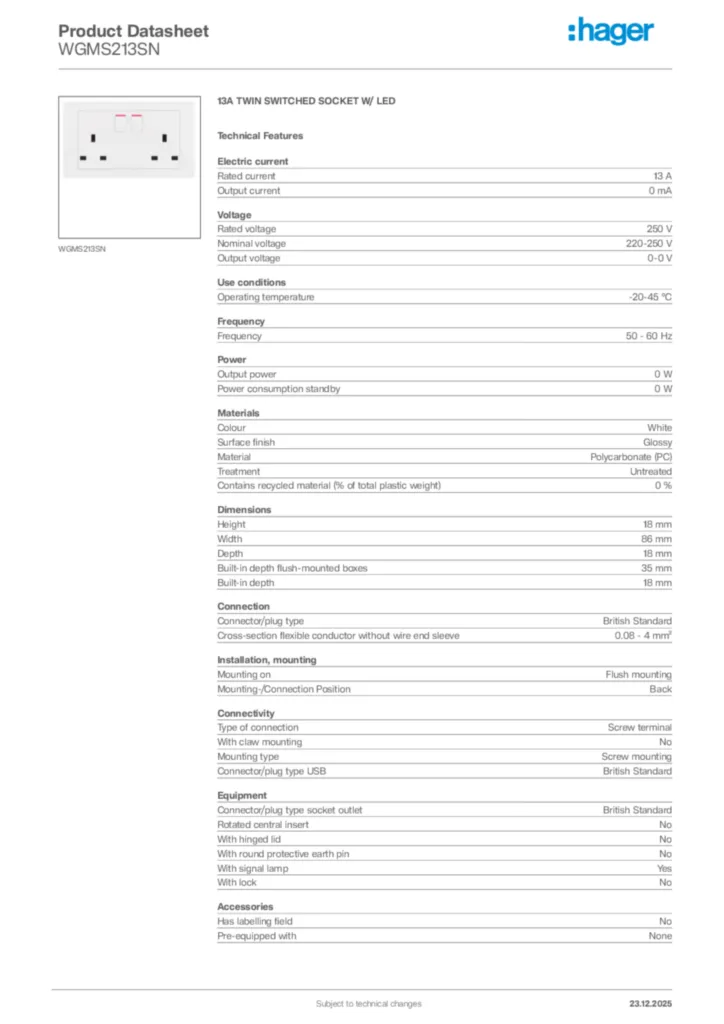

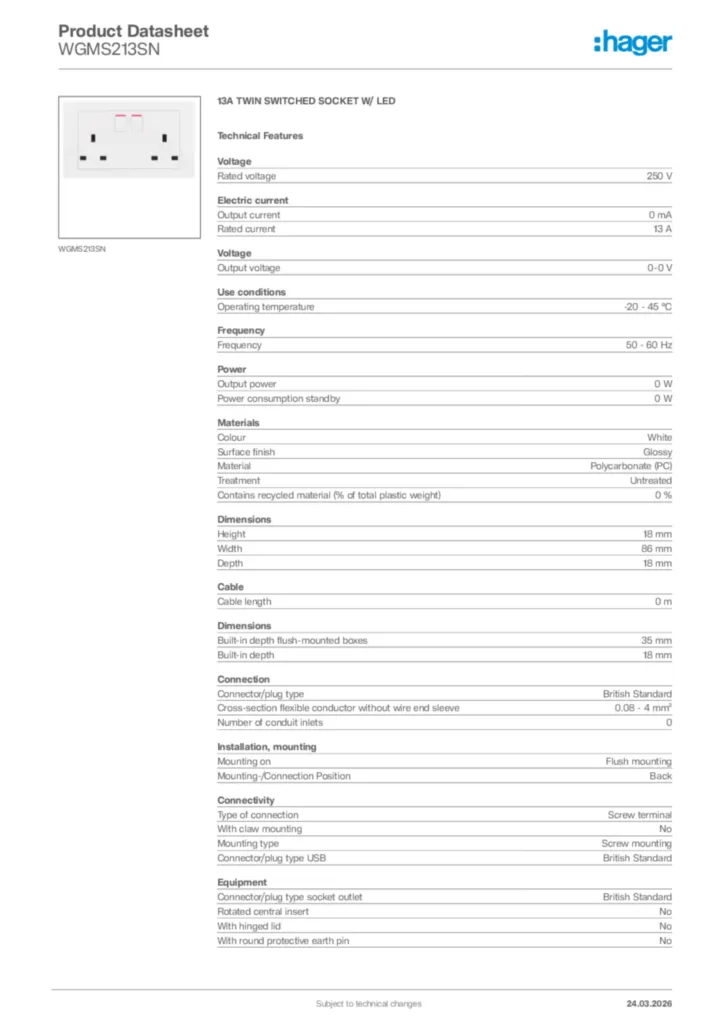

Download the data sheet

Technical properties

Rated voltage

250 V
Output voltage

0-0 V

Output current

0
Rated current

13 A

Frequency

50 - 60 Hz

Output power

0
Power consumption standby

0

Colour

White
Surface finish

Glossy
Material

Polycarbonate (PC)
Treatment

Untreated
Contains recycled material (% of total plastic weight)

0

Height

18 mm
Width

86 mm
Depth

18 mm
Built-in depth flush-mounted boxes

35 mm
Built-in depth

18 mm

Cable length

0

Connector/plug type

British Standard
Cross-section flexible conductor without wire end sleeve

0.08 - 4 mm²
Number of conduit inlets

0

Mounting on

Flush mounting
Mounting-/Connection Position

Back

Type of connection

Screw terminal
With claw mounting

No
Mounting type

Screw mounting
Connector/plug type USB

British Standard

Connector/plug type socket outlet

British Standard
Rotated central insert

No
With hinged lid

No
With round protective earth pin

No
With signal lamp

Yes
With lock

No

Has labelling field

No
Pre-equipped with

None

Number of modules

0

Type of lighting for the installation devices

Operating control light only with lighting accessories

With enhanced contact protection

No
Impact resistance IK

IK02
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

shark

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

REACh-SVHC free Yes
