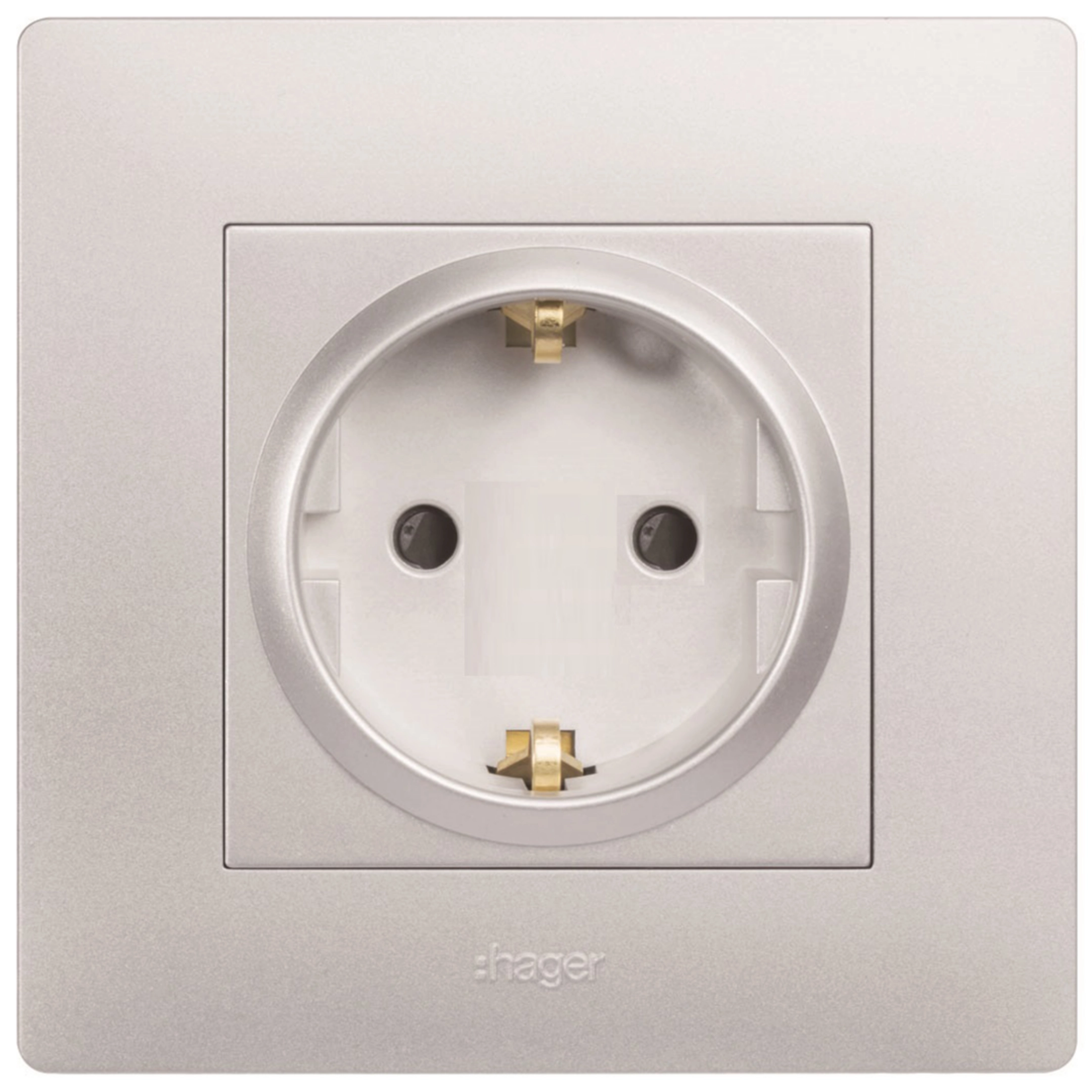

The Hager 16A German socket with shutter delivers safe, reliable power for residential and light commercial interiors. Rated 250V, 16A, 50-60Hz, it features child-protective shutters, robust polycarbonate (IK02), IP20 indoor safety, and a sleek Aurora Silver matt finish. Flush-mounted with screw terminals (0.08-4 mm²) and 30 mm built-in depth for 35 mm boxes, it ensures secure wiring and a clean, space-saving look.

EAN

3250617272698

Packaging

Muse - Socket outlets

Single BS socket outlet 16A with USB-A 2.4A charger 230V flush mount White WGMS116SAS

Name: WGMS116SAS
Brand: Hager
SKU: WGMS116SAS

Also available in

Product colour - Aurora silver

On/off switch

No Yes

Technical properties
Environmental value
Documentations
More products

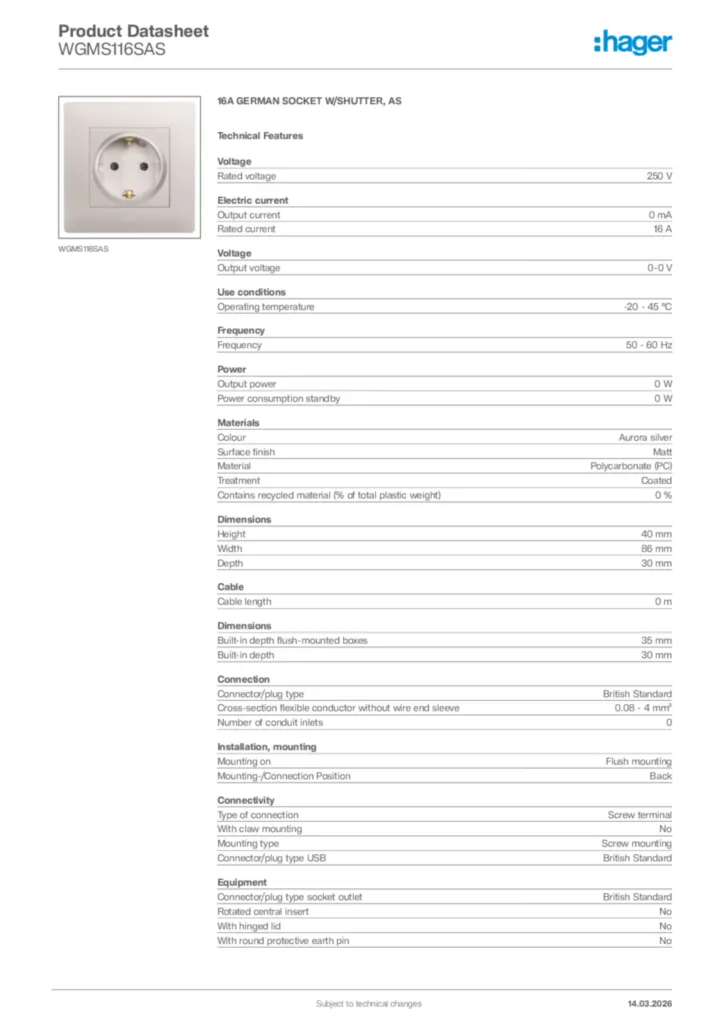

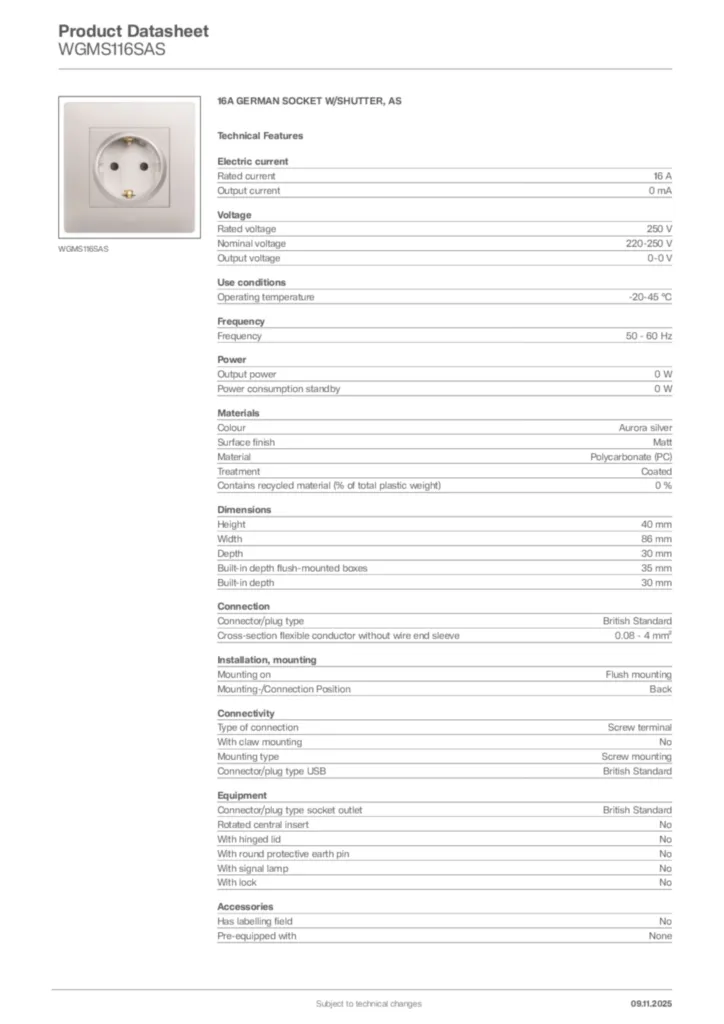

Download the data sheet

Technical properties

Rated voltage

250 V
Output voltage

0-0 V

Output current

0
Rated current

16 A

Frequency

50 - 60 Hz

Output power

0
Power consumption standby

0

Colour

Aurora silver
Surface finish

Matt
Material

Polycarbonate (PC)
Treatment

Coated
Contains recycled material (% of total plastic weight)

0

Height

40 mm
Width

86 mm
Depth

30 mm
Built-in depth flush-mounted boxes

35 mm
Built-in depth

30 mm

Cable length

0

Connector/plug type

British Standard
Cross-section flexible conductor without wire end sleeve

0.08 - 4 mm²
Number of conduit inlets

0

Mounting on

Flush mounting
Mounting-/Connection Position

Back

Type of connection

Screw terminal
With claw mounting

No
Mounting type

Screw mounting
Connector/plug type USB

British Standard

Connector/plug type socket outlet

British Standard
Rotated central insert

No
With hinged lid

No
With round protective earth pin

No
With signal lamp

No
With lock

No

Has labelling field

No
Pre-equipped with

None

Number of modules

0

With enhanced contact protection

No
Impact resistance IK

IK02
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

shark

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
