    • WGMS113SUSB
    The Hager 13A Single Switched Socket with USB combines a BS 13A outlet and integrated 2.4A USB-A charging for convenient power and device charging in one point. Rated 230 V, 50-60 Hz, it suits residential and light commercial use. Flush-mounted glossy white polycarbonate, IP20, IK02. Screw terminals for secure wiring, switch for safe isolation, and low 0.15 W standby consumption.
    EAN
    3250617507905
    Packaging
    8
    • Muse - Socket outlets

    Single Switched Socket 13A 250V BS Knight Black Matt Flush Mount WGMS113SUSB

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Single Switched Socket 13A 250V BS Knight Black Matt Flush Mount

    WGMS113SUSB

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Voltage
    • Rated voltage
      230 V
    • Output voltage
      0-0 V
    Elec­tric current
    • Output current
      2400 mA
    • Rated current IN
      13 A
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Output power
      0
    • Power consump­tion standby
      0.15 W
    Mater­ials
    • Colour
      White
    • Surface finish
      Glossy
    • Material
      Polycar­bonate (PC)
    • Treat­ment
      Untreated
    • Contains recycled material (% of total plastic weight)
      0
    Dimen­sions
    • Height
      28 mm
    • Width
      86 mm
    • Depth
      28 mm
    • Built-in depth flush-­mounted boxes
      35 mm
    • Built-in depth
      28 mm
    Cable
    • Cable length
      0 m
    Connec­tion
    • Connect­or/plug type
      British Standard
    • Cross-sec­tion flex­ible conductor without wire end sleeve
      0.08 - 4 mm²
    • Number of conduit inlets
      0
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    • Mount­ing-/­Con­nec­tion Posi­tion
      Back
    Connectivity
    • Type of connec­tion
      Screw terminal
    • With claw mounting
      No
    • Mounting type
      Screw mounting
    • Connect­or/plug type USB
      AA
    Equip­ment
    • Connect­or/plug type socket outlet
      British Standard
    • Rotated central insert
      Yes
    • With hinged lid
      No
    • With round protective earth pin
      No
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      No
    • Pre-equipped with
      None
    Capa­city
    • Number of modules
      0
    Safety
    • With enhanced contact protec­tion
      No
    • Impact resist­ance IK
      IK02
    • Ingress Protec­tion (IP) class
      IP20
    Func­tions
    • With orient­a­tion lighting
      No
    • With func­tion lighting
      No
    Iden­ti­fic­a­tion
    • With imprint
      No
    • Related Systems
      shark

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    REACH declaration WGMS113SUSB
    PDF
    RoHS report WGMS113SUSB
    PDF

    Downloads

    • Image WGMS113SUSB | Hager Africa

      Product Image WGMS113SUSB

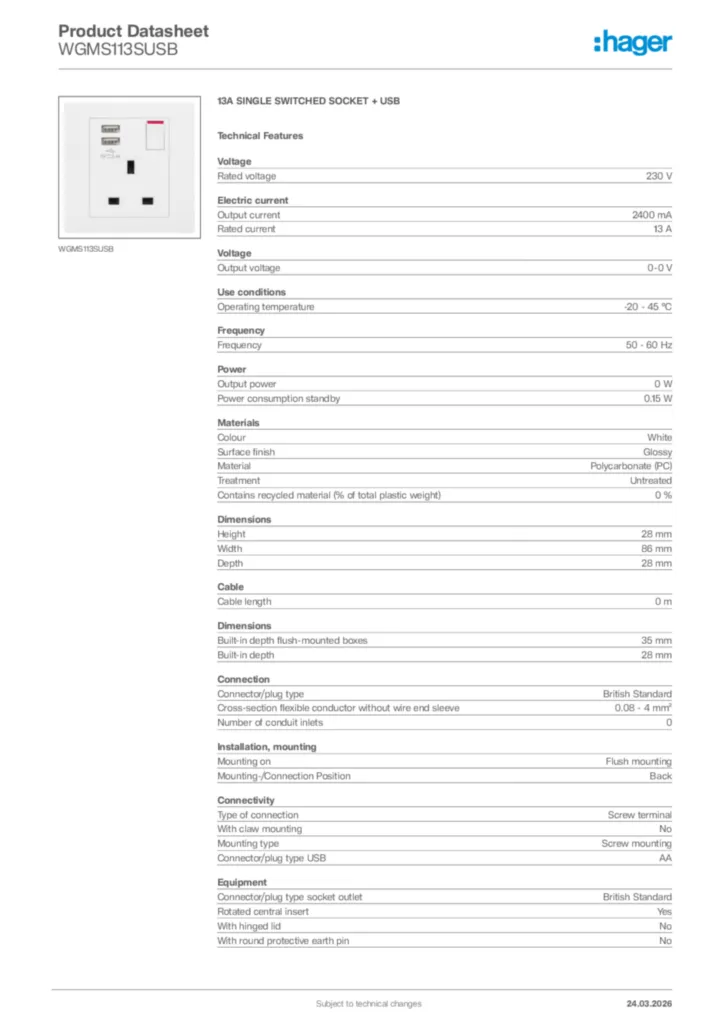

    • Product datasheet

      Image Hager Product data sheet WGMS113SUSB | Hager Africa

      Hager Product data sheet WGMS113SUSB

      13A SINGLE SWITCHED SOCKET + USB

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity en-GB 2022-12-29

      PDF
      107,49 kB
