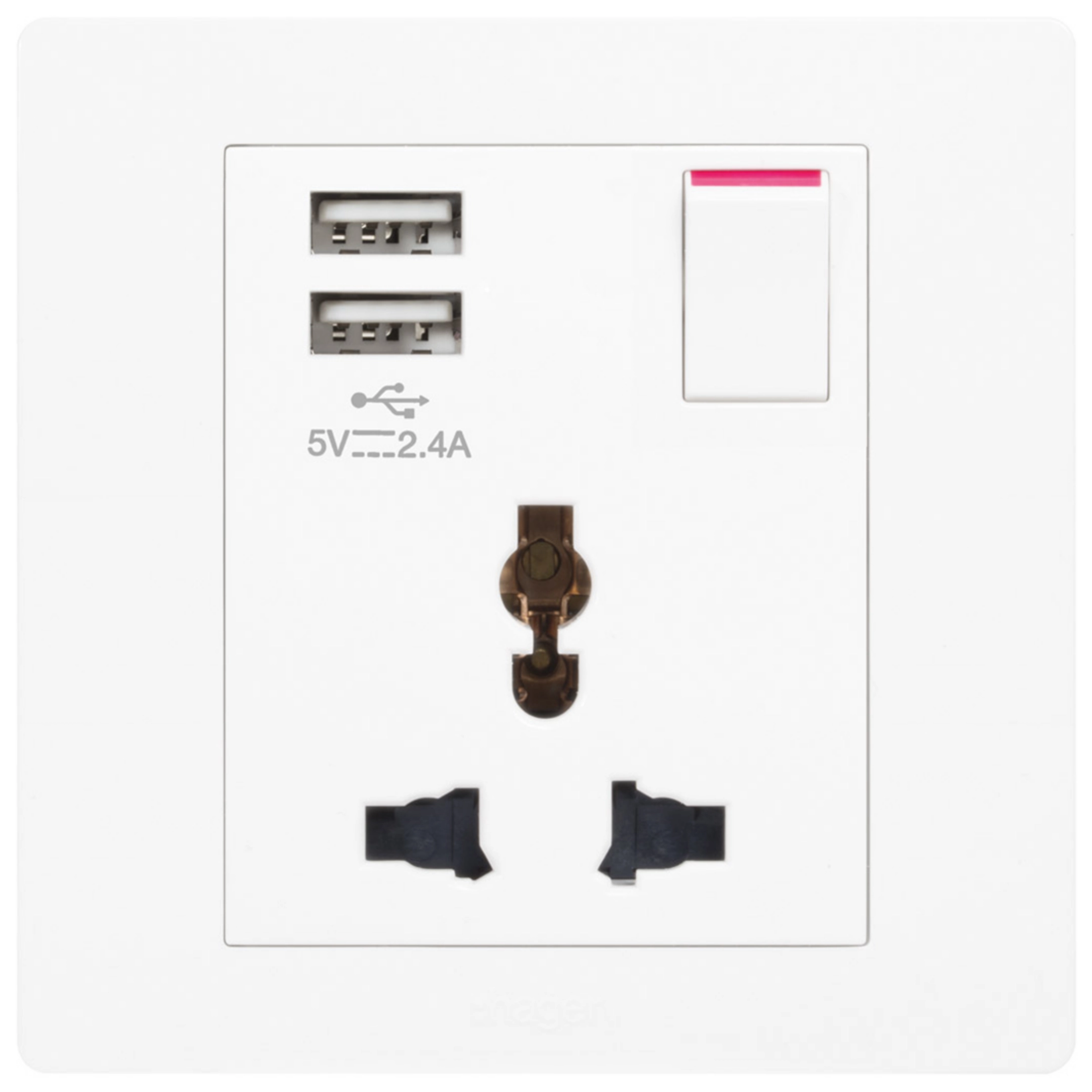

    The Hager 16A Single British Standard socket with integrated USB charger (2.4A) provides safe 230V power and fast device charging in one outlet, ideal for homes and offices. Flush-mounted with screw terminals for easy, secure install, in a white glossy polycarbonate finish. Low 0.15W standby, IP20, IK02. Compact 86×29×29 mm; fits 35 mm back boxes. Frees sockets from bulky adapters and optimizes space.
    EAN
    3250617507936
    Packaging
    8
    • Muse - Socket outlets

    Universal Socket Single Switched 16A 250V BS Knight Black Flush IP20 WGMS116ISUSB

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Universal Socket Single Switched 16A 250V BS Knight Black Flush IP20

    WGMS116ISUSB

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Voltage
    • Rated voltage
      230 V
    • Output voltage
      0-0 V
    Elec­tric current
    • Output current
      2400 mA
    • Rated current
      16 A
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Output power
      0
    • Power consump­tion standby
      0.15 W
    Mater­ials
    • Colour
      White
    • Surface finish
      Glossy
    • Material
      Polycar­bonate (PC)
    • Treat­ment
      Untreated
    • Contains recycled material (% of total plastic weight)
      0
    Dimen­sions
    • Height
      29 mm
    • Width
      86 mm
    • Depth
      29 mm
    • Built-in depth flush-­mounted boxes
      35 mm
    • Built-in depth
      29 mm
    Cable
    • Cable length
      0
    Connec­tion
    • Connect­or/plug type
      British Standard
    • Cross-sec­tion flex­ible conductor without wire end sleeve
      0.08 - 4 mm²
    • Number of conduit inlets
      0
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    • Mount­ing-/­Con­nec­tion Posi­tion
      Back
    Connectivity
    • Type of connec­tion
      Screw terminal
    • With claw mounting
      No
    • Mounting type
      Screw mounting
    • Connect­or/plug type USB
      AA
    Equip­ment
    • Connect­or/plug type socket outlet
      British Standard
    • Rotated central insert
      No
    • With hinged lid
      No
    • With round protective earth pin
      No
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      No
    • Pre-equipped with
      None
    Capa­city
    • Number of modules
      0
    Safety
    • With enhanced contact protec­tion
      No
    • Impact resist­ance IK
      IK02
    • Ingress Protec­tion (IP) class
      IP20
    Func­tions
    • With orient­a­tion lighting
      No
    • With func­tion lighting
      No
    Iden­ti­fic­a­tion
    • With imprint
      No
    • Related Systems
      shark

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration WGMS116ISUSB
    PDF
    RoHS report WGMS116ISUSB
    PDF

    Downloads

    • Image WGMS116ISUSB | Hager Africa

      Product Image WGMS116ISUSB

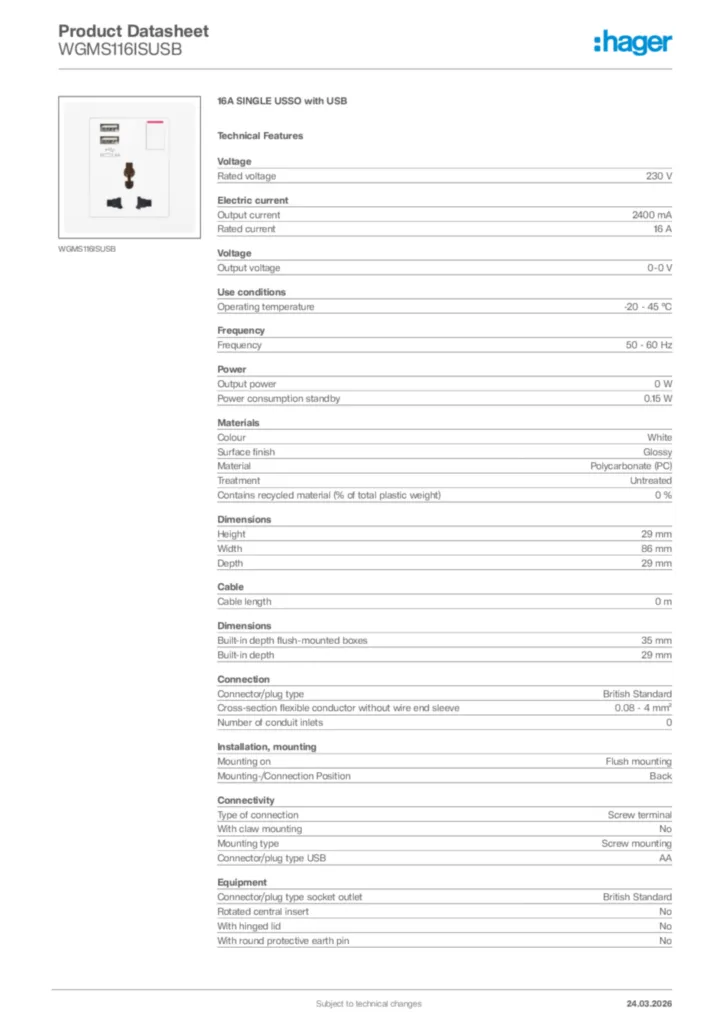

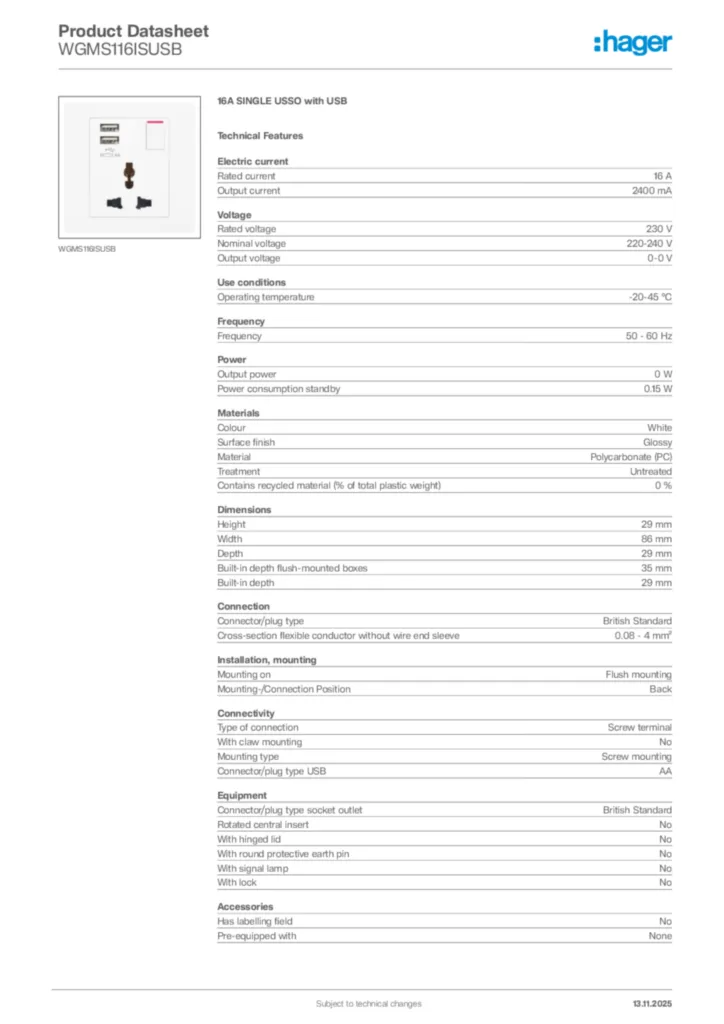

    • Product datasheet

      Image Hager Product data sheet WGMS116ISUSB | Hager Africa

      Hager Product data sheet WGMS116ISUSB

      16A SINGLE USSO with USB

      PDF

    • Declaration of conformity

      Image 20210719_16A_switched_universal_sockets_with_USBchargers | Hager Africa

      20210719_16A_switched_universal_sockets_with_USBchargers

      Declaration of conformity en-GB 2022-12-30

      PDF
      93,17 kB
