Hager 16A Single Switched Universal Socket in Aurora Silver provides reliable 250 V, 50-60 Hz supply with an integrated switch for safe control of British Standard plugs. Flush-mounted with screw terminals (0.08-4 mm²) and screw fixing for secure installation. Durable matt polycarbonate, IP20 and IK02 rated. Built-in depth 21 mm (35 mm box). Ideal for residential and light commercial use.

EAN

3250617272650

Packaging

Muse - Socket outlets

Universal socket single switched 16A 250V BS flush mount screw terminals IP20 WGMS116ISAS

Name: WGMS116ISAS
Brand: Hager
SKU: WGMS116ISAS

Also available in

Product colour - Aurora silver

On/off switch

No Yes

Technical properties
Environmental value
Documentations
More products

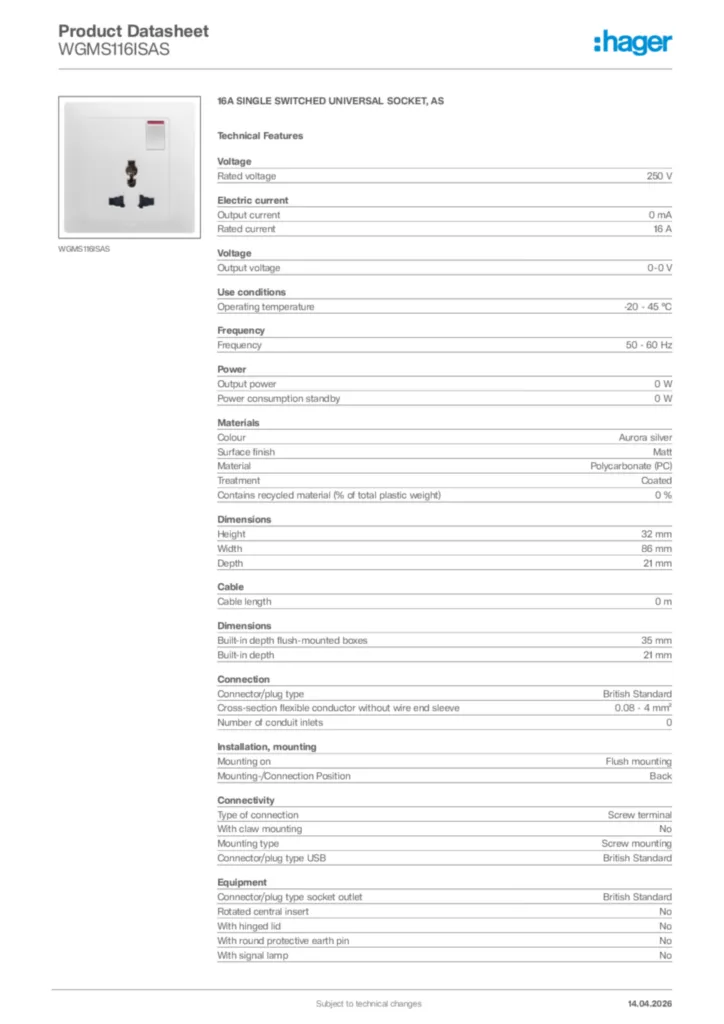

Download the data sheet

Technical properties

Rated voltage

250 V
Output voltage

0-0 V

Output current

0
Rated current

16 A

Frequency

50 - 60 Hz

Output power

0
Power consumption standby

0

Colour

Aurora silver
Surface finish

Matt
Material

Polycarbonate (PC)
Treatment

Coated
Contains recycled material (% of total plastic weight)

0

Height

32 mm
Width

86 mm
Depth

21 mm
Built-in depth flush-mounted boxes

35 mm
Built-in depth

21 mm

Cable length

0

Connector/plug type

British Standard
Cross-section flexible conductor without wire end sleeve

0.08 - 4 mm²
Number of conduit inlets

0

Mounting on

Flush mounting
Mounting-/Connection Position

Back

Type of connection

Screw terminal
With claw mounting

No
Mounting type

Screw mounting
Connector/plug type USB

British Standard

Connector/plug type socket outlet

British Standard
Rotated central insert

No
With hinged lid

No
With round protective earth pin

No
With signal lamp

No
With lock

No

Has labelling field

No
Pre-equipped with

None

Number of modules

0

With enhanced contact protection

No
Impact resistance IK

IK02
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

shark

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

REACh-SVHC free Yes
