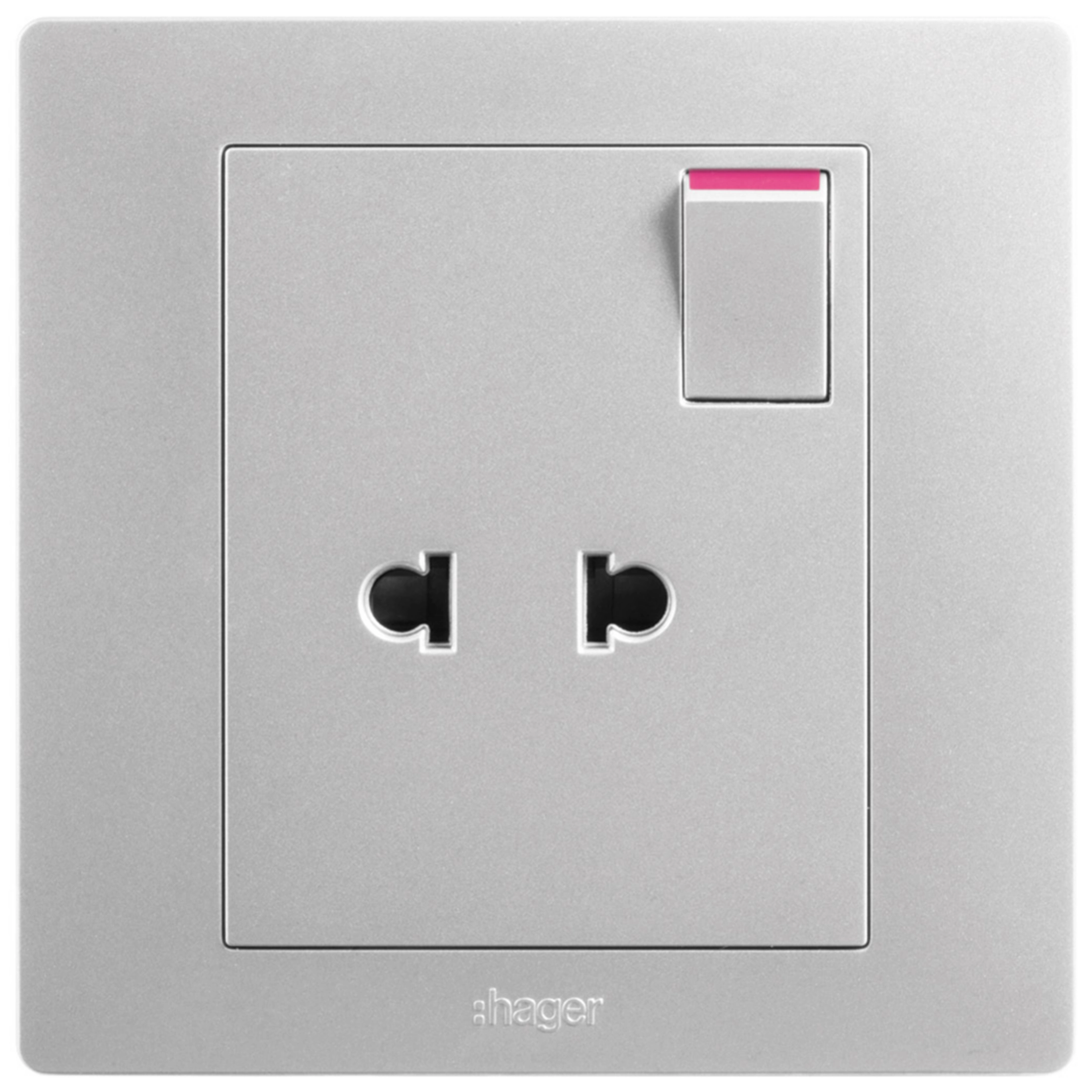

The Hager 10A 2‑pin switched socket in Aurora Silver provides a neat outlet for light‑duty devices. Rated 250 V~ 50/60 Hz and 10 A, it suits residential and commercial interiors on British Standard systems. Flush‑mounted with a matt polycarbonate front, IP20 and IK02, it uses screw terminals for 0.08-4 mm² conductors. The integral switch delivers convenient local isolation and added safety.
EAN
3250617279758
Packaging
10
Switched 2-pin Socket 10A 250V British Standard Flush Mount IP20 WGMS110USAS
Login to create a product list
You need to be logged into your myHager account to create product lists
Also available in
Product colour - Aurora silver
On/off switch
Technical properties
Voltage
-
Rated voltage250 V
-
Output voltage0-0 V
Electric current
-
Output current0
-
Rated current10 A
Frequency
-
Frequency50 - 60 Hz
Power
-
Output power0
-
Power consumption standby0
Materials
-
ColourAurora silver
-
Surface finishMatt
-
MaterialPolycarbonate (PC)
-
TreatmentCoated
-
Contains recycled material (% of total plastic weight)0
Dimensions
-
Height30 mm
-
Width86 mm
-
Depth20 mm
-
Built-in depth flush-mounted boxes35 mm
-
Built-in depth20 mm
Cable
-
Cable length0
Connection
-
Connector/plug typeBritish Standard
-
Cross-section flexible conductor without wire end sleeve0.08 - 4 mm²
-
Number of conduit inlets0
Installation, mounting
-
Mounting onFlush mounting
-
Mounting-/Connection PositionBack
Connectivity
-
Type of connectionScrew terminal
-
With claw mountingNo
-
Mounting typeScrew mounting
-
Connector/plug type USBBritish Standard
Equipment
-
Connector/plug type socket outletBritish Standard
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
-
Pre-equipped withNone
Capacity
-
Number of modules0
Safety
-
With enhanced contact protectionNo
-
Impact resistance IKIK02
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
Identification
-
With imprintNo
-
Related Systemsshark
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

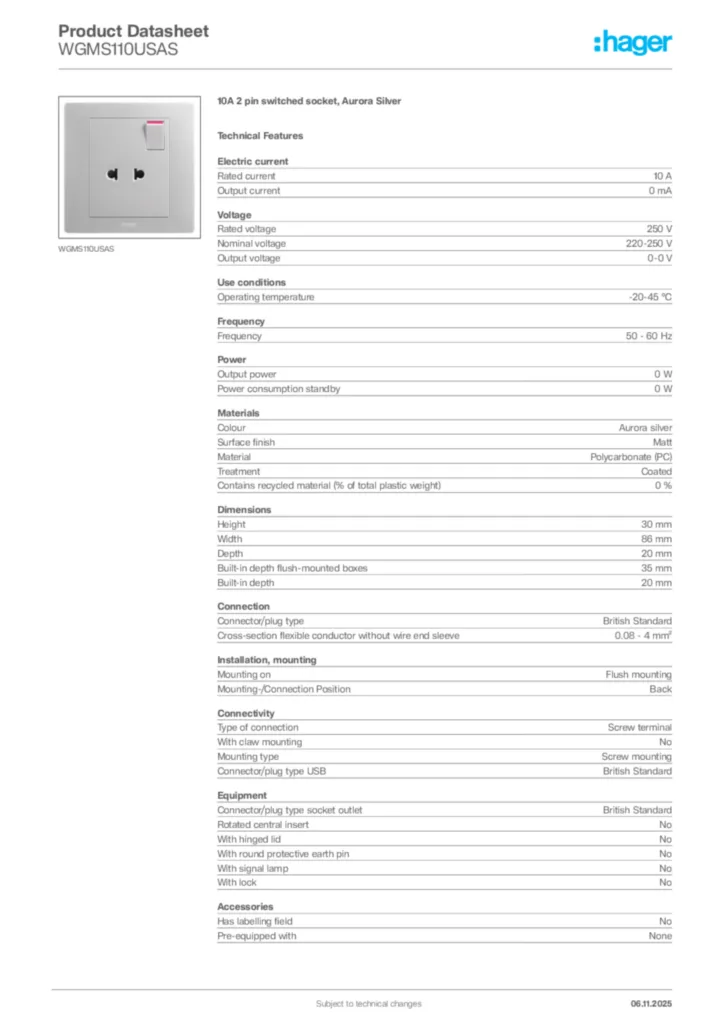

Product datasheet

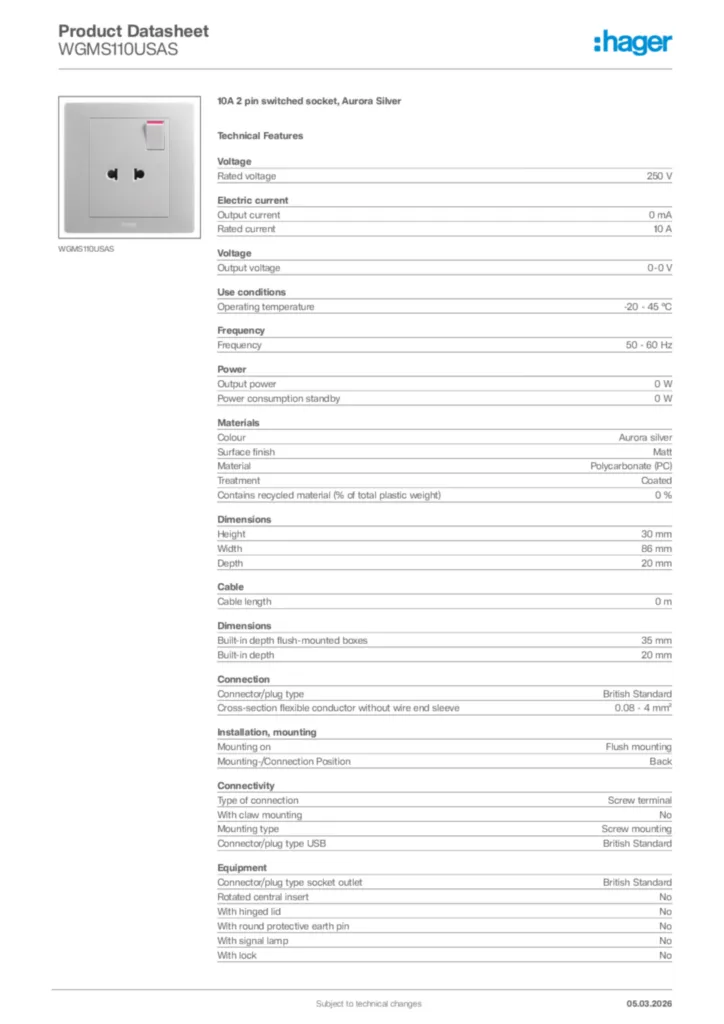

Hager Product data sheet WGMS110USAS
10A 2 pin switched socket, Aurora Silver
PDF -
Declaration of conformity
20210719_EU_declaration_for_10A_2_Pins_switched_universal_socket
Declaration of conformity en-GB 2022-12-29
PDF91,15 kB
Declaration
Declaration of conformity en-GB 2022-12-21
PDF91,15 kB
