The Hager 16A single British Standard socket with integrated USB charger combines mains power and 2.4A USB charging in one flush-mounted unit. Rated 230 V, 50-60 Hz, it suits homes and hospitality, saving space while keeping devices powered. Screw terminals and screw mounting ease installation. IP20 and IK02 with a coated matt bronze PC finish for durability and style. Low standby consumption of 0.15 W.
EAN
3250617271882
Packaging
8
Single British socket 16A + USB charger 2.4A 230V Knight Black flush mount WGCXS116ISUSBNB
Login to create a product list
You need to be logged into your myHager account to create product lists
Also available in
Product colour - Bronze
Complete your system
Optional accessories
-
Cover frame for domestic switching devices 7 products available
Compatible products
-
Referenced by 33 products available
Referenced by
-
WGCC1SEG1G frame (square);eg
-
WGCCH5AS5G multi-gang frame (horizontal);as
-
WGCCH5EG5G multi-gang frame (horizontal);eg
-
WGCCH5KB5G multi-gang frame (horizontal);kb
-
WGCCH5NB5G multi-gang frame (horizontal);nb
-
WGCCV2KB2G frame (vertical);kb
-
WGCCV3KB3G frame (vertical);kb
-
WGCC1S1G frame (square)
-
WGCC1SAS1G frame (square);as
-
WGCCH55G multi-gang frame (horizontal)
-
WGCC1SNB1G frame (square);nb
-
WGCCV2AS2G frame (vertical);as
-
WGCCV2EG2G frame (vertical);eg
-
WGCCV2NB
2G frame (vertical);nb
-
WGCCV3AS3G frame (vertical);as
-
WGCCV3EG3G frame (vertical);eg
-
WGCCV3NB3G frame (vertical);nb
-
WGCC1SKB1G frame (square);kb
-
WGCCH4NB4G multi-gang frame (horizontal);nb
-
WGCCH4KB4G multi-gang frame (horizontal);kb

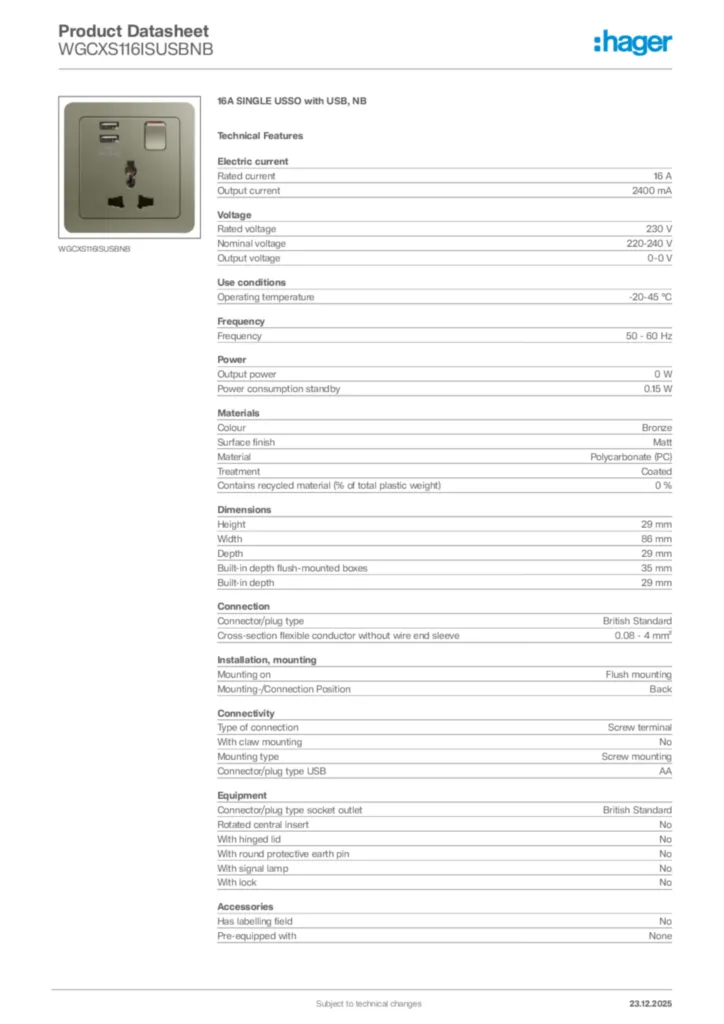

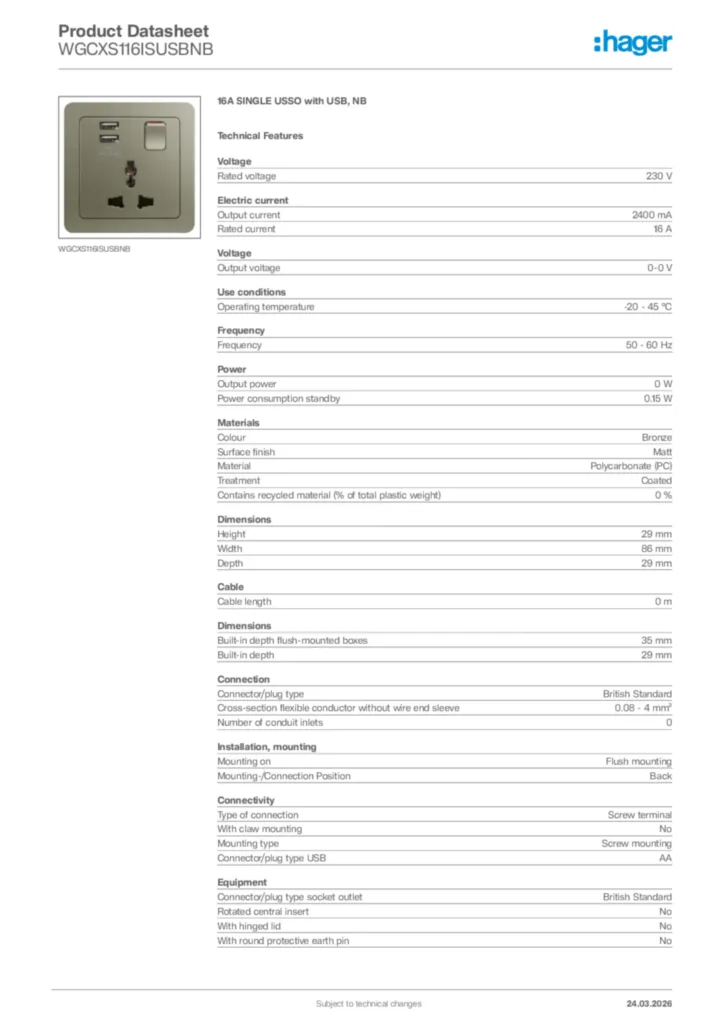

Technical properties
Voltage
-
Rated voltage230 V
-
Output voltage0-0 V
Electric current
-
Output current2400 mA
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Power
-
Output power0
-
Power consumption standby0.15 W
Materials
-
ColourBronze
-
Surface finishMatt
-
MaterialPolycarbonate (PC)
-
TreatmentCoated
-
Contains recycled material (% of total plastic weight)0
Dimensions
-
Height29 mm
-
Width86 mm
-
Depth29 mm
-
Built-in depth flush-mounted boxes35 mm
-
Built-in depth29 mm
Cable
-
Cable length0
Connection
-
Connector/plug typeBritish Standard
-
Cross-section flexible conductor without wire end sleeve0.08 - 4 mm²
-
Number of conduit inlets0
Installation, mounting
-
Mounting onFlush mounting
-
Mounting-/Connection PositionBack
Connectivity
-
Type of connectionScrew terminal
-
With claw mountingNo
-
Mounting typeScrew mounting
-
Connector/plug type USBAA
Equipment
-
Connector/plug type socket outletBritish Standard
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
-
Pre-equipped withNone
Capacity
-
Number of modules0
Safety
-
With enhanced contact protectionNo
-
Impact resistance IKIK02
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
Identification
-
With imprintNo
-
Related Systemsshark
