    The Hager 13A Single Switched Socket with USB delivers safe mains power and convenient device charging in one unit. The 13A British Standard outlet suits everyday appliances, while the integrated USB provides up to 2.4 A charging at 230 V, 50-60 Hz with just 0.15 W standby. Durable polycarbonate, glossy white finish, IP20/IK02. Flush, screw-mounted with secure screw terminals (0.08-4 mm²). Ideal for homes and offices.
    EAN
    3250617507653
    Packaging
    8
    • Inspire -socket outlets

    Single Switched Socket 13A 250V British Standard Screw Terminal Flush WGCS113SUSB

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Single Switched Socket 13A 250V British Standard Screw Terminal Flush

    WGCS113SUSB

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Voltage
    • Rated voltage
      230 V
    • Output voltage
      0-0 V
    Elec­tric current
    • Output current
      2400 mA
    • Rated current
      13 A
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Output power
      0
    • Power consump­tion standby
      0.15 W
    Mater­ials
    • Colour
      White
    • Surface finish
      Glossy
    • Material
      Polycar­bonate (PC)
    • Treat­ment
      Untreated
    • Contains recycled material (% of total plastic weight)
      0
    Dimen­sions
    • Height
      28 mm
    • Width
      86 mm
    • Depth
      28 mm
    • Built-in depth flush-­mounted boxes
      35 mm
    • Built-in depth
      28 mm
    Cable
    • Cable length
      0
    Connec­tion
    • Connect­or/plug type
      British Standard
    • Cross-sec­tion flex­ible conductor without wire end sleeve
      0.08 - 4 mm²
    • Number of conduit inlets
      0
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    • Mount­ing-/­Con­nec­tion Posi­tion
      Back
    Connectivity
    • Type of connec­tion
      Screw terminal
    • With claw mounting
      No
    • Mounting type
      Screw mounting
    • Connect­or/plug type USB
      AA
    Equip­ment
    • Connect­or/plug type socket outlet
      British Standard
    • Rotated central insert
      Yes
    • With hinged lid
      No
    • With round protective earth pin
      No
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      No
    • Pre-equipped with
      None
    Capa­city
    • Number of modules
      0
    Safety
    • With enhanced contact protec­tion
      No
    • Impact resist­ance IK
      IK02
    • Ingress Protec­tion (IP) class
      IP20
    Func­tions
    • With orient­a­tion lighting
      No
    • With func­tion lighting
      No
    Iden­ti­fic­a­tion
    • With imprint
      No
    • Related Systems
      shark

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration WGCS113SUSB
    PDF
    Hager RoHS report WGCS113SUSB
    PDF

    Downloads

    • Image WGCS113SUSB | Hager Africa

      Product Image WGCS113SUSB

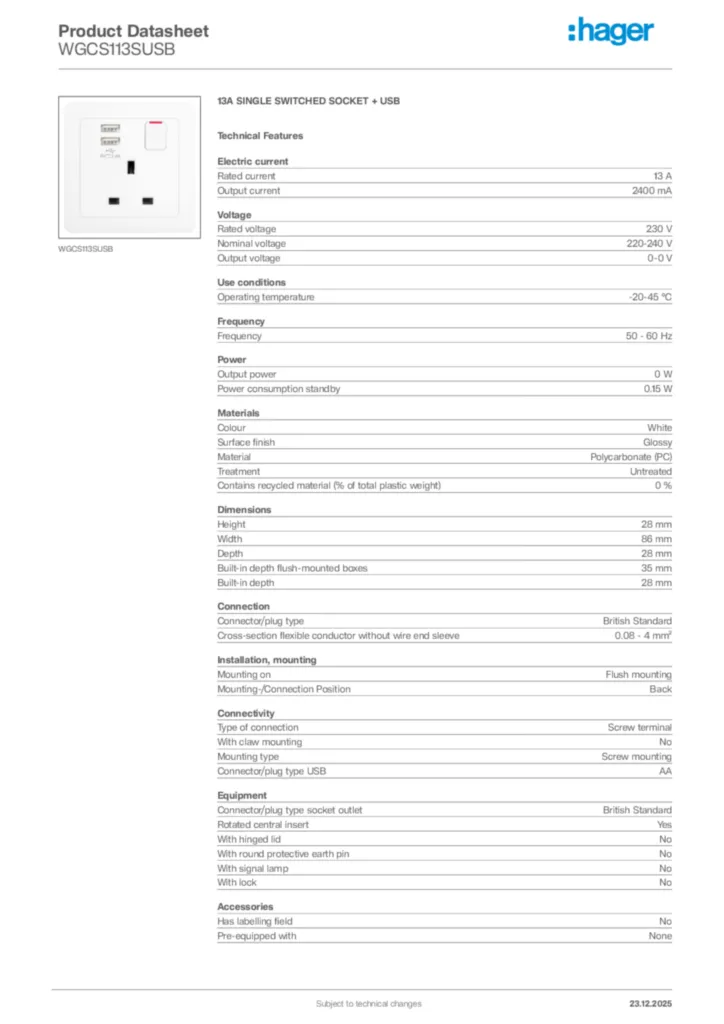

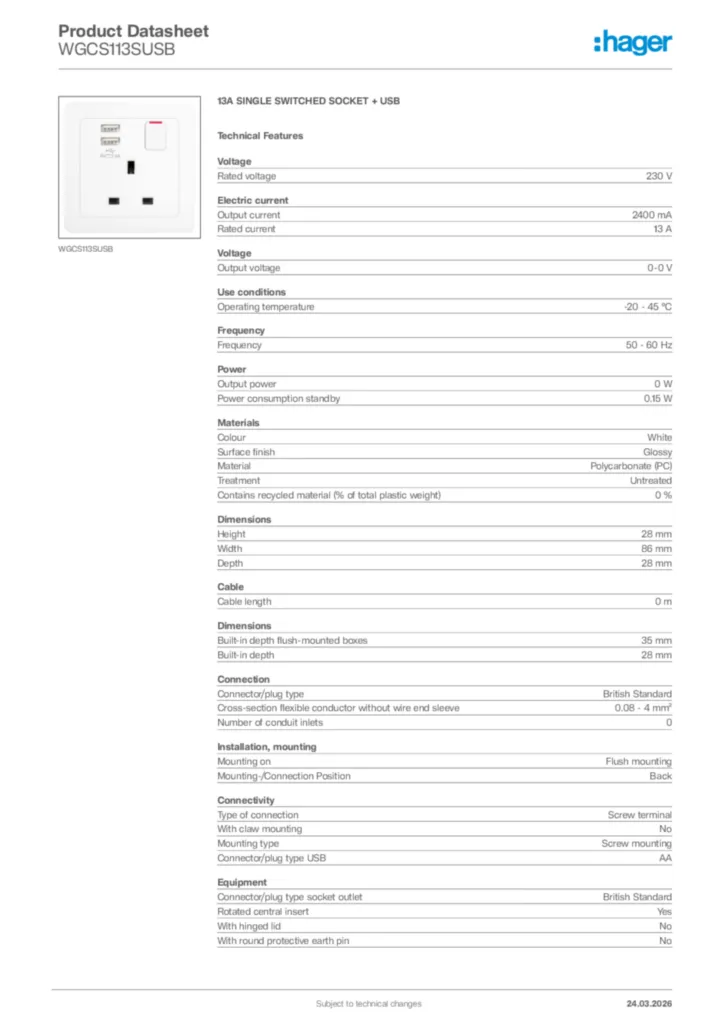

    • Product datasheet

      Image Hager Product data sheet WGCS113SUSB | Hager Africa

      Hager Product data sheet WGCS113SUSB

      13A SINGLE SWITCHED SOCKET + USB

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity en-GB 2022-12-29

      PDF
      107,49 kB
