The Hager 16A Single Switched Universal Socket (British Standard) provides safe, convenient 250 V, 50-60 Hz power distribution for residential and light commercial use. The integrated switch offers local isolation, while screw terminals enable quick, secure flush mounting. Durable glossy white polycarbonate, IP20 and IK02 rated. Compatible with Shark system. Ideal for everyday appliances up to 16 A.

EAN

3250617507677

Packaging

Inspire -socket outlets

Small distributor Golf surface 4-row 48M IP40 63A transparent door Class II WGCS116IS

Name: WGCS116IS
Brand: Hager
SKU: WGCS116IS

Also available in

On/off switch

No Yes

Accessories
Technical properties
Environmental value
Documentations
More products

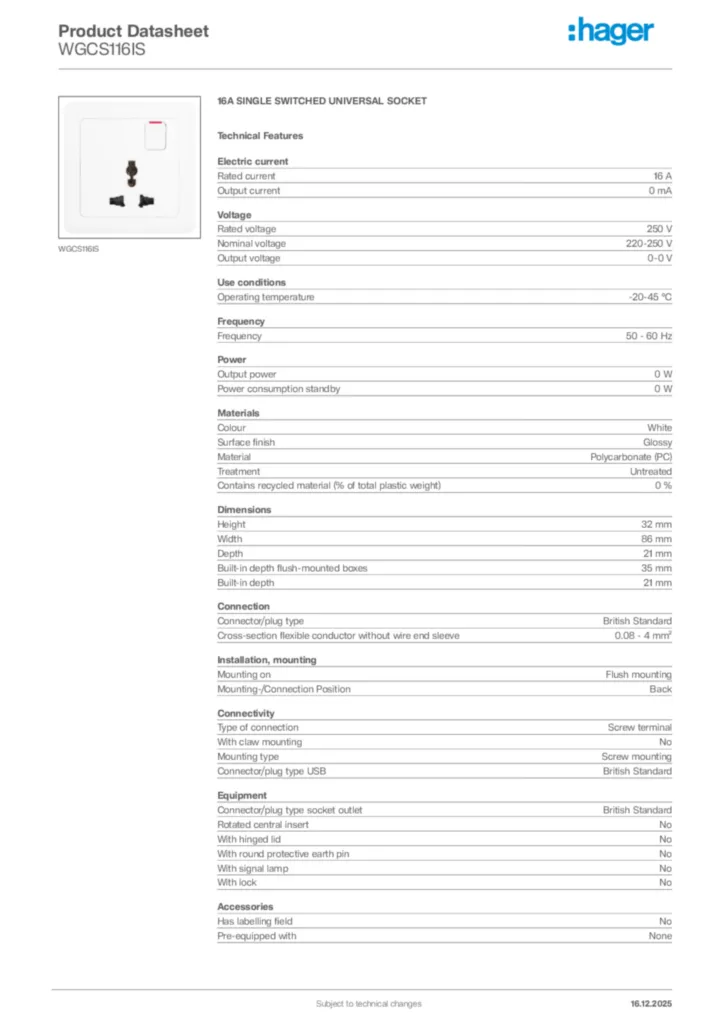

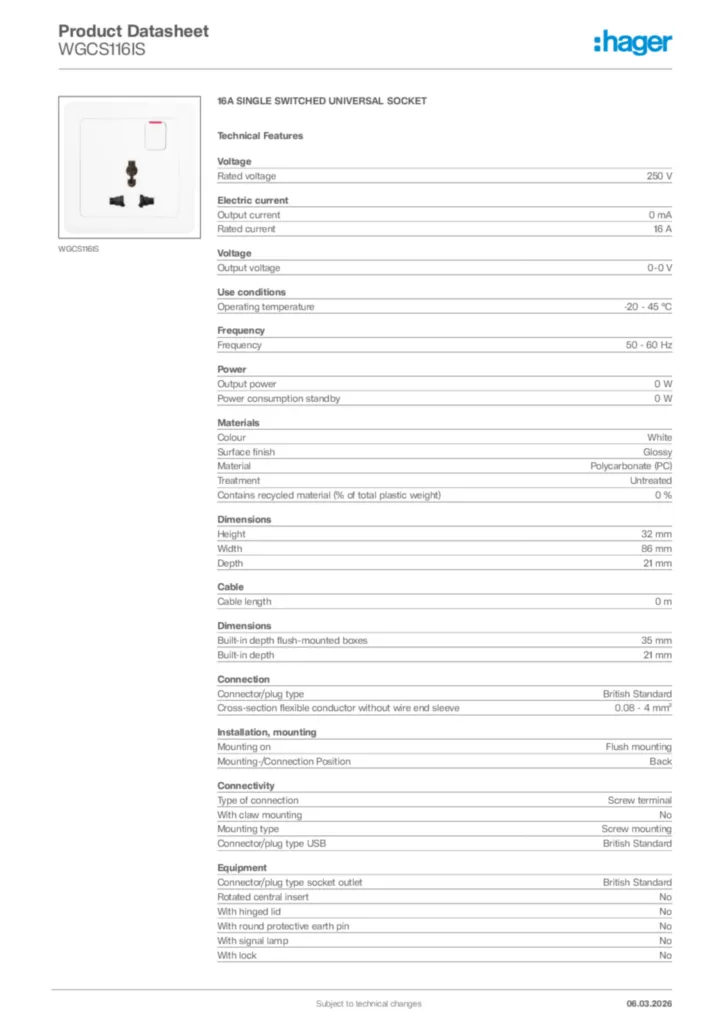

Download the data sheet

Complete your system

Cover frame for domestic switching devices 5 products available

Referenced by 5 products available

Technical properties

Rated voltage

250 V
Output voltage

0-0 V

Output current

0
Rated current

16 A

Frequency

50 - 60 Hz

Output power

0
Power consumption standby

0

Colour

White
Surface finish

Glossy
Material

Polycarbonate (PC)
Treatment

Untreated
Contains recycled material (% of total plastic weight)

0

Height

32 mm
Width

86 mm
Depth

21 mm
Built-in depth flush-mounted boxes

35 mm
Built-in depth

21 mm

Cable length

0

Connector/plug type

British Standard
Cross-section flexible conductor without wire end sleeve

0.08 - 4 mm²
Number of conduit inlets

0

Mounting on

Flush mounting
Mounting-/Connection Position

Back

Type of connection

Screw terminal
With claw mounting

No
Mounting type

Screw mounting
Connector/plug type USB

British Standard

Connector/plug type socket outlet

British Standard
Rotated central insert

No
With hinged lid

No
With round protective earth pin

No
With signal lamp

No
With lock

No

Has labelling field

No
Pre-equipped with

None

Number of modules

0

With enhanced contact protection

No
Impact resistance IK

IK02
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

shark

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

REACh-SVHC free Yes
