    EAN
    3250616410213
    Packaging
    1 Piece
    • volta enclos­ures

    Encl.,Volta,surface,1x12MOD,IP30,Version France VA12D

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Encl.,Volta,surface,1x12MOD,IP30,Version France

    VA12D

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Single- and multi-­pole 1 products available
    • Accessor­ies/s­pare parts for terminals 3 products available
    • Lock system 1 products available
    • Cover strip 2 products available
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip 1 products available

    Complete your system

    • Single- and multi-­pole
    • Accessor­ies/s­pare parts for terminals
    • Lock system
    • Cover strip
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • VZ428

      Terminal, Volta, additional terminal, 3Ph+N, 63A
      0.00 €  / *
    • VZ711

      Temrinal base, volta, for distributor size 12M, golf, vector, accessory
      0.00 €  / *
    • VZ523

      PE/N-Terminal support, Volta, with brass Terminals 22 connections
      0.00 €  / *
    • VZ524

      PE/N-Terminal support, Volta, with brass Terminals 25 connections
      0.00 €  / *
    • VZ302N

      Key lock, Volta, standard, for installation in door handle
      0.00 €  / *
    • P031F

      Cover strips, universal, for 1/2 module
      0.00 €  / *
    • P032F

      Cover strips, universal, for 1 module
      0.00 €  / *
    • VZ717

      Marking system, Volta, 10 pieces
      0.00 €  / *

    Technical properties

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      63 A
    Power
    • Maximum power loss per cabinet at ΔT=20K
      12.50 W
    Equip­ment
    • Number of rows
      1
    • With lock
      No
    • Has neutral terminal block
      No
    • Has mounting plate
      Yes
    Dimen­sions
    • Height
      245 mm
    • Width
      305 mm
    • Depth
      96.50 mm
    • Number of width units
      12
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    • Ultra­vi­olet-res­istant
      Yes
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      750 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
    PDF
    25,39 MB
    Hager REACH declaration VA12D
    PDF
    Hager RoHS report VA12D
    PDF

    Downloads

    • Image VA12D | Hager Africa

      Product Image VA12D

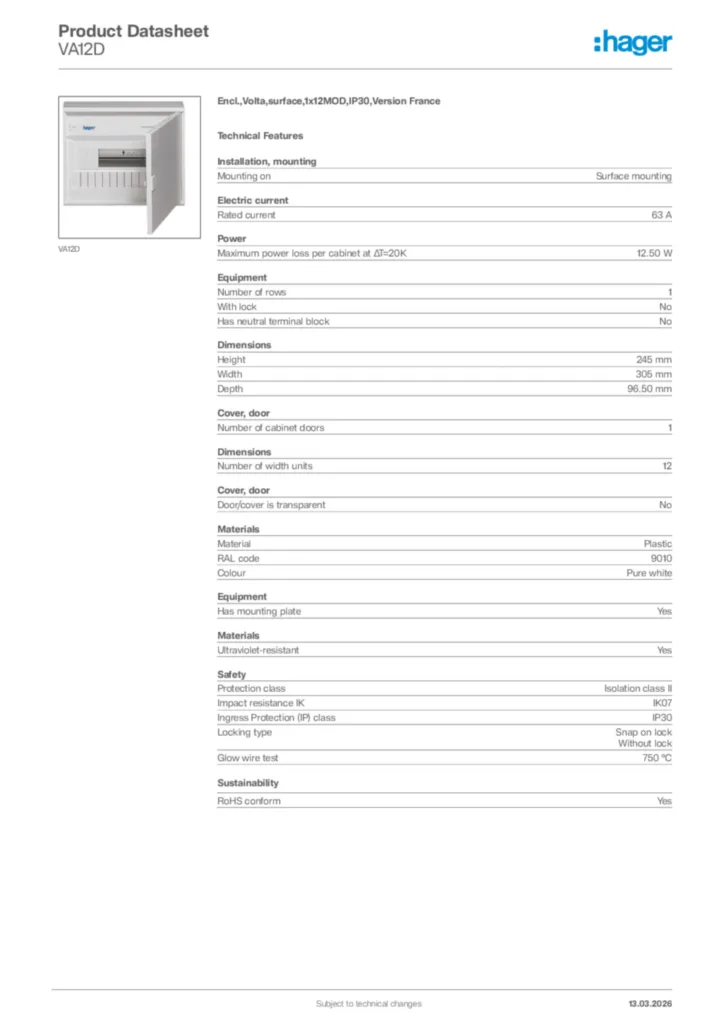

    • Product datasheet

      Image Hager Product data sheet VA12D | Hager Africa

      Hager Product data sheet VA12D

      Encl.,Volta,surface,1x12MOD,IP30,Version France

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2023-08-16

      PDF
      359,72 kB
      Image Declaration of conformity International 2023-08-07 | Hager Africa

      Declaration of conformity International 2023-08-07

      PDF
      366,52 kB
