The Hager Vertical 1xMCCB kit H1600 for Quadro Evo (800x600x188 mm) provides a robust mounting solution for a single MCCB. Rated 630 A, it suits main incomer or feeder protection in commercial/industrial panels. Steel construction with RAL 9010 cover delivers durability and a clean finish. Vertical layout with 12 x 75 mm steps optimises wiring and integration. Class I insulation ensures safe, reliable installation.
EAN
3250616377226
VPE
1 piece
Vertical 1x MCCB kit H1600 Quadro Evo 600x600 630A Steel Cover UC686H
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Mounting accessories 1 product.page.accessories.products-available
product.page.accessories.compatible.title
-
product.page.accessories.referenced_by.title 4 product.page.accessories.products-available
product.page.accessories.title-modal
product.page.accessories.referenced_by.title
Technical characteristics
Dimensions
-
Height600 mm
-
Width800 mm
-
Depth188 mm
-
Number of units1
Equipment
-
Number of rows0
Capacity
-
Number of modules0
Safety
-
Protection classIsolation class I
Materials
-
MaterialSteel
-
RAL code9010
-
Product colourPure white
Cover, door
-
Cabinet door/coverCover
Internal use only
-
Number of 75 mm steps in height per distribution panel12
Electric current
-
Rated current IN630 A
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

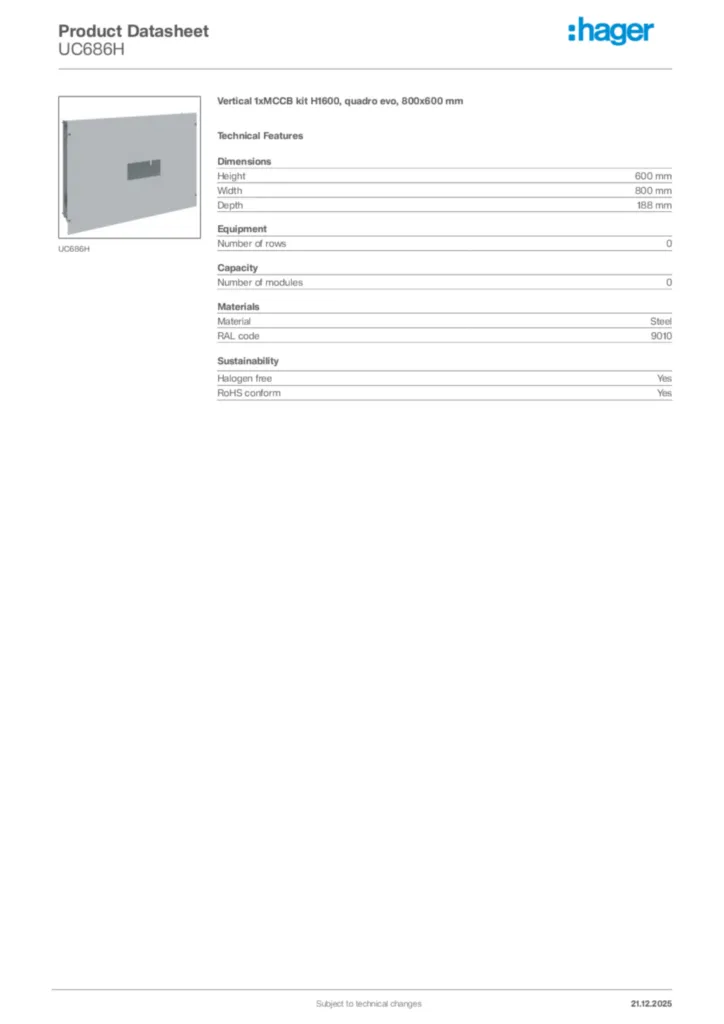

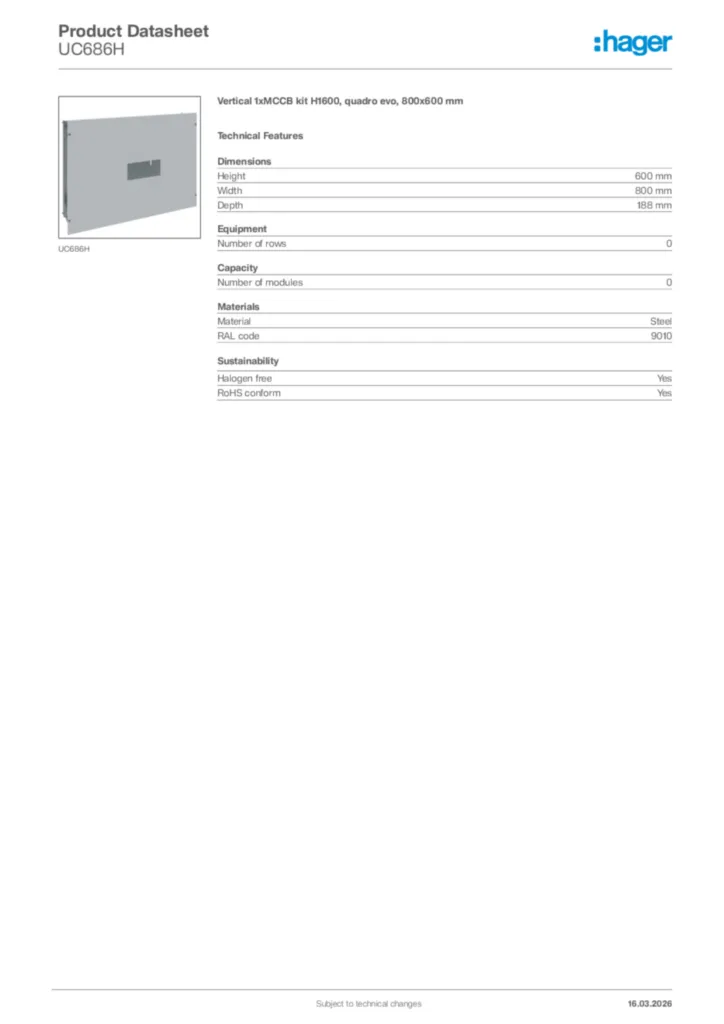

Hager Product data sheet UC686H
Vertical 1xMCCB kit H1600, quadro evo, 800x600 mm
