The Hager Quadro.system MCCB horizontal kit for H3+ P630 (800×300×200 mm) enables quick, tidy mounting of the breaker with RCB (rear connection box) for safe rear terminations. Made of robust steel, IP30, insulation class II, it ensures reliable protection in indoor panels. Pure white (RAL 9010) finish matches boards, while 12 × 75 mm height steps offer flexible layout and optimal space use in distribution systems.
EAN
3250616377905
VPE
1 piece
Vertical kit 3x4P/3x3P MCCB Quadro H3+ P630 800x400x200 IP30 Class II UC483PR
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Hinge for distribution systems 1 product.page.accessories.products-available
product.page.accessories.compatible.title
-
product.page.accessories.referenced_by.title 6 product.page.accessories.products-available
product.page.accessories.referenced_by.title
-
FM309Floor standing steel enclosure, Quadro5, 2010x900x260 mm
-
FM308Floor standing steel enclosure, Quadro5, 1860x900x260 mm
-
FM307Floor standing steel enclosure, Quadro5, 1710x900x260 mm
-
FM317Floor standing steel enclosure, Quadro5, 1710x900x400 mm
-
FM318Floor standing steel enclosure, Quadro5, 1860x900x400 mm
-
FM319Floor standing steel enclosure, Quadro5, 2010x900x400 mm
Technical characteristics
Dimensions
-
Height300 mm
-
Width800 mm
-
Depth200 mm
Safety
-
Ingress Protection (IP) classIP30
-
Protection classIsolation class II
Materials
-
MaterialSteel
-
RAL code9010
-
Product colourPure white
Internal use only
-
Number of 75 mm steps in height per distribution panel12
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

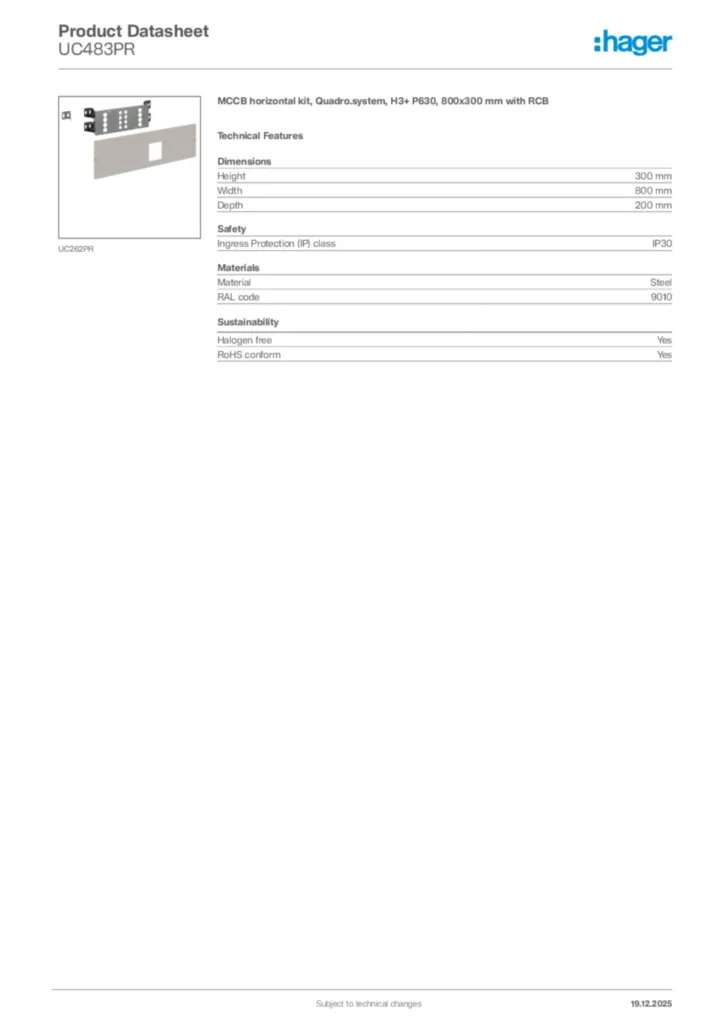

Hager Product data sheet UC483PR
MCCB horizontal kit, Quadro.system, H3+ P630, 800x300 mm with RCB
PDF -
ProductECDeclaration
Declaration of conformity en-GB 2026-04-01
PDF538,80 kB
Declaration of conformity en-GB 2026-04-01
PDF539,93 kB
Declaration of conformity en-GB 2026-04-02
PDF506,23 kB
Declaration of conformity en-GB 2026-04-02
PDF503,38 kB
More documentation
