The Hager MCCB Vertical Kit Quadro Evo for H3+ P630 enables clean vertical mounting of 630 A MCCBs in Quadro Evo panels. Compatible with 348×398 mm cutouts, it features robust steel construction (RAL 9010, pure white), Class I protection, and a cover for safe, tidy integration. Compact (400×350×188 mm), it streamlines internal installs with 4×75 mm height steps for precise alignment.
EAN
3250616378483
VPE
1 piece
Vertical kit MCCB Quadro Evo H3+ P630 3x4P/3x3P 630A 798x398 mm UC434PN
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Mounting accessories 1 product.page.accessories.products-available
product.page.accessories.compatible.title
-
product.page.accessories.referenced_by.title 3 product.page.accessories.products-available
product.page.accessories.title-modal
product.page.accessories.referenced_by.title
Technical characteristics
Dimensions
-
Height400 mm
-
Width350 mm
-
Depth188 mm
-
Number of units1
Equipment
-
Number of rows0
Capacity
-
Number of modules0
Safety
-
Protection classIsolation class I
Materials
-
MaterialSteel
-
RAL code9010
-
Product colourPure white
Cover, door
-
Cabinet door/coverCover
Internal use only
-
Number of 75 mm steps in height per distribution panel4
Electric current
-
Rated current IN630 A
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

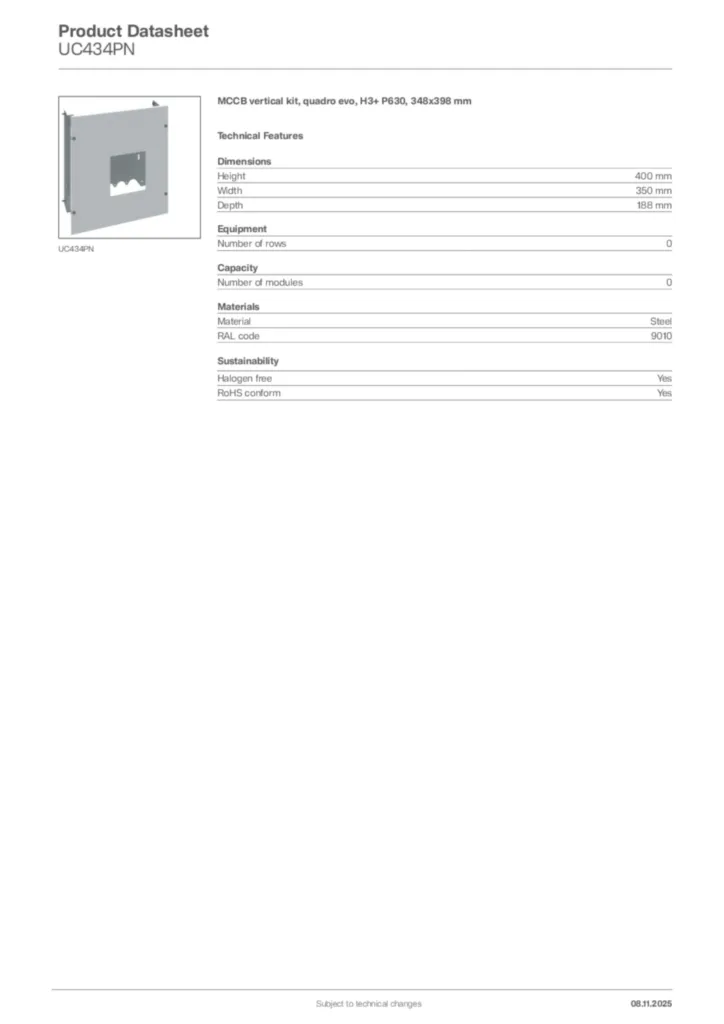

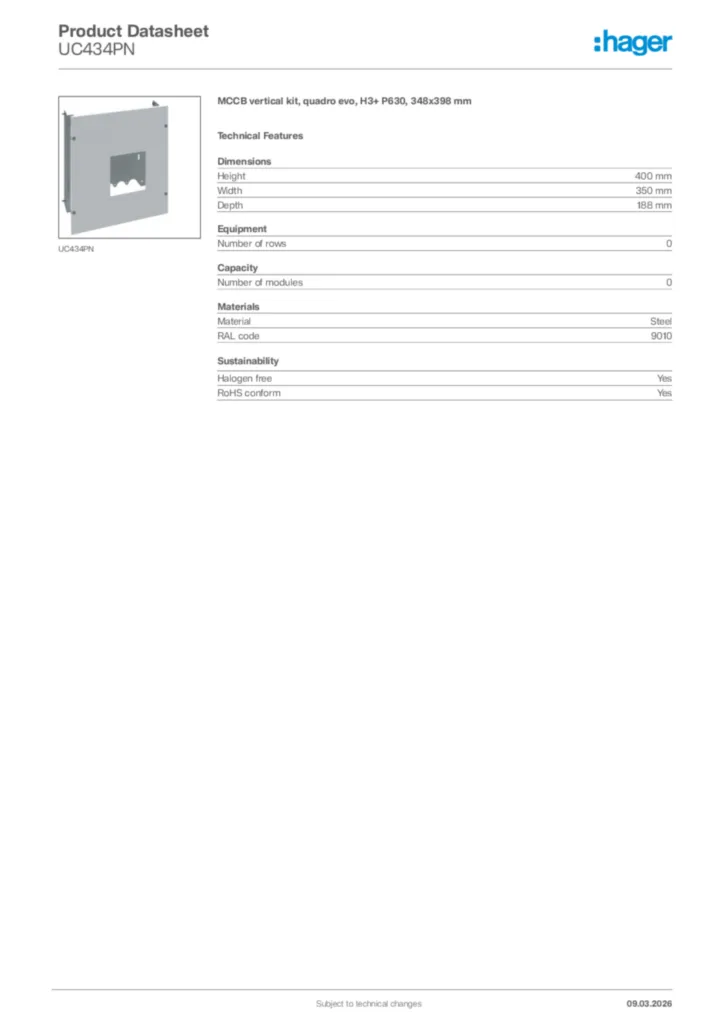

Hager Product data sheet UC434PN
