Output module 16-fold 16a c-load adapted TYMS616D

Name: TYMS616D
Brand: Hager
SKU: TYMS616D

EAN

3250610050064

Packaging

1 Piece

Technical properties
Environmental value
Documentations
More products

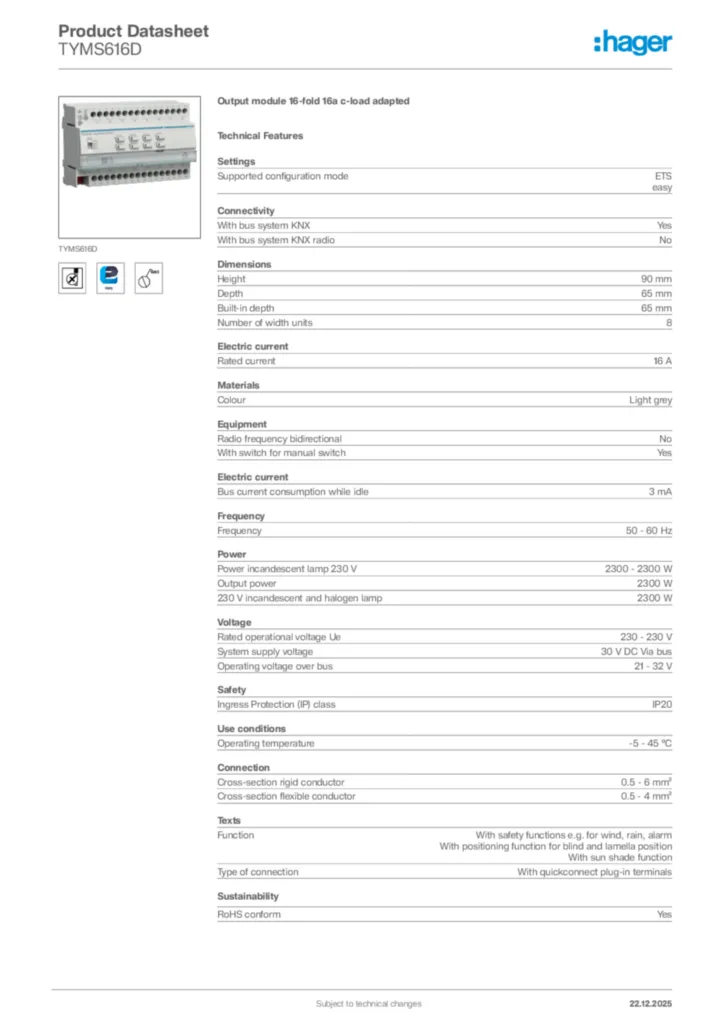

Download the data sheet

Technical properties

With bus system KNX

Yes
With bus system KNX radio

No

Supported configuration mode

ETS, easy

Height

90 mm
Depth

65 mm
Built-in depth

65 mm
Number of width units

8

Colour

Light grey

Radio frequency bidirectional

No
With switch for manual switch

Yes

Rated current

16 A
Bus current consumption while idle

3 mA

Frequency

50 - 60 Hz

Power incandescent lamp 230 V

2300 - 2300 W
Output power

2300 W
230 V incandescent and halogen lamp

2300 W

Rated operational voltage Ue

230 - 230 V
System supply voltage

30 V DC Via bus
Operating voltage over bus

21 - 32 V

Ingress Protection (IP) class

IP20

Operating temperature

-5 - 45 °C

Cross-section rigid conductor

0.5 - 6 mm²
Cross-section flexible conductor

0.5 - 4 mm²

Function

With safety functions e.g. for wind, rain, alarm, With positioning function for blind and lamella position, With sun shade function
Type of connection

With quickconnect plug-in terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
