The Hager impulse pushbutton with 1 NO + 1 NC contact and integrated red 230 V indicator controls and signals circuits in residential or commercial panels. Rated 16 A with momentary action, it suits lighting or automation commands. Its compact 1-module (17.5 mm) design saves space. Ui 250 V, Ue 230 V. Dual contacts enable flexible start/stop or interlock wiring, while the red lamp provides clear status indication.

EAN

3250615722027

Packaging

Switches, push buttons and LED indicator lights

Red LED indicator 230V AC 1 Module screw terminal IP20 SVN452

Technical properties
Environmental value
Documentations
More products

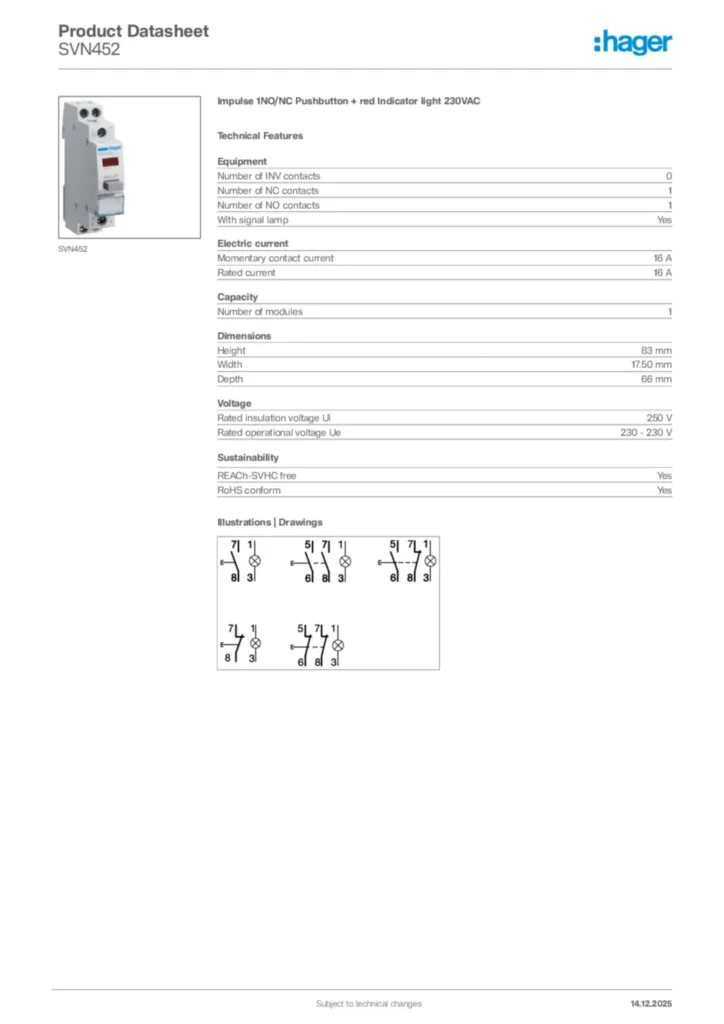

Download the data sheet

Technical properties

Number of INV contacts

0
Number of NC contacts

1
Number of NO contacts

1
With signal lamp

Yes

Momentary contact current

16 A
Rated current

16 A

Number of modules

1

Height

83 mm
Width

17.50 mm
Depth

66 mm

Rated insulation voltage Ui

250 V
Rated operational voltage Ue

230 - 230 V

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
