2 pole Changeoverswitch 63A I-0-II SF263

EAN
3250615561008
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

2 pole Changeoverswitch 63A I-0-II

SF263

  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Technical properties

Archi­tec­ture
  • Number of poles
    2
  • Type of pole
    2P
Elec­tric current
  • Rated current
    63 A
  • Rated condi­tional short-­cir­cuit current Icc with gl-gG fuses
    6 kA
Install­a­tion, mounting
  • Nominal tight­ening torque
    2.90 - 2.90 Nm
Voltage
  • Rated oper­a­tional voltage Ue
    230 - 230 V
  • Type voltage supply
    AC
  • Rated insu­la­tion voltage Ui
    500 V
  • Rated impulse with­stand voltage Uimp
    4000 V
Capa­city
  • Number of modules
    4
Safety
  • Ingress Protec­tion (IP) class
    IP20
Frequency
  • Frequency
    50 - 60 Hz
Dimen­sions
  • Height
    90 mm
  • Width
    71.50 mm
  • Depth
    72 mm
Equip­ment
  • Number of NO contacts
    0
  • Number of NC contacts
    0
Use condi­tions
  • Oper­ating temper­ature
    -25 - 50 °C
  • Stor­age/trans­port temper­ature
    -40 - 80 °C
Connec­tion
  • Cross-sec­tion flex­ible conductor
    16 mm²
  • Cross-sec­tion rigid conductor
    25 mm²
Endur­ance
  • Number of mech­an­ical oper­a­tions
    100000
  • Elec­trical durab­ility at nominal load in AC21 in oper­ating cycles
    5000
Power
  • Total power loss under IN
    3.60 W

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

2-pole, 63A Modular Switch
PDF
2,89 MB
Hager REACH declaration SF263
PDF
Hager RoHS report SF263
PDF

Downloads

  • Image SF263 | Hager Africa

    Product Image SF263

  • Product datasheet

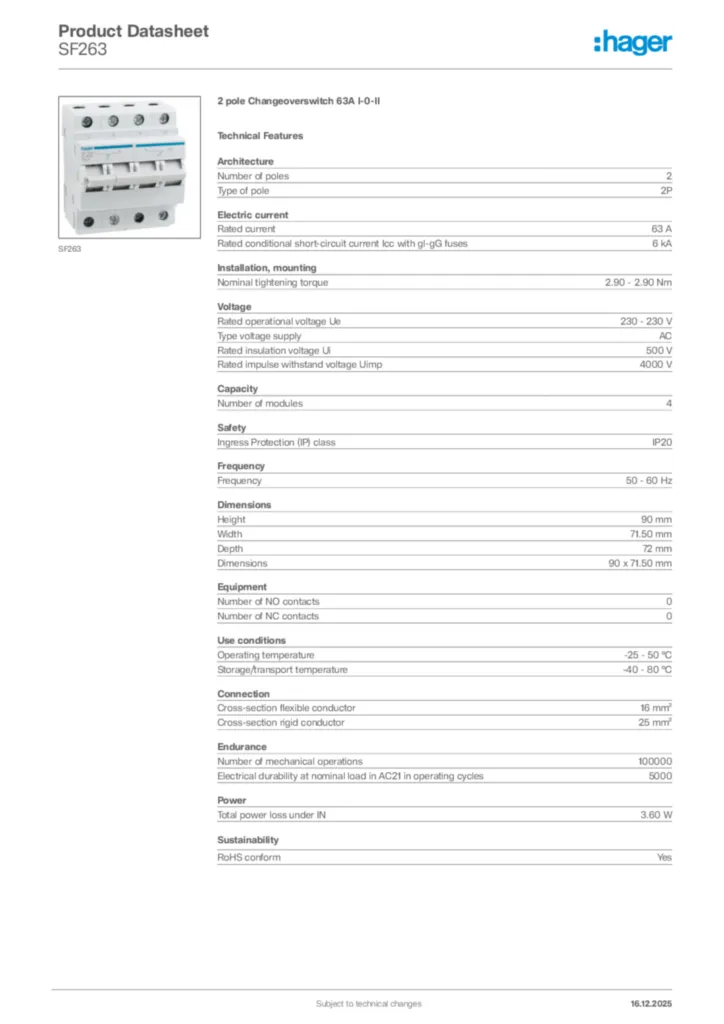

    Image Hager Product data sheet SF263 | Hager Africa
