The Hager 2-pole 16A modular switch with LED indicator provides safe switching and isolation of 230 V AC circuits. Compact 1‑module (17.5 mm) design with screw terminals for 1.5-16 mm² conductors. Rated AC21/AC22 16 A, Ui 440 V, Uimp 4 kV; Icm 0.33 kA, Inc 3 kA with 50 A gG. IP20, 50-60 Hz. High endurance (200k mechanical/25k electrical). Ideal for lighting and small loads with clear status indication.

EAN

3250615511720

Packaging

1 Piece

Switches, push buttons and LED indicator lights

Modular Switch 1P 63A AC21/AC22 230V 1 Module DIN rail SBB216

Accessories
Technical properties
Environmental value
Documentations
More products

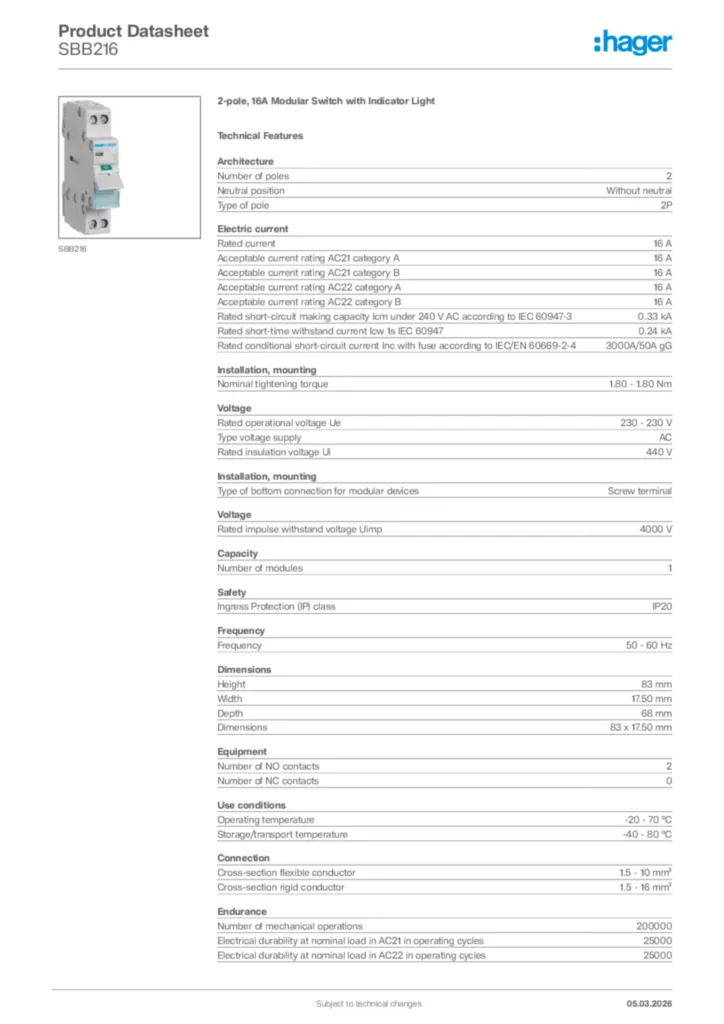

Download the data sheet

Complete your system

Auxiliary device for distribution board devices 1 products available

Technical properties

Number of poles

2
Type of pole

2P

Rated current

16 A
Acceptable current rating AC21 category A

16 A
Acceptable current rating AC21 category B

16 A
Acceptable current rating AC22 category A

16 A
Acceptable current rating AC22 category B

16 A
Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-3

0.33 kA
Rated short-time withstand current Icw 1s IEC 60947

0.24 kA
Rated conditional short-circuit current Inc with fuse according to IEC/EN 60669-2-4

3000A/50A gG

Nominal tightening torque

1.80 - 1.80 Nm
Type of bottom connection for modular devices

Screw terminal

Rated operational voltage Ue

230 - 230 V
Type voltage supply

AC
Rated insulation voltage Ui

440 V
Rated impulse withstand voltage Uimp

4000 V

Number of modules

1

Ingress Protection (IP) class

IP20

Frequency

50 - 60 Hz

Height

83 mm
Width

17.50 mm
Depth

68 mm

Number of NO contacts

2
Number of NC contacts

0

Operating temperature

-20 - 70 °C
Storage/transport temperature

-40 - 80 °C

Cross-section flexible conductor

1.5 - 10 mm²
Cross-section rigid conductor

1.5 - 16 mm²

Number of mechanical operations

200000
Electrical durability at nominal load in AC21 in operating cycles

25000
Electrical durability at nominal load in AC22 in operating cycles

25000

Total power loss under IN

0.90 W
Power loss per pole at In

0.40 W

Type of lamp

LED

Down connection alignment for modular devices

Shifted terminal
Top connection alignment for modular devices

Shifted terminal

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
