    The Hager 1P prong connection terminal 1x35mm² provides reliable single‑pole connections in switchboards. Rated at 100 A, it accommodates up to 35 mm² rigid and 25 mm² flexible conductors via a secure screw terminal. Ideal for distributing power and linking devices, it delivers low-resistance, safe terminations and fast installation for residential and commercial panels.
    EAN
    3250613760038
    VPE
    10 pieces
    • Busbar

    Connection terminal 1P prong 100A Screw terminal 35mm² rigid/25mm² flex KF83A

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Connection terminal 1P prong 100A Screw terminal 35mm² rigid/25mm² flex

    KF83A

    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    Technical characteristics

    Elec­tric current
    • Rated current IN
      100 A
    Connectivity
    • Type of connec­tion
      Screw terminal
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      25 mm²
    • Cross-sec­tion rigid conductor
      35 mm²
    Install­a­tion, mounting
    • Nominal tight­ening torque
      3 - 3 Nm

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    REACH declaration KF83A
    PDF
    RoHS report KF83A
    PDF

    Downloads

    • Image KF83A | Hager UK

      Product Image KF83A

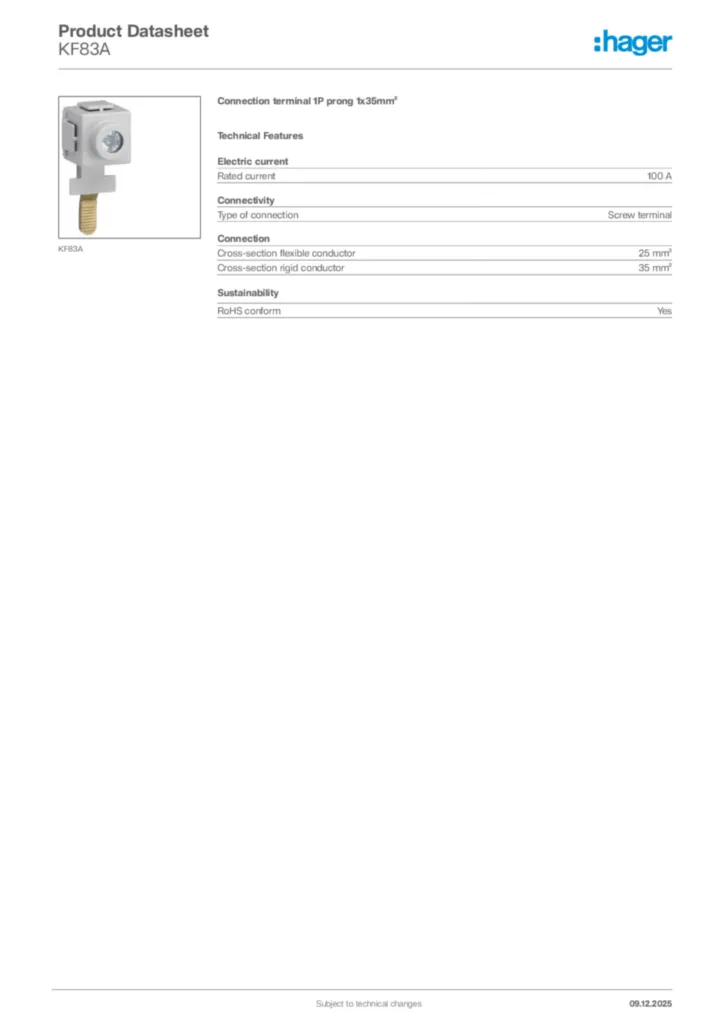

    • GeneratedProductDatasheet

      Image Hager Product data sheet KF83A | Hager UK

      Hager Product data sheet KF83A

      Connection terminal 1P prong 1x35mm²

      PDF

    • ProductECDeclaration

      Image Declaration | Hager UK

      Declaration

      Declaration of conformity International 2022-09-20

      PDF
      342,73 kB
      Image Declaration of conformity en-US 2026-07-15 | Hager UK

      Declaration of conformity en-US 2026-07-15

      PDF
      281,50 kB
    More documentation
