Moulded Case Circuit Breaker X160 4P 40kA 20A I mag 600 HNA021M

EAN
3250613114282
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Moulded Case Circuit Breaker X160 4P 40kA 20A I mag 600

HNA021M

  • Accessories
  • Technical properties
  • Documentations
  • More products

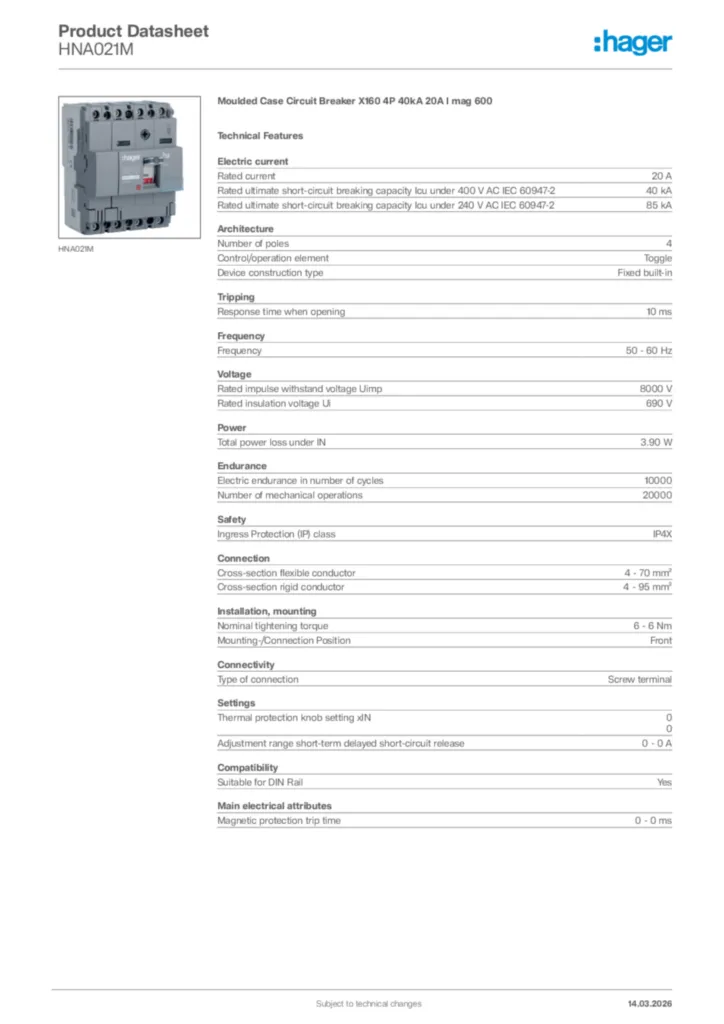

Download the data sheet

Complete your system

Optional accessories

  • See more (32)
    • Shunt release 5 products available
    • Under voltage coil 8 products available
    • Auxil­i­aries contact block 4 products available
    • AOB MCCB type A-HI 2 products available
    • Terminal cover 4 products available
    • Connec­tion Func­tions 4 products available

    Complete your system

    • Shunt release
    • Under voltage coil
    • Auxil­i­aries contact block
    • AOB MCCB type A-HI
    • Terminal cover
    • Connec­tion Func­tions
    • Handle for power circuit breaker
    • Locking inter­locking func­tions
    • Phase separ­a­tion func­tions
    • DIN rail adapter
    • HXA003H

      Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA005H

      Shunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA002H

      Shunt trip 48V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA001H

      Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA004H

      Shunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA055H

      UVR delayed 380-450V AC (x160-P160-x250-P250)
      0.00 €  / *
    • HXA011H

      Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA051H

      UVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA015H

      Undervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA014H

      Undervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA054H

      UVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA053H

      UVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA013H

      Undervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA026H

      Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA021H

      Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA024H

      Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA025H

      Auxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HBA126H

      Electronic earth leakage add-on block 4P 125A Idn adjustable, time delay
      0.00 €  / *
    • HBA128H

      Electronic earth leakage add-on block 4P 125A Sensitivity fix
      0.00 €  / *
    • HYA028H

      Terminal cover for collar terminal x160 4P
      0.00 €  / *
    • HYA026H

      Terminal cover x160 4P short
      0.00 €  / *
    • HYA024H

      Terminal cover x160 4P spreader
      0.00 €  / *
    • HYA022H

      Terminal cover x160 4P long
      0.00 €  / *
    • HYA015H

      Spreader x160 4P collar
      0.00 €  / *
    • HYA013H

      Extended connection x160 4P collar
      0.00 €  / *
    • HYA006H

      Collar terminal x160 Al 4P
      0.00 €  / *
    • HYA012H

      Spreader x160 4P lug
      0.00 €  / *
    • HXA031H

      Extended rotary handle x160
      0.00 €  / *
    • HXA030H

      Direct rotary handle x160
      0.00 €  / *
    • HXA039H

      Padlock (x160-P160-x250-P250-x630)
      0.00 €  / *
    • HYA019H

      Interphase barrier x160 3/4P
      0.00 €  / *
    • HYA033H

      DIN Rail adaptator x160 3P/4P
      0.00 €  / *

    Technical properties

    Elec­tric current
    • Rated current
      20 A
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
      40 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
      85 kA
    Archi­tec­ture
    • Number of poles
      4
    • Control/­op­er­a­tion element
      Toggle
    • Device construc­tion type
      Fixed built-in
    Trip­ping
    • Response time when opening
      10 ms
    Frequency
    • Frequency
      50 - 60 Hz
    Voltage
    • Rated impulse with­stand voltage Uimp
      8000 V
    • Rated insu­la­tion voltage Ui
      690 V
    Power
    • Total power loss under IN
      3.90 W
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      10000
    • Number of mech­an­ical oper­a­tions
      20000
    Safety
    • Ingress Protec­tion (IP) class
      IP4X
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      4 - 70 mm²
    • Cross-sec­tion rigid conductor
      4 - 95 mm²
    Connectivity
    • Type of connec­tion
      Screw terminal
    Settings
    • Thermal protec­tion knob setting xIN
      0, 0
    • Adjust­ment range short-term delayed short-­cir­cuit release
      0 - 0 A
    Compat­ib­ility
    • Suit­able for DIN Rail
      Yes
    Install­a­tion, mounting
    • Nominal tight­ening torque
      6 - 6 Nm
    • Mount­ing-/­Con­nec­tion Posi­tion
      Front
    Main elec­trical attrib­utes
    • Magnetic protec­tion trip time
      0 - 0 ms

    Downloads

    • Image HNA021M | Hager Africa

      Product Image HNA021M

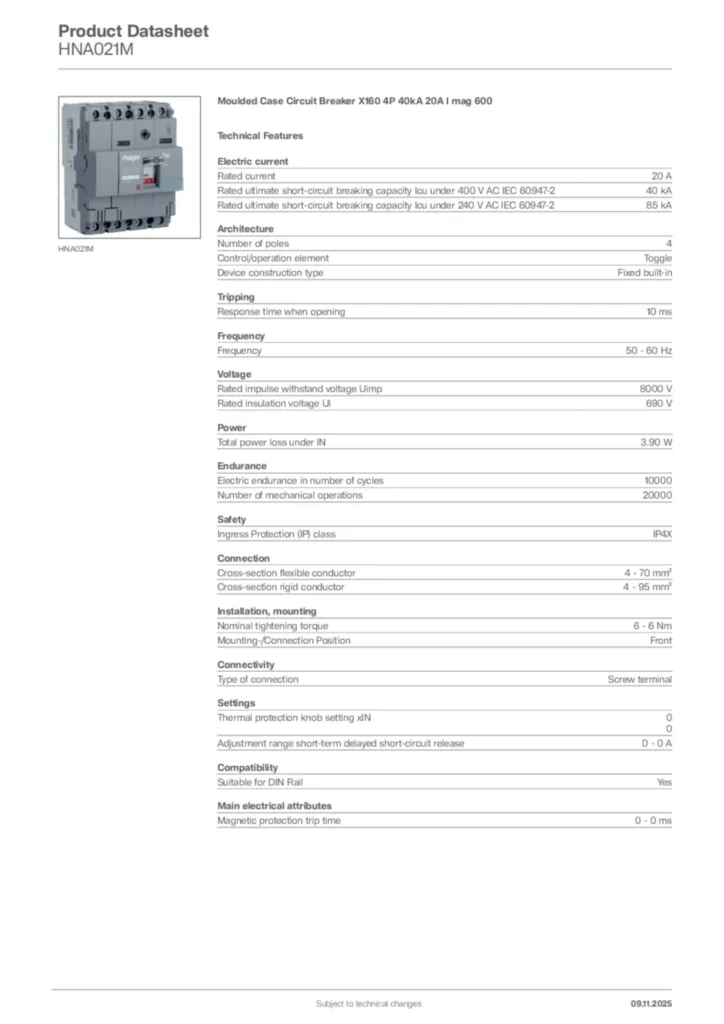

    • Product datasheet
