The Hager MCB 4P C-63A 50kA (6 modules) protects three-phase+neutral circuits from overloads and short circuits in demanding commercial/industrial panels. With 50kA Icu/Icn, 415 V AC rating, C-curve for mixed/inductive loads, and Ui 500 V/Uimp 6 kV, it manages high fault levels. Screw terminals up to 70 mm², -25 to 70°C operation, and 20,000 mechanical operations ensure durable, compact protection.

EAN

3250613232122

Packaging

1 Piece

Miniature circuit breakers (MCB and MCB Multipolar)

MCB 2P 80A 15kA Curve B 415V AC 3 Modules HMX463

Accessories
Technical properties
Environmental value
Documentations
More products

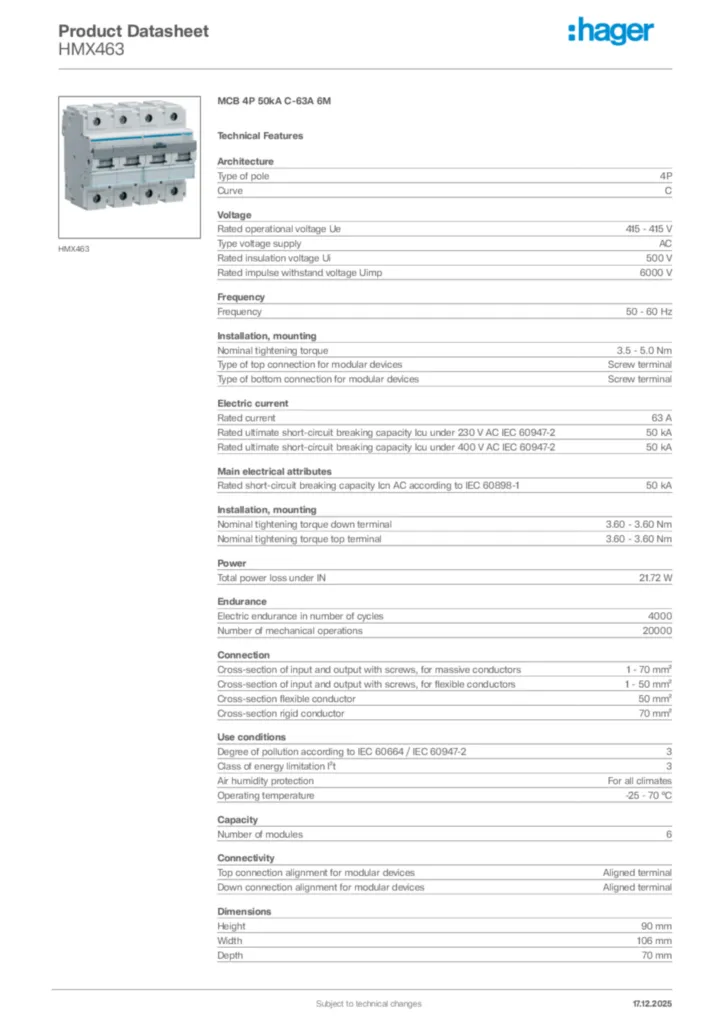

Download the data sheet

Complete your system

AOB 125 A type A-HI 2 products available
AOB 125 A type AC 2 products available

Technical properties

Rated current IN

63 A
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

50 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

50 kA

Curve

C

Number of modules

6

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

50 kA

Nominal tightening torque top terminal

3.60 - 3.60 Nm
Nominal tightening torque down terminal

3.60 - 3.60 Nm
Nominal tightening torque

3.5 - 5.0 Nm
Type of bottom connection for modular devices

Screw terminal
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

415 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 70 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 50 mm²
Cross-section of input with screws, for flexible conductors

1 - 50 mm²
Cross-section of input with screws, for massive conductors

1 - 70 mm²
Cross-section flexible conductor

50 mm²
Cross-section rigid conductor

70 mm²

Ingress Protection (IP) class

IP20

Degree of pollution according to IEC 60664 / IEC 60947-2

3
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Power dissipation at IN

21.72 W

Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

90 mm
Width

106 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
