MCB 2P 15kA B-100A 3M HMB290

Accessories
Technical properties
Environmental value
Documentations
More products

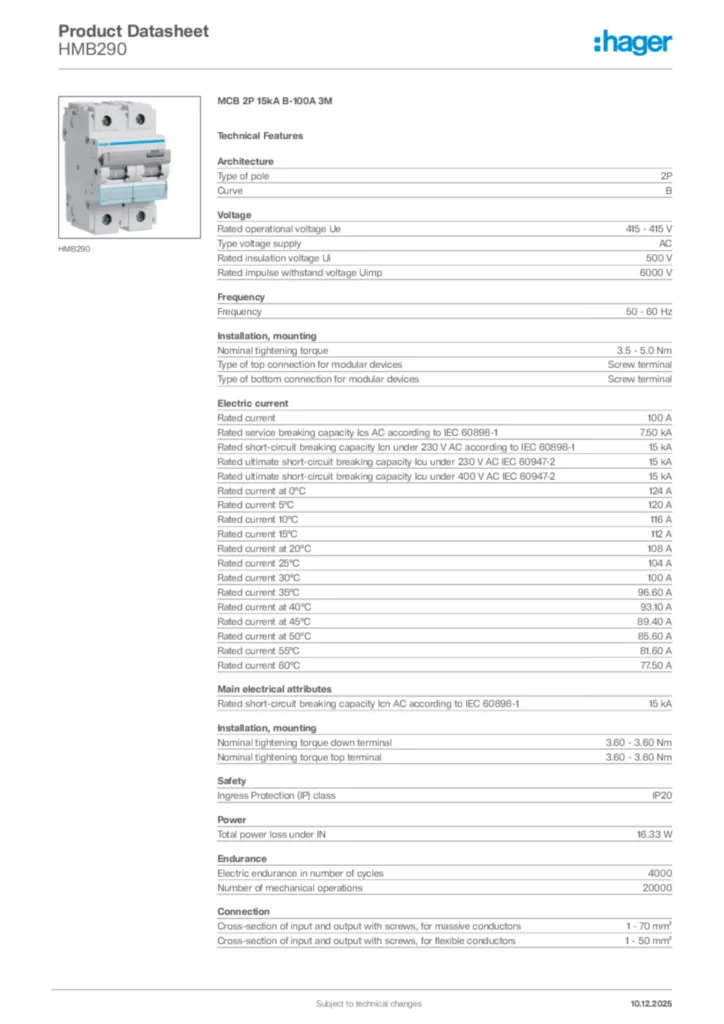

Download the data sheet

Complete your system

AOB 125 A type A-HI 2 products available
AOB 125 A type AC 2 products available

Technical properties

Type of pole

2P

Rated operational voltage Ue

415 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Nominal tightening torque

3.5 - 5.0 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

Screw terminal
Nominal tightening torque down terminal

3.60 - 3.60 Nm
Nominal tightening torque top terminal

3.60 - 3.60 Nm

Rated current

100 A
Rated service breaking capacity Ics AC according to IEC 60898-1

7.50 kA
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

15 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

15 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

15 kA
Rated current at 0°C

124 A
Rated current 5°C

120 A
Rated current 10°C

116 A
Rated current 15°C

112 A
Rated current at 20°C

108 A
Rated current 25°C

104 A
Rated current 30°C

100 A
Rated current 35°C

96.60 A
Rated current at 40°C

93.10 A
Rated current at 45°C

89.40 A
Rated current at 50°C

85.60 A
Rated current 55°C

81.60 A
Rated current 60°C

77.50 A

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

15 kA

Ingress Protection (IP) class

IP20

Total power loss under IN

16.33 W

Electric endurance in number of cycles

4000
Number of mechanical operations

20000

Cross-section of input and output with screws, for massive conductors

1 - 70 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 50 mm²
Cross-section flexible conductor

50 mm²
Cross-section rigid conductor

70 mm²

Degree of pollution according to IEC 60664 / IEC 60947-2

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Number of modules

3

Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

90 mm
Width

53 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
