The Hager modular 3P+N 80A change-over switch enables safe manual transfer between two power sources in three-phase systems. Rated 380-415 V, 50-60 Hz, with Ui 800 V and 8 kV impulse withstand, it offers robustness. Icw 1.5 kA and Icc 50 kA (with gG fuses) enhance fault endurance. Compact 8-mod width with short rotary handle, IP20, interlockable. Handles up to 52 kW AC1 at 400 V. Suits 2.5-35 mm² conductors, -20 to 70 °C.

EAN

3250613140571

Packaging

1 Piece

Modular change-over switch 3P+N 20A 415V 50kA Icc short rotary handle 8 modules HIM408

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical properties
Environmental value
Documentations

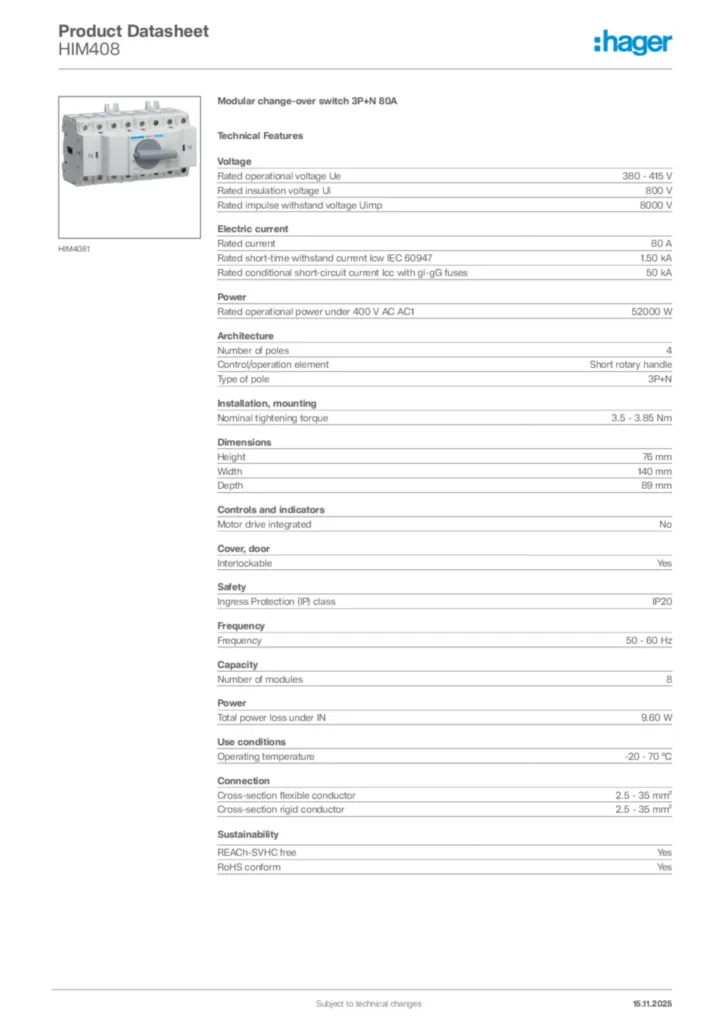

Download the data sheet

Complete your system

Switch operating shaft 3 products available
Terminal cover 1 products available
Door coupling handle for switchgear 1 products available
Auxiliary contact block 2 products available
Accessories/spare parts for low-voltage switch technology 1 products available

Technical properties

Rated operational voltage Ue

380 - 415 V
Rated insulation voltage Ui

800 V
Rated impulse withstand voltage Uimp

8000 V

Rated current

80 A
Rated short-time withstand current Icw IEC 60947

1.50 kA
Rated conditional short-circuit current Icc with gl-gG fuses

50 kA

Rated operational power under 400 V AC AC1

52000 W
Total power loss under IN

9.60 W

Number of poles

4
Control/operation element

Short rotary handle
Type of pole

3P+N

Nominal tightening torque

3.5 - 3.85 Nm

Height

76 mm
Width

140 mm
Depth

89 mm

Motor drive integrated

No

Interlockable

Yes

Ingress Protection (IP) class

IP20

Number of modules

8

Frequency

50 - 60 Hz

Operating temperature

-20 - 70 °C

Cross-section flexible conductor

2.5 - 35 mm²
Cross-section rigid conductor

2.5 - 35 mm²

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
