The Hager h3 x160 TM ADJ 3P3D 125A 25kA MCCB provides reliable overload and short‑circuit protection for commercial and industrial feeders. Rated 125 A, with Icu 25 kA at 400 V (35 kA at 240 V) and Ics up to 25 kA, it features an adjustable thermal setting (0.63/0.8/1 x In) for precise coordination. 3-pole, 220-415 V, 50-60 Hz, IP4X, screw terminals, and high endurance (10k electrical/20k mechanical) in a compact form.

EAN

3250613130787

Packaging

1 Piece

Moulded case circuit breakers

Moulded Case Circuit Breaker 3P 125A 25kA TM Fixed, 415V Ue IP4X HHA125U

Accessories
Technical properties
Documentations
More products

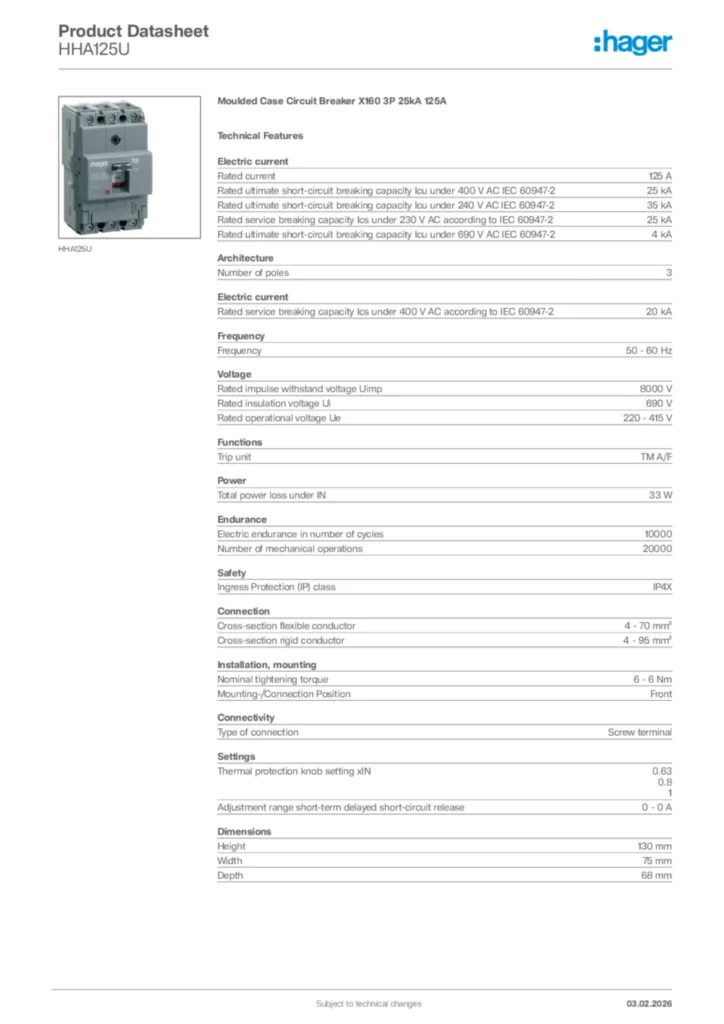

Download the data sheet

Complete your system

Auxiliaries contact block 4 products available
Shunt release 5 products available
Under voltage coil 8 products available
Connection Functions 4 products available
AOB MCCB type A-HI 2 products available
Terminal cover 4 products available

Technical properties

Rated current IN

125 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

35 kA
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-2

4 kA
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2

20 kA
