The Hager X160 moulded case circuit breaker 3P 63A provides reliable protection for distribution and motor circuits. Icu 25kA at 400V (35kA at 240V), Ics 20kA, with 10 ms fault clearing. TM F/F thermal‑magnetic trip. Ue 220-415V, Ui 690V, Uimp 8kV, 50/60 Hz. IP4X. Screw terminals 4-95 mm², front mounting, DIN-rail compatible. Durable: 10,000 electrical/20,000 mechanical operations.

EAN

3250613136215

Packaging

1 Piece

Moulded case circuit breakers

Miniature Circuit Breaker 3P 32A B Curve 20kA 3 Modules 415V AC HHA063Z

Accessories
Technical properties
Documentations
More products

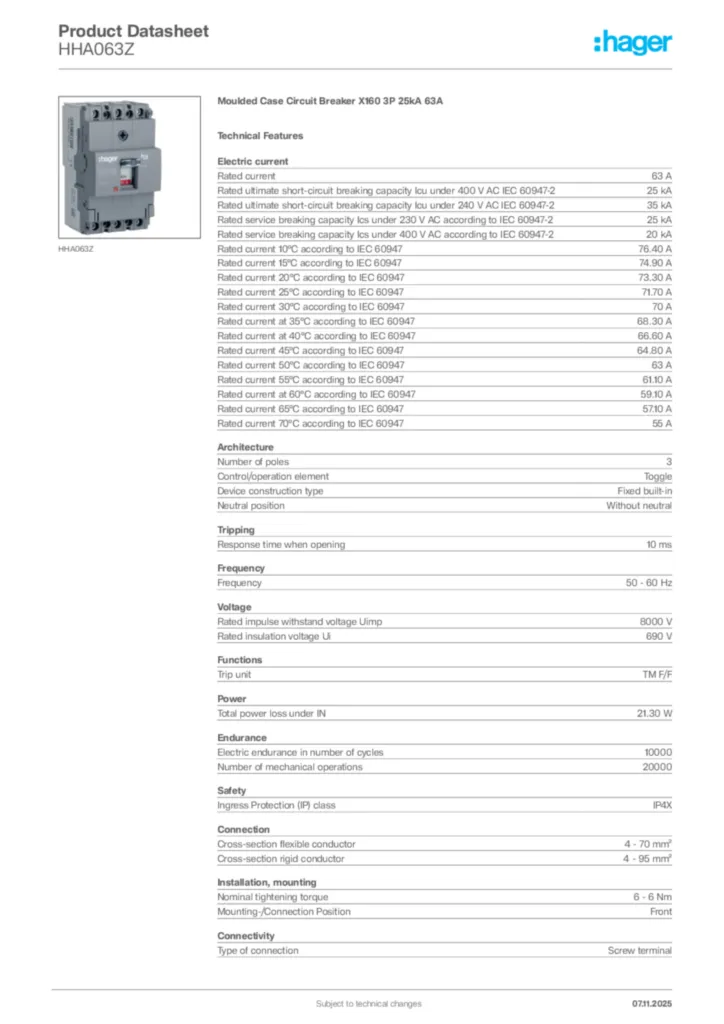

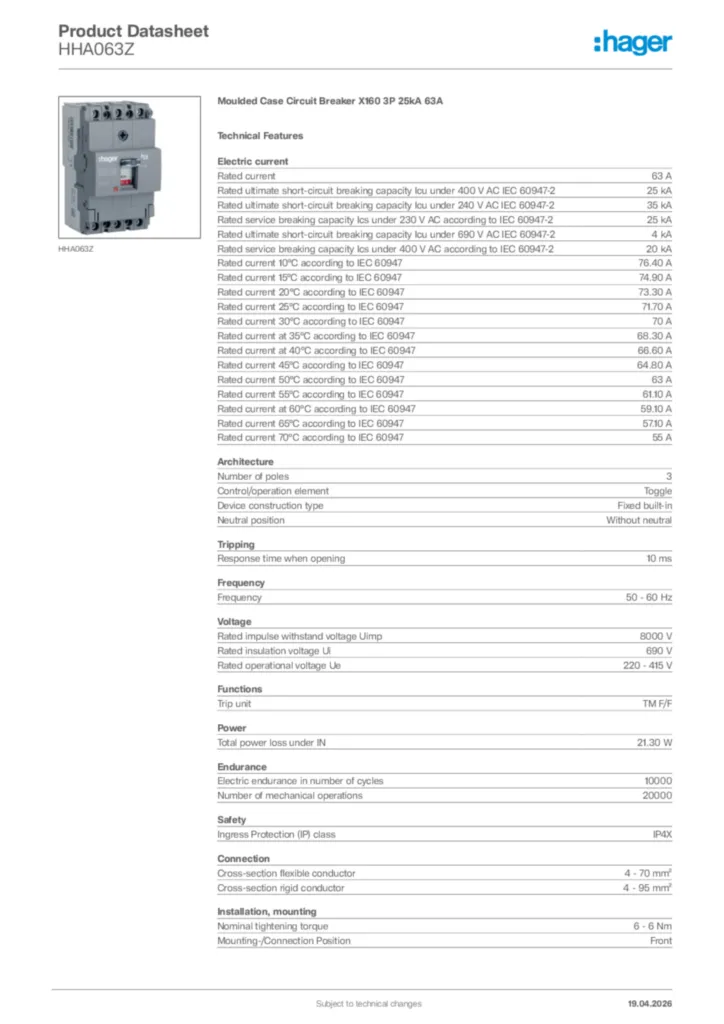

Download the data sheet

Complete your system

Auxiliaries contact block 4 products available
Shunt release 5 products available
Under voltage coil 8 products available
AOB MCCB type A-HI 2 products available
Terminal cover 4 products available
Connection Functions 4 products available

Technical properties

Rated current IN

63 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

35 kA
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-2

4 kA
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2

20 kA
Rated current at 10°C according to IEC 60947

76.40 A
Rated current at 15°C according to IEC 60947

74.90 A
Rated current at 20°C according to IEC 60947

73.30 A
Rated current at 25°C according to IEC 60947

71.70 A
Rated current at 30°C according to IEC 60947

70 A
Rated current at 35°C according to IEC 60947

68.30 A
Rated current at 40°C according to IEC 60947

66.60 A
Rated current at 45°C according to IEC 60947

64.80 A
Rated current at 50°C according to IEC 60947

63 A
Rated current at 55°C according to IEC 60947

61.10 A
Rated current at 60°C according to IEC 60947

59.10 A
Rated current at 65°C according to IEC 60947

57.10 A
Rated current at 70°C according to IEC 60947

55 A
