Hager in the world
The Hager X160 3P 63A 25kA Moulded Case Circuit Breaker protects three-phase circuits from overloads and short circuits. With Icu 25kA at 400V (35kA at 240V) and Ics up to 20kA, it suits commercial and industrial feeders and panels. TM A/F thermal‑magnetic unit with 0.63-1xIn setting optimizes protection. Rated Ue 220-415V, Ui 690V, Uimp 8kV. IP4X, screw terminals for 4-95 mm², compact 130×75×68 mm.
EAN
3250613130756
Packaging
1 Piece
MCCB h3+ 4P 160A Icu 70kA LSNI 690V Fixed HHA063U
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliaries contact block 4 products available -
Shunt release 5 products available -
Under voltage coil 8 products available -
Connection Functions 4 products available -
AOB MCCB type A-HI 2 products available -
Terminal cover 4 products available
Complete your system
-
HXA003H
Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
-
HXA001HShunt trip 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA055H
UVR delayed 380-450V AC (x160-P160-x250-P250)
-
HXA011HUndervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
Technical properties
Electric current
-
Rated current IN63 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-225 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-235 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-225 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-24 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-220 kA
Architecture
-
Number of poles3
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui690 V
-
Rated operational voltage Ue220 - 415 V
Functions
-
Trip unitTM A/F
Power
-
Power dissipation at IN30 W
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations20000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor4 - 70 mm²
-
Cross-section rigid conductor4 - 95 mm²
Installation, mounting
-
Nominal tightening torque6 - 6 Nm
-
Mounting-/Connection PositionFront
Connectivity
-
Type of connectionScrew terminal
Settings
-
Thermal protection knob setting xIN0.63, 0.8, 1
-
Adjustment range short-term delayed short-circuit release0 - 0 A
Dimensions
-
Height130 mm
-
Width75 mm
-
Depth68 mm
Downloads
-
Product datasheet

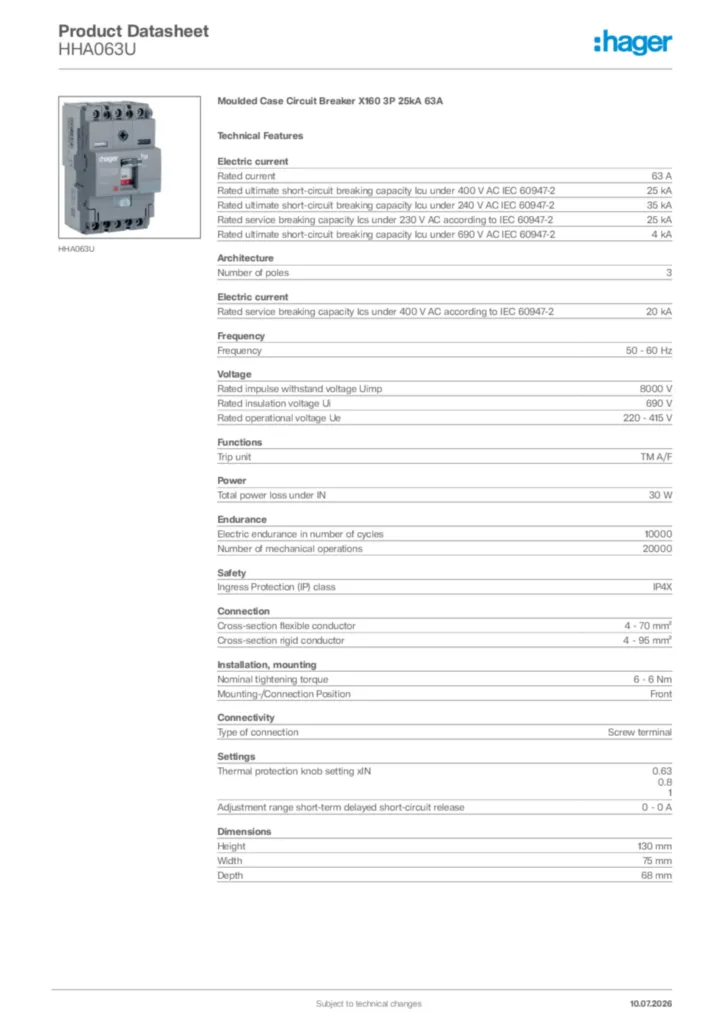

Hager Product data sheet HHA063U
Moulded Case Circuit Breaker X160 3P 25kA 63A
PDF -
Installation manual
Installation manual International 2021-06-07
PDF8,51 MB
Installation manual International 2021-06-07
PDF12,00 MB -
Declaration of conformity
Declaration of conformity en-US 2026-07-14
PDF346,59 kB
UKCA Declaration of Conformity
Declaration of conformity en-GB 2025-03-20
PDF435,49 kB
More documentation
Discover more of this product range
-
5
-
1
HMW631NRMoulded Case Circuit Breaker h3+ P630 Energy 4P4D N0-50-100% 630A 50kA FTC -
2
HMW401NRMoulded Case Circuit Breaker h3+ P630 Energy 4P4D N0-50-100% 400A 50kA FTC -
3
HMW400NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 400A 50kA FTC -
4
HMW250NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 250A 50kA FTC -
5
HMT251NRMoulded Case Circuit Breaker h3+ P250 Energy 4P4D N0-50-100% 250A 50kA FTC
