The Hager X160 3P 40A moulded case circuit breaker safeguards distribution circuits in commercial and industrial panels. Thermal‑magnetic TM A/F trip with adjustable thermal setting 0.63-1×In enhances selectivity. Ue 220-415 V, Ui 690 V, Uimp 8 kV. Breaking capacity: Icu 35 kA (240 V), 25 kA (400 V); Ics 25/20 kA. IP4X. Compact 130×75×68 mm. Screw terminals for 4-95 mm². Endurance: 10k electrical, 20k mechanical cycles.

EAN

3250613130749

Packaging

1 Piece

Moulded case circuit breakers

Moulded Case Circuit Breaker X160 1P 32A 25kA TM F/F 220-240V HHA040U

Accessories
Technical properties
Documentations
More products

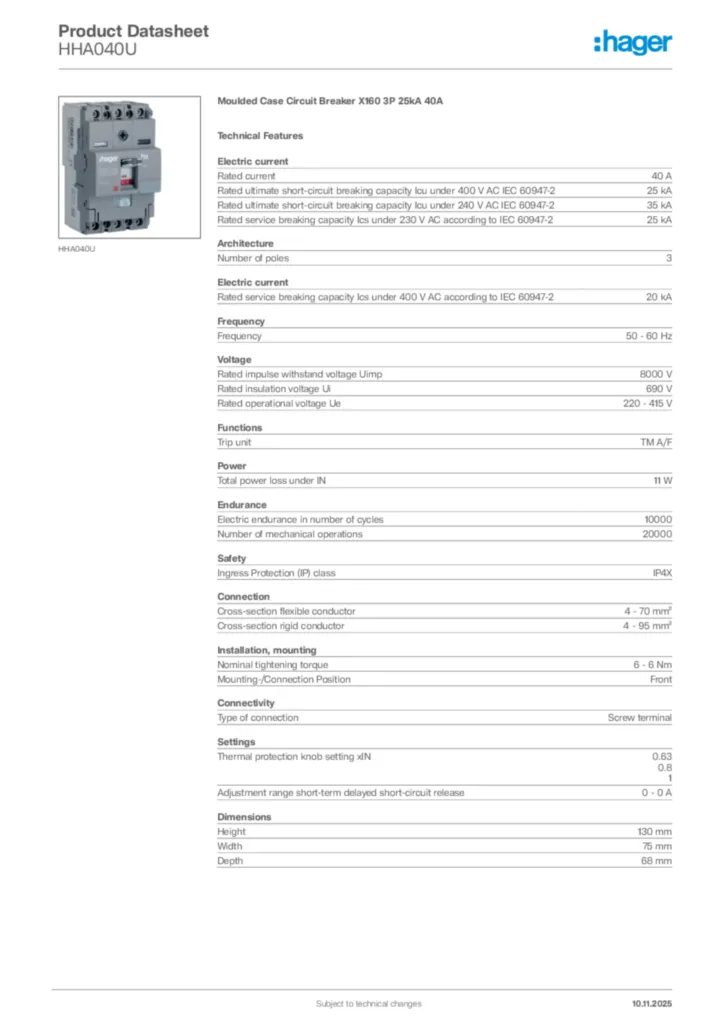

Download the data sheet

Complete your system

Auxiliaries contact block 4 products available
Shunt release 5 products available
Under voltage coil 8 products available
Connection Functions 4 products available
AOB MCCB type A-HI 2 products available
Terminal cover 4 products available

Technical properties

Rated current IN

40 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

35 kA
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-2

4 kA
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2

20 kA
