The Hager 4P 160A visible-break load break switch ensures safe isolation and dependable switching for three-phase systems. Rated AC21/AC22/AC23 to 160A (AC23A 125A) with 7 kA making and 4 kA/1s withstand per IEC 60947-3, it suits main, maintenance, or safety switch duties. Ui 800 V, Uimp 8 kV, Ue 380-415 V. Interlockable IP20 design, short rotary handle, and screw terminals up to 70 mm² for easy panel installation.
EAN
3250613140427
Packaging
1 Piece
Load break switch 3P 400A Icw 9kA Ui 1000V Long rotary handle HAE416
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliary contact block 2 products available -
Switch operating shaft 3 products available -
Terminal cover 1 products available -
Door coupling handle for switchgear 1 products available
Complete your system
Technical properties
Electric current
-
Rated current IN160 A
-
Acceptable current rating AC21160 A
-
Acceptable current rating AC21 category B160 A
-
Acceptable current rating AC22 category B160 A
-
Acceptable current rating AC23 category A125 A
-
Acceptable current rating AC23 category B160 A
-
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-37 kA
-
Rated short-time withstand current Icw 1s IEC 609474 kA
-
Rated short-time withstand current Icw IEC 609474 kA
Connection
-
Cross-section rigid conductor70 mm²
-
Cross-section flexible conductor70 mm²
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8000 V
-
Rated operational voltage Ue380 - 415 V
Power
-
Power loss per pole at In7.50 W
-
Power dissipation at IN30 W
-
Rated operational power under 400 V AC AC1105000 W
-
Rated operational power under 400 V AC AC2356000 W
Equipment
-
Motor drive optionalNo
-
Number of auxiliary contacts as change-over contact0
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
Use conditions
-
Operating temperature-20 - 70 °C
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP20
Architecture
-
Type of pole4P
-
Number of poles4
-
Control/operation elementShort rotary handle
Frequency
-
Frequency50 - 60 Hz
Functions
-
Is reversing switchNo
-
Version as emergency stop installationNo
-
Version as main switchYes
-
Version as maintenance/service switchYes
-
Version as safety switchYes
-
Version as switch disconnector compactYes
Capacity
-
Number of modules7.71
Installation, mounting
-
Nominal tightening torque4 - 4.4 Nm
Connectivity
-
Type of connectionScrew terminal
Dimensions
-
Height84 mm
-
Width135 mm
-
Depth132 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

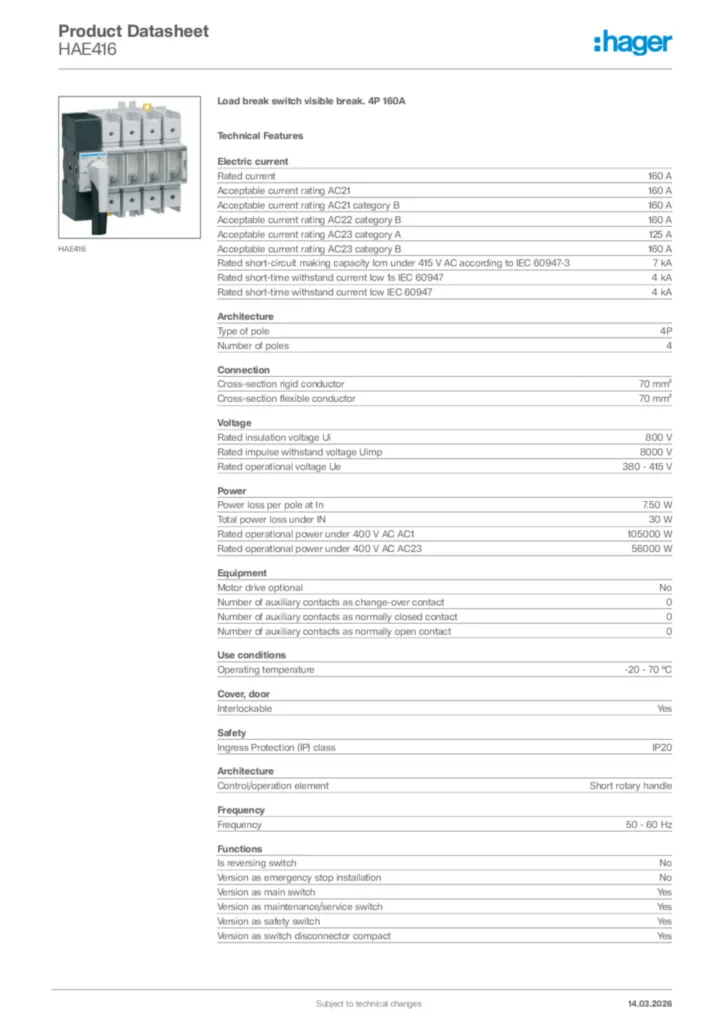

Product datasheet

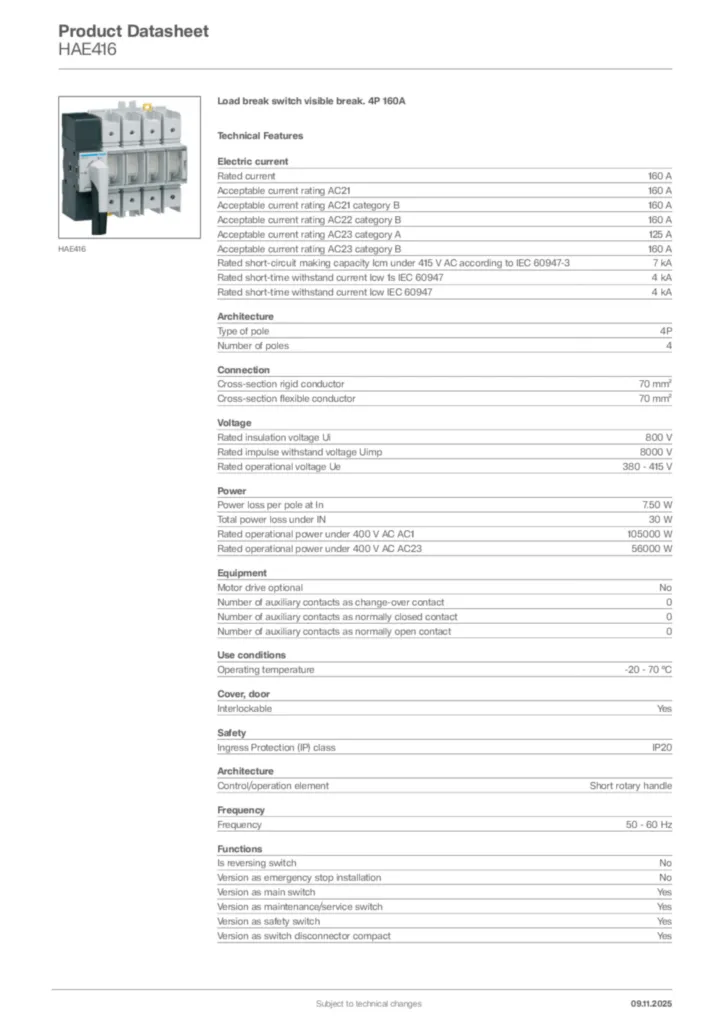

Hager Product data sheet HAE416
Load break switch visible break. 4P 160A
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-04-13
PDF835,39 kB
Declaration of conformity en-GB 2026-07-22
PDF317,86 kB
EU Declaration of conformity
Declaration of conformity en-GB 2025-11-21
